PISO-CPM100U-T CANopen Master Universal PCI Board, 1 Port
Single-port intelligent CANopen master for universal PCI slots, with CiA 301 v4.02 support, onboard firmware and a 5-pin screw terminal connector. Suited to CANopen motion control applications.
- One CANopen master port with CiA 301 v4.02 support and node IDs 1 to 127
- Onboard microcontroller runs CANopen firmware so critical processes are handled on the card
- Node Guarding and Heartbeat Consumer protocols, with event triggers for EMCY, Node Guarding and Heartbeat events
- Event-triggered, remote-requested, cyclic and acyclic SYNC PDO modes with dynamic PDO mapping
- Single-byte PDO output and segmented SDO protocol for flexible data handling
- Network scan, master listen mode, EDS file support and multi-master architecture
€443.00 per piece
| 1–9 pcs | €443.00 | |
|---|---|---|
| 10–30 pcs | €430.00 | −3 % |
| 31+ pcs | €421.00 | −5 % |
Product information "PISO-CPM100U-T CANopen Master Universal PCI Board, 1 Port"

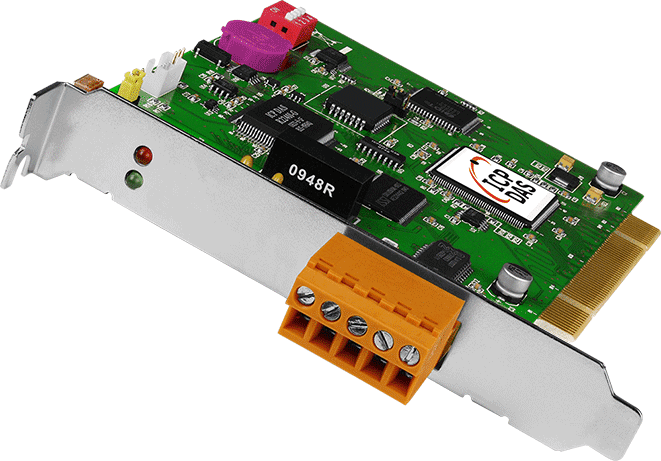

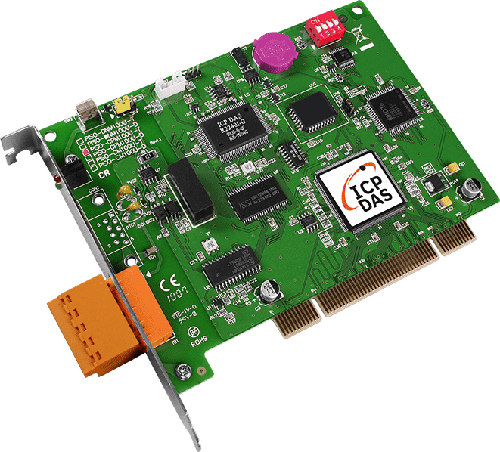

PISO-CPM100U-T CR is an active CANopen master card for PCI-equipped host computers, giving engineers a single CAN channel with its own processing. The NXP SJA1000T controller and 82C250 transceiver handle bus arbitration and error detection, while a 16-bit onboard microcontroller running a real-time operating system manages message handling, so time-critical CANopen tasks can run on the card itself rather than on the host.
Host applications interact with the card through the CANopen library and memory mapping, and the board supports standard CANopen network functions including network scanning, master listen mode, node guarding and heartbeat monitoring, PDO and SDO communication, and multi-master architectures. The card also supports the CANopen Motion Library, which follows the CiA-402 specification for position, velocity, torque and synchronised control.
The CR ordering code is the 5-pin screw terminal, universal PCI version, with a built-in 120 Ω terminal resistor, a baud rate range of 10 k to 1 M, and 3000 VDC isolation on the DC-to-DC side. It is rated for an operating temperature of 0 to +60 °C.
Applications
- Tube bender motion control with built-in CANopen motion control
- CANopen motion control systems using CiA-402 functions
- Industrial CANopen network master and monitoring on PC platforms
| Product type: | PCI board |
|---|---|
| Interface: | Universal PCI |
| Protocol: | CANopen |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Operating temperature: | 0 ~ +60 °C |
Specifications
| Software | |
|---|---|
| Driver | Windows XP/7/8/10 (32-bit/64-bit OS) |
| SDK | VB 6.0, BCB 6.0, VC++, C#.net, VB.net |
| CPU Module | |
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | 1 x Power and Communication |
| PC Bus | |
| Type | Universal PCI |
| Board No. | By DIP switch |
| CANopen | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02 |
| NMT | Master |
| Power | |
| Consumption | 2 W |
| Mechanical | |
| Dimensions (mm) | 138 x 127 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
