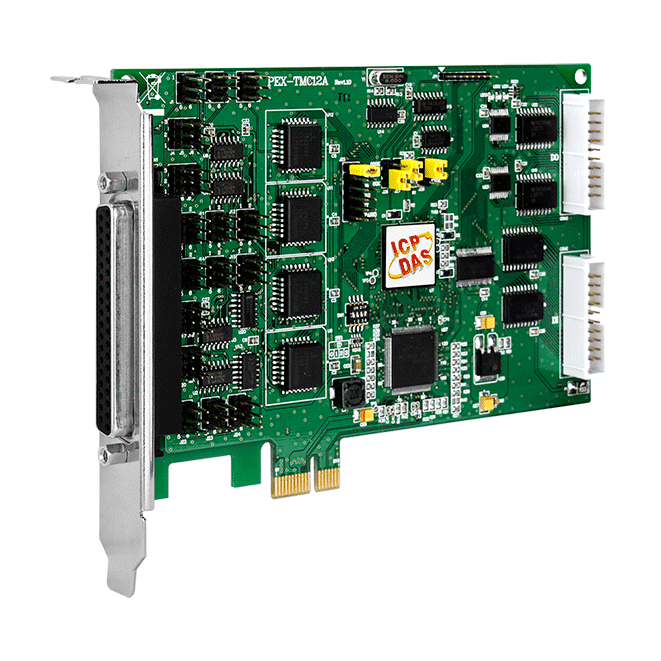

PEX-TMC12A PCI Express 12-ch Timer/Counter Board, 16-bit with 16 DI/16 DO
PCI Express x1 board with twelve 16-bit timers/counters, 16 TTL digital inputs and 16 TTL digital outputs. Designed as a replacement for the PCI-TMC12A series without software or driver changes.
- Twelve independent 16-bit timers/counters on four 82C54-compatible chips
- 16 TTL digital inputs and 16 TTL digital outputs, 500 kHz typical input response
- Timers can be cascaded to 32/48-bit and gates can use external signals or previous channel outputs
- Two jumper-selectable internal clocks: 8 M/1.6 M and 0.8 M/80 K
- Four interrupt sources with a more flexible interrupt mechanism
- Card ID function via SMD switch (4-bit) for multi-card systems
€308.00 per piece
| 1–9 pcs | €308.00 | |
|---|---|---|
| 10–30 pcs | €299.00 | −3 % |
| 31+ pcs | €293.00 | −5 % |
Product information "PEX-TMC12A PCI Express 12-ch Timer/Counter Board, 16-bit with 16 DI/16 DO"
The PEX-TMC12A is a PCI Express x1 board for engineers who need counting, timing and frequency measurement alongside general-purpose digital I/O in a single card. It provides twelve independent 16-bit timers/counters, built from four 82C54-compatible chips, and 16 TTL digital inputs and 16 TTL digital outputs.
Two onboard clock sources, 8 M/1.6 M and 0.8 M/80 K, are selected by jumper and give the timers a high-resolution reference. Timers can be cascaded to 32 or 48 bits, and each gate input can take an external signal or the output of another channel. A Card ID switch lets software identify the board when two or more cards are fitted in the same computer.
The card is intended as a direct swap for the PCI-TMC12A series, so existing software and drivers should not need modification. This ordering code, PEX-TMC12A CR, includes one CA-4002 D-Sub connector.
Applications
- Pulse, event and switch-toggle counting
- Frequency readings and elapsed time measurement
- Pulse-width measurement
- PWM output and pulse (square wave) generation
- Rate generation for industrial and laboratory applications
| Product type: | Timer/Counter board |
|---|---|
| Interface: | PCI Express x1 |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Power input: | 500 mA @ +5 V |
| Operating temperature: | 0 ~ +60°C |
Specifications
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin box header x 2 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 500 kHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 24 mA @ 0.8 V Source: 15 mA @ 2.0 V |
| Response Speed | 500 kHz |
| Timer/Counter/Frequency | |
| Channels | 12 |
| Type | 5 V/TTL (82C54 compatible timer) |
| Resolution | 16-bit |
| Input Frequency | 10 MHz max. |
| Reference Clock | Internal: 8 MHz |
| PC Bus | |
| Type | PCI Express x 1 |
| Data Bus | 16-bit |
| Power | |
| Consumption | 500 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 108.71 x 151.36 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
