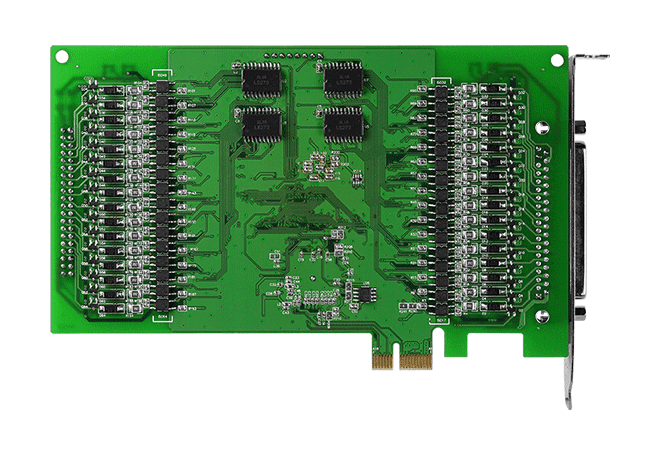

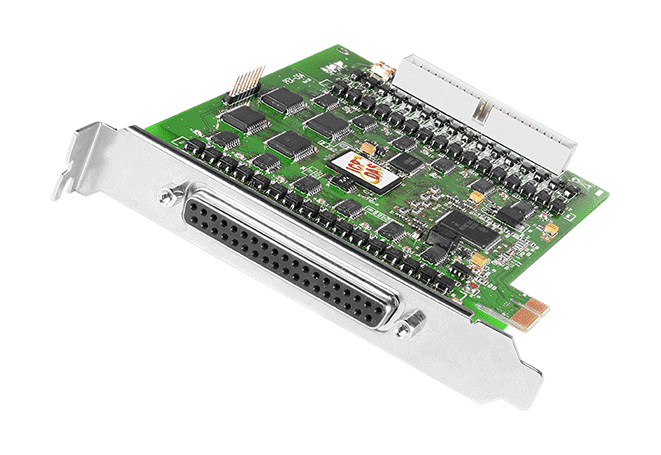

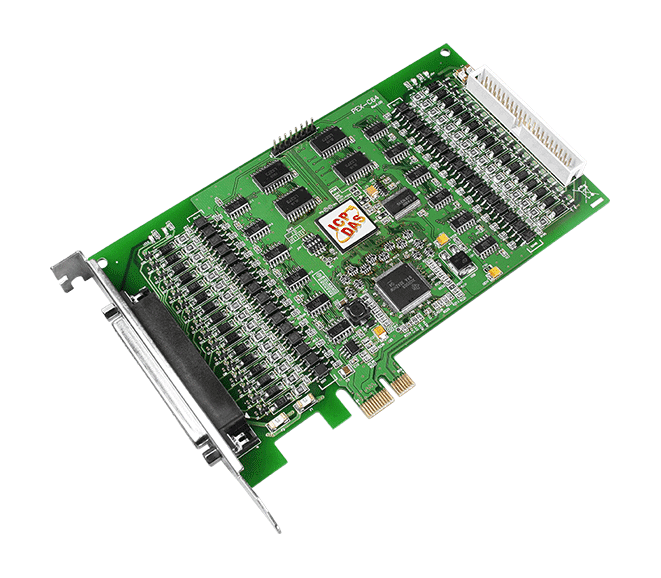

PEX-C64 PCI Express Isolated Digital Output Board, 64-ch Sink (NPN)
64-channel optically isolated digital output board for PCI Express x1 slots, with open collector sink (NPN) outputs and 3750 Vrms isolation from the host PC.
- PCI Express x1 interface with an 8-bit data bus
- 64 optically isolated digital outputs, sink (NPN) open collector
- Load current of 100 mA/+30 V per channel at 60% duty
- 3750 Vrms isolation with an integrated suppression diode for inductive loads
- 4-bit Card ID SMD switch for identifying boards when two or more are installed
- Four isolated banks when using four isolated external power supplies
€278.00 per piece
| 1–9 pcs | €278.00 | |
|---|---|---|
| 10–30 pcs | €269.00 | −3 % |
| 31+ pcs | €264.00 | −5 % |
Product information "PEX-C64 PCI Express Isolated Digital Output Board, 64-ch Sink (NPN)"
The PEX-C64 is a PCI Express x1 digital output board that gives a host PC 64 optically isolated channels for driving field logic and loads. Each channel uses a Darlington transistor output with an integrated suppression diode for inductive loads, and the isolation rated at 3750 Vrms keeps the computer separated from ground loops and voltage spikes on the field side.
Engineers choose this board for factory automation, product test and laboratory automation where a dense block of sink-type outputs is needed in a single slot. Outputs are arranged into four isolated banks when four isolated external power supplies are used. An onboard 4-bit Card ID switch makes individual boards easy to identify in software when two or more cards are installed in the same computer.
The PEX-C64 is designed as a drop-in replacement for the PISO-C64U, with no modification required to existing software or driver. This ordering code includes one CA-4037B cable and two CA-4002 D-Sub connectors.
Applications
- Factory automation
- Product test
- Laboratory automation
| Product type: | PCI Express DAQ board |
|---|---|
| Interface: | PCI Express x1 |
| Digital outputs: | 64 |
| Isolation: | 3750 Vrms |
| Operating temperature: | 0 ~ +60°C |
Specifications
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 40-pin box header x 1 |
| Card ID | Yes (4-bit) |
| Digital Output | |
| Channels | 64 |
| Type | |
| Sink/Source (NPN/PNP) | Sink, Open Collector |
| Operation Mode | Static Update |
| Load Current | 100 mA/+30 V for each channel @ 60% duty |
| Response Speed | 4 kHz (Typical) |
| Isolation | 3750 Vrms |
| PC Bus | |
| Type | PCI Express x 1 |
| Data Bus | 8-bit |
| Power | |
| Consumption | 400 mA @ +3.3 V 200 mA @ +12 V |
| Mechanical | |
| Dimensions (mm) | 105 x 180 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
