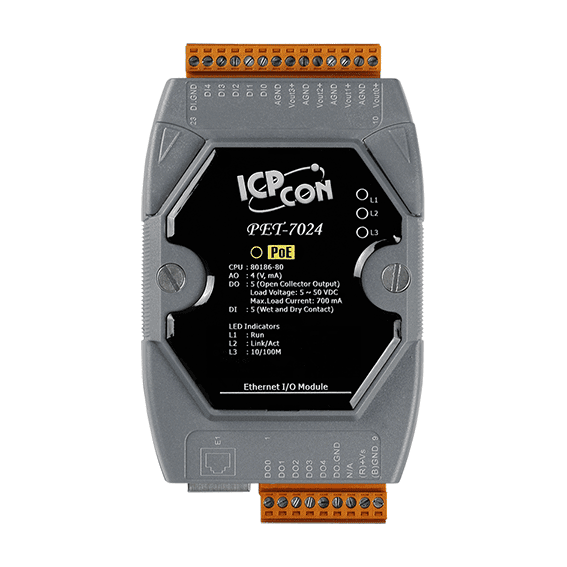

PET-7024 PoE I/O Module, 4-ch Analog Output, 5-ch DI, 5-ch DO

The ET-7024 combines four analogue outputs, five digital inputs and five digital outputs in one DIN-rail Ethernet module. A single unit can drive field actuators and read switch or sensor states over Modbus TCP or Modbus UDP, which keeps wiring and panel space to a minimum.Each analogue output can be set to voltage (+0 ~ +5 VDC, ±5 VDC, +0 ~ +10 VDC, ±10 VDC) or current (0 ~ 20 mA, 4 ~ 20 mA), with the choice made per channel by jumper. The digital inputs accept dry or wet contacts and include a 32-bit counter function, while the digital outputs are isolated open-collector sink type rated at 600 mA per channel.Built-in web server and web HMI, dual watchdog and I/O pair connection simplify commissioning and monitoring. The module provides 2500 VDC I/O isolation, ±4 kV ESD contact protection on each terminal, and is RoHS compliant.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment

The ET-7224 CR combines analogue output, digital input and digital output channels in one DIN-rail Ethernet I/O module. Each of its four analogue outputs can be set by jumper to voltage or current, covering +/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA, which suits engineers who need to drive a mix of field actuators from a single module.Communication is handled over Modbus TCP and Modbus UDP, with a built-in web server and web HMI for configuration and monitoring. The integrated 2-port 10/100 Base-TX switch, with LAN bypass, allows the module to be daisy-chained along a network line without a separate switch at each node.Designed for building, factory and machine automation as well as remote maintenance and diagnosis, the module offers dual watchdogs, programmable power-on and safe values for outputs, and 2500 VDC I/O isolation with 1500 VDC Ethernet isolation.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment

The PET-7224 CR is a PoE-powered Ethernet I/O module that combines four analogue outputs, five digital inputs and five digital outputs in one DIN-rail unit. Each analogue output can be set to voltage or current through its jumper, covering +/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA ranges, so one module can suit a wide mix of actuators and valves.Communication is handled over Modbus TCP and Modbus UDP, with a built-in web server and web HMI for configuration and monitoring. A 2-port switch with LAN bypass allows units to be daisy-chained along a network, reducing the cabling needed for distributed I/O.Electrical protection includes 2500 VDC intra-module isolation and 4 kV ESD protection. Dual watchdogs, programmable power-on and safe values for outputs, and the device's I/O pair connection support dependable operation in automation and remote diagnosis tasks.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment

PET-7026 CR combines six analog inputs, two analog outputs, two digital inputs and two digital outputs in one DIN-rail Ethernet module. It suits engineers who need mixed signal acquisition and control at a single network node, with Modbus TCP and Modbus UDP available for host communication.Each analog input can be set to voltage or current and to a range from ±500 mV to ±20 mA or 4 ~ 20 mA, selected by jumper. The inputs are rated for 240 Vrms overvoltage protection, and the analog outputs can likewise be configured for voltage or current using their jumpers. The digital inputs support dry or wet contact and can count pulses up to 32-bit.Suitable for deployments where power and data share one Ethernet cable, using PoE (IEEE 802.3af, Class 1) or a +12 ~ +48 VDC terminal block supply.Built-in web server and Web HMI simplify configuration and monitoring.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment
