PDS-720D Programmable Serial-to-Ethernet Device Server, RS-232/RS-485
Programmable device server with one RS-232 and one RS-485 port, a Modbus TCP to RTU/ASCII gateway function and a 5-digit LED display. Includes CA-0910 cable.
- Connects one RS-232 and one RS-485 serial device to an Ethernet network
- Virtual COM driver extends PC COM ports, VxComm supports 32/64-bit Windows 7 SP1/10/2012/2016
- Modbus TCP to RTU/ASCII gateway function for SCADA and HMI communication
- Programmable device server with Xserver structure and built-in MiniOS7
- Self-tuner ASIC controller on the RS-485 port
- +/-4 kV ESD protection circuit on the serial port
€177.00 per piece
| 1–9 pcs | €177.00 | |
|---|---|---|
| 10–30 pcs | €172.00 | −3 % |
| 31+ pcs | €168.00 | −5 % |
Product information "PDS-720D Programmable Serial-to-Ethernet Device Server, RS-232/RS-485"

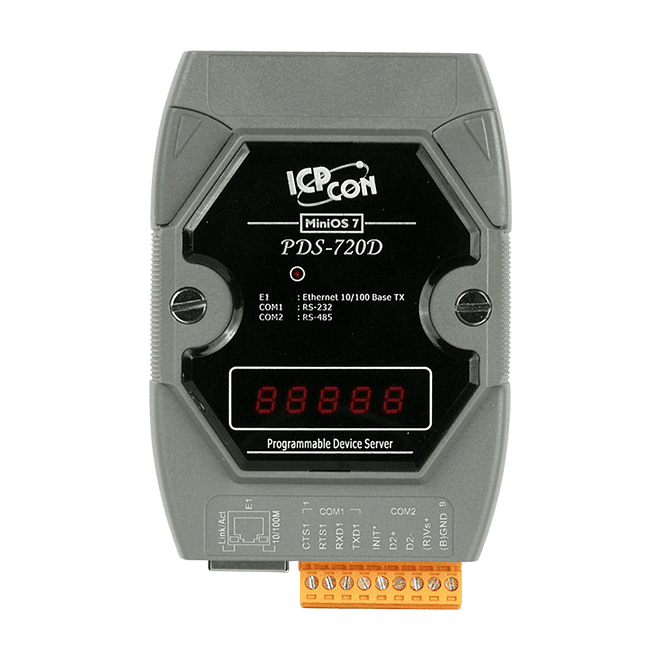

The PDS-720D CR bridges one RS-232 and one RS-485 serial device onto a 10/100 Base-TX Ethernet network, so legacy equipment can be reached from SCADA, HMI or PC software without redesigning the serial side. Virtual COM drivers let Windows applications address the device server's serial ports as standard COM ports.
Beyond simple serial tunnelling, the unit is a programmable device server built around a MiniOS7 kernel and an Xserver programming structure, which suits custom Ethernet logic. It also acts as a Modbus TCP to RTU/ASCII gateway, allowing Modbus TCP clients to talk to serial Modbus slaves. The LED display and power indicator help with local status checks.

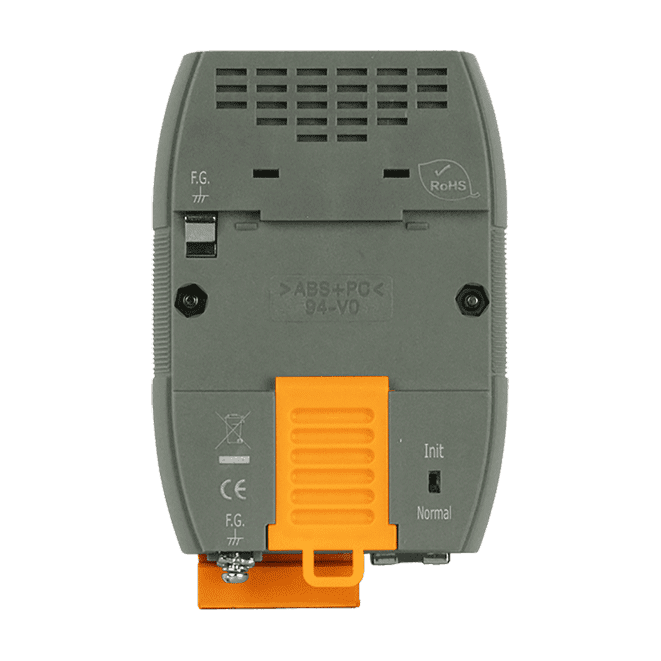

The unit has a plastic housing, a removable terminal block for wiring and supports DIN-rail or wall mounting. It is rated for an operating temperature of -25 ~ +75 °C and is supplied with the CA-0910 cable.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 1x RS-232, 1x RS-485 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifications
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles |
| Flash | 512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 5 x digit 7 Segment |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 |
| Stop Bit | 1, 2: for COM1 ~ COM2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.7 W |
| Powered from Terminal Block | +10 ~ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 112 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
