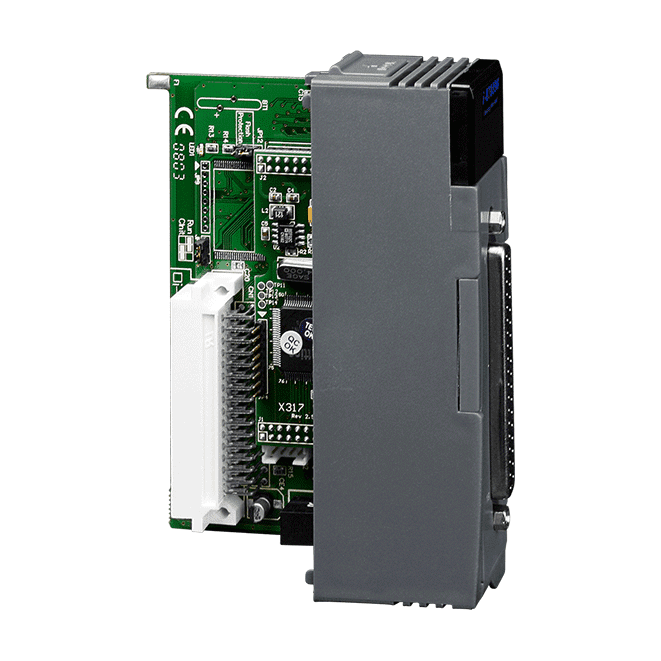

I-87089W-G Vibrating Wire Input Module, RS-485 DCON Interface
I-87089W-G reads vibrating wire sensors at 450 ~ 6000 Hz, supports 8 ~ 32 inputs and reports over RS-485 using the DCON protocol. Channel-to-channel isolation is 1 kV.
- Measures vibrating wire sensor frequencies from 450 ~ 6000 Hz
- Supports 8 ~ 32 vibrating wire inputs, extendable with DN-1618UB units
- Enhanced square wave excitation mode
- Channel-to-channel isolation of 1 kV and 3000 VDC intra-module isolation
- Sensor temperature measurement range of -20 °C ~ +50 °C
- 1 x RS-485 port with DCON protocol, 1200 ~ 115200 bps
€302.00 per piece
| 1-9 pcs | €302.00 | |
|---|---|---|
| 10-30 pcs | €287.00 | −5 % |
| 31+ pcs | €272.00 | −10 % |
Product information "I-87089W-G Vibrating Wire Input Module, RS-485 DCON Interface"
The I-87089W-G is a vibrating wire input module for engineers who need to read resonant-frequency sensors and pass the results to a control system over a serial link. It measures sensor wire frequencies from 450 ~ 6000 Hz and gives a temperature reading for each sensor through its temperature wires.
The module supports 8 ~ 32 vibrating wire inputs. Additional DN-1618UB units can be connected to extend a single I-87089W/S to 32 channels. Excitation uses an enhanced square wave, and the module isolates channels from each other at 1 kV and 3000 VDC inside the module.
Communication is through one RS-485 port using DCON at 1200 ~ 115200 bps, with N, 8, 1 data format. A module watchdog and a programmable communication watchdog are included. The unit is specified for an operating range of -25 ~ +75 °C.
Applications
- Readout of vibrating wire sensors, where wire tension is derived from the resonant frequency
| Product type: | Vibrating Wire Input Module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Analog inputs: | 8 ~ 32 (vibrating wire) |
| Ports: | 1 |
| Isolation: | 1 kV channel-to-channel |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| LED Indicators | |
| Status | 2 x Power and Communication 8 x I/O |
| Vibrating Wire Input | |
| Channels | 8 |
| Type | Vibrating Wire Sensor ( 2 VW wire + 2 Temperature wire +1 shield wire) |
| Excitation Mode | Enhanced square wave |
| Measuring Range, Temperature | -20 °C ~ +50 °C |
| Measuring Range, Wire | 450 ~ 6000 Hz |
| Resolution, Temperature | ±0.1°C ％ of FSR |
| Resolution, Wire | ±0.1Hz ％ of FSR |
| Channel-to-Channel Isolation | Yes, 1 kV |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
| Consumption | 3.6 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
