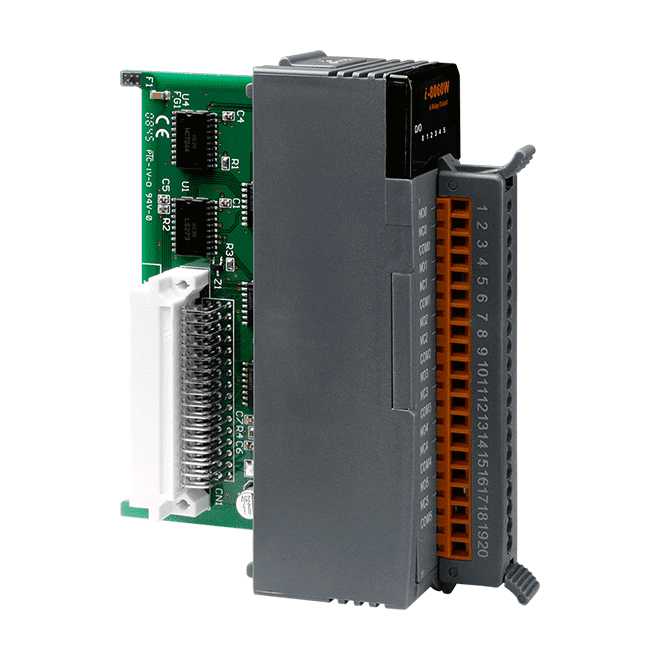

I-8060W-G 6-Channel Form C Power Relay Output Module

The I-8060 CR is a 6-channel Form C power relay output module from the I-8K/I-87K low profile series. Each channel switches its own relay contact, making the module suitable for driving higher-current loads from a control system without additional interposing relays for simple on/off switching.Each relay channel has its own LED indicator, alongside a power and communication LED, so the state of every output can be checked at a glance during commissioning and fault finding. Contact ratings are 0.5 A at 125 VAC, 0.25 A at 250 VAC and 2 A at 30 VDC, with operate and release times of 10 ms and 5 ms maximum.Built for electrically noisy cabinets, the module offers ±4 kV contact ESD protection on each terminal and 1500 Vrms isolation between module and its surroundings. The blue cover identifies the CR variant of the I-8060 family.ApplicationsSwitching loads in industrial control and automation systemsRelay output duty in electrically noisy industrial environments

The I-8060-G CR is a PAC I/O module that switches external loads through six Form C power relay outputs. Each channel has its own LED, so the state of every relay can be checked at a glance on the panel, which helps when commissioning or troubleshooting a control cabinet.Designed for electrically noisy plant, the module combines ±4 kV ESD contact protection on each terminal with 1500 Vrms isolation between the module and its surroundings. Relay ratings are 0.5 A at 125 VAC, 0.25 A at 250 VAC and 2 A at 30 VDC, with an operate time of 10 ms maximum and a release time of 5 ms maximum.Part of the I-8K/I-87K low profile series, the gray-cover version is specified for an operating temperature of -25 ~ +75 °C and a power consumption of 1 W maximum. It measures 31 x 116 x 88 mm (W x L x H) and carries CE, FCC, RoHS and WEEE marks.ApplicationsSwitching external loads from PAC or remote I/O control systemsIndustrial control cabinets in harsh electrical environments

The I-8063 CR combines four isolated digital inputs with four Form C power relay outputs in one compact remote I/O module. Each input can be configured as sink-type or source-type through the wiring, so the same module suits a range of field sensor arrangements.Eight LED indicators show the state of the power and communication, along with each digital input and relay output, which helps with commissioning and fault finding. The module provides ±4 kV ESD protection on each terminal and 3750 VDC intra-module isolation for noise immunity in harsh industrial environments.The CR suffix identifies the blue-cover variant. Its relay outputs are rated 5 A, 250 VAC / 30 VDC, with an operating temperature range of -25 ~ +75 °C, making it suitable for switching loads in automation, building and test equipment.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment

The I-8063-G CR is a low-profile I/O module that combines four isolated wet-contact digital inputs with four Form C power relay outputs. It suits engineers who need to sense field contacts and switch loads from a single compact unit in automation panels.Each digital input can be configured as sink-type or source-type through the wiring, so the module adapts to different field device arrangements. The relay outputs are rated for 5A at 250 VAC or 30 VDC, and eight LEDs show power, communication and the state of every input and output channel. Each terminal is protected to ±4 kV ESD (IEC 61000-4-2), and 3750 VDC intra-module isolation helps the module withstand electrical noise in harsh environments.The gray-cover variant identified by the -G suffix belongs to the I-8K/I-87K low-profile series and is intended for building, factory and machine automation, as well as remote maintenance, remote diagnosis and test equipment applications.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment
