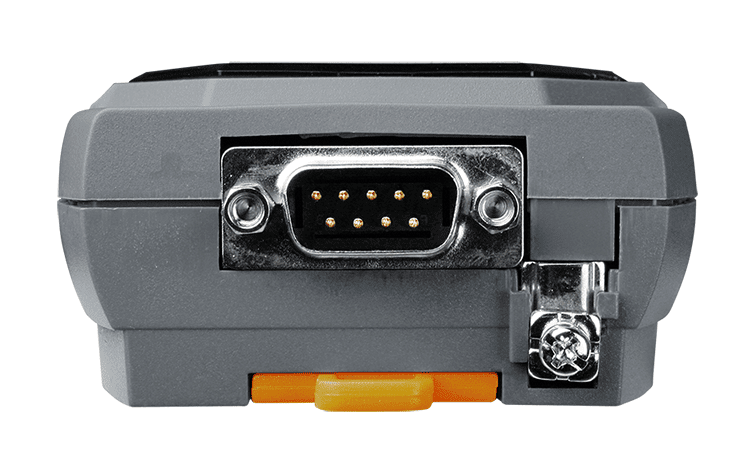

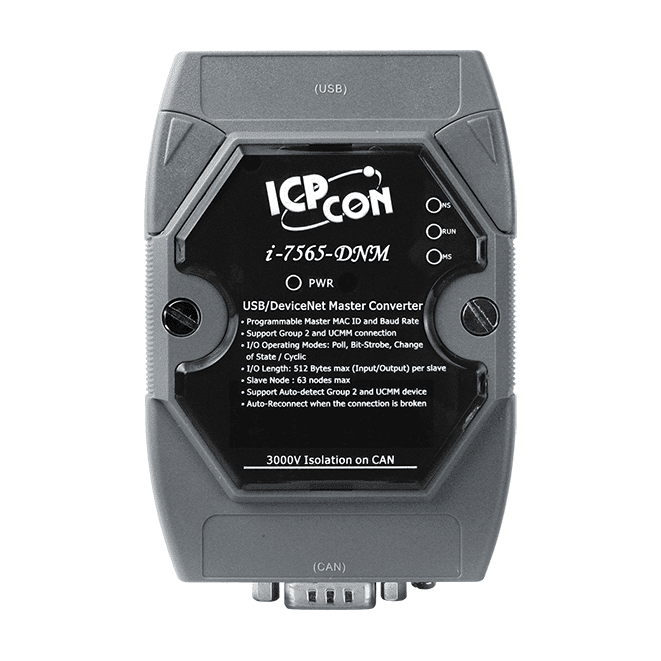

I-7565-DNM-G USB/DeviceNet Master Converter, D-sub 9-pin
USB to DeviceNet master converter that lets a Windows or Linux host act as a DeviceNet master, with 125, 250 and 500 kbps rates and up to 64 nodes per port.
- Programmable master MAC ID with 125, 250 and 500 kbps transfer rates
- Up to 64 nodes per port, with input/output fragment number up to 64
- Poll, Bit-Strobe and Change Of State/Cyclic I/O operation modes
- Auto-Scan of slave devices, on-line adding and removal of devices and boot-up auto communication
- Auto-reconnect when a connection is broken
- USB 1.1 and 2.0 interface at 921.6 kbps with USB Type B connector
€249.00 per piece
| 1–9 pcs | €249.00 | |
|---|---|---|
| 10–30 pcs | €241.00 | −3 % |
| 31+ pcs | €236.00 | −5 % |
Product information "I-7565-DNM-G USB/DeviceNet Master Converter, D-sub 9-pin"
The I-7565-DNM-G CR is a USB-attached DeviceNet master converter. It lets a host PC run a DeviceNet master on the network without a dedicated PAC or fieldbus card, which makes it a cost-effective option for adding DeviceNet control to existing systems. It supports Group 2 Only Server and UCMM functions for communicating with slave devices.
The converter has one independent CAN-based DeviceNet port, built around an NXP SJA1000T controller running at 16 MHz. The programmable master MAC ID and selectable baud rate of 125, 250 or 500 kbps suit a range of network layouts. A jumper provides a 120 Ω terminal resistor, and the port is isolated, rated at 3000 VDC for DC-to-DC and 2500 Vrms for photo-coupling.
Drivers are supplied for Win XP, Win7, Win8 and Win10 in 32-bit and 64-bit editions, along with a Linux driver. The SDK covers x64 DLL, .NET DLL, VB6, VC6 and BCB6 environments. The unit mounts on a DIN rail and operates from -25 ~ +75 °C.
Applications
- Communication with PowerFlex400 drives
- SMC valve applications
- IFC-125 valve applications
- MKS FRCA valve applications
- SICK distance sensor applications
- Diagnostic systems for wheeled tractors
| Product type: | USB/DeviceNet Master Converter |
|---|---|
| Interface: | DeviceNet, USB |
| Protocol: | DeviceNet |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| Software | |
|---|---|
| Driver | Win XP/ Win7/ Win8/ Win10 32-bit and 64-bit , Linux driver |
| SDK | x64 DLL, .NET DLL, VB6 bas, VC6 DLL, BCB6 DLL |
| CPU Module | |
| CPU | x86 |
| LED Indicators | |
| Status | PWR LED, RUN LED, NS LED, MS LED |
| USB | |
| Specification | USB 1.1 and USB 2.0 |
| Transfer Speed | 921.6 kbps |

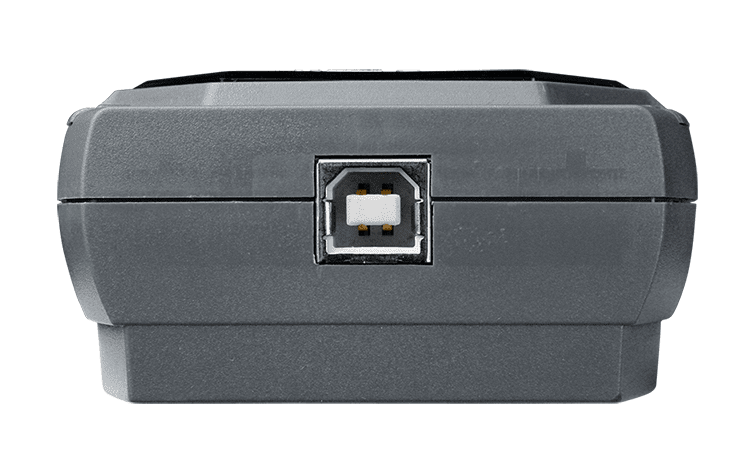

| Connector | USB Type B |
| DeviceNet | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 125 k, 250 k, 500 k |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Protocol | DeviceNet Volumn I ver2.0, Volumn II ver2.0 |
| CAN Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Power | |
| Consumption | 3 W |
| Mechanical | |
| Dimensions (mm) | 72 x 101 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
