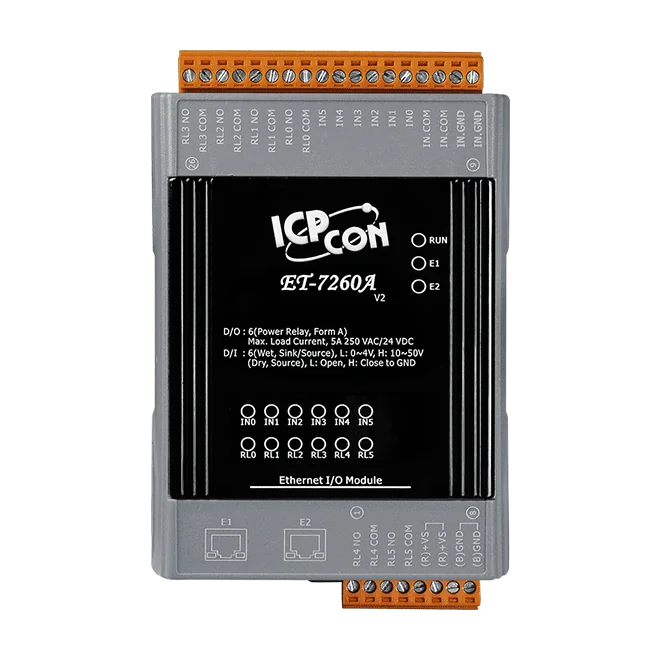

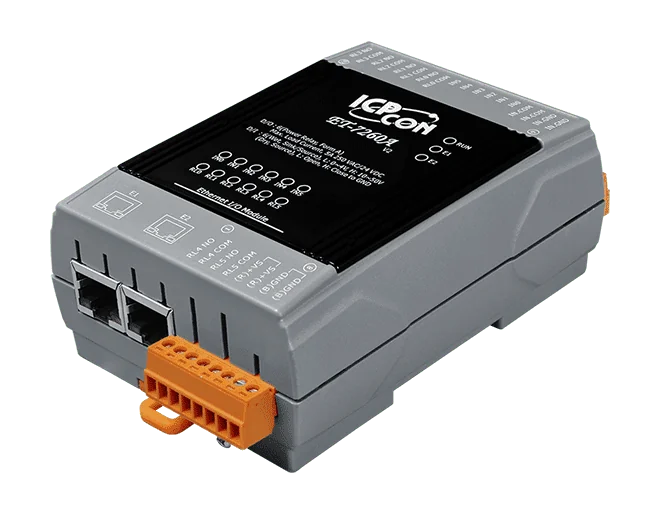

ET-7260A Ethernet I/O Module, 2-port Switch, 6-ch DI, 6-ch Power Relay

The PET-7260A combines Ethernet networking, digital input counting and power relay switching in one DIN-rail module. Its built-in web server and Web HMI allow configuration from a browser, and it can be controlled remotely over Modbus TCP or Modbus UDP, so it integrates readily with HMI, SCADA, PLC and other industrial control software.The two built-in 10/100 Base-TX switch ports, with LAN bypass, let you daisy-chain modules or extend the network along the Ethernet line without adding an external switch. The module can be powered either from IEEE 802.3af Power-over-Ethernet (Class 1) over a copper cable or from a +12 ~ +48 VDC terminal block.The six dry or wet contact inputs can be used as counters, and the six Form A power relays are rated 5 A @ 250 VAC/24 VDC for resistive loads. Dual watchdog, I/O pair connection and 3000 VDC I/O isolation support dependable operation in control cabinets.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment

The ET-7060 CR combines six wet contact digital inputs with six form A power relays in a single Ethernet-connected DIN-rail module. Each input can also operate as a 32-bit counter, which suits pulse counting and status monitoring in automation and remote supervision tasks. Relay power-on and safe values are programmable, so outputs can be set to a defined state when the module starts or communication is lost.Communication is handled over a 10/100 Base-TX RJ-45 port using Modbus TCP or Modbus UDP. A built-in web server and web HMI allow configuration and monitoring through a browser, while dual watchdogs (module and communication, both programmable) help maintain system reliability. Access can be restricted with ID, password and IP filter controls.Isolation is rated at 3000 VDC for the I/O and 1500 VDC for Ethernet, with no channel-to-channel isolation. When switching inductive loads, fit a flyback diode for DC loads or a metal oxide varistor for AC loads to protect the relay contacts and extend relay life.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment

ET-7260 CR is a DIN-rail Ethernet I/O module that combines six wet contact digital inputs with six form A power relays. Each input can be set up as a 32-bit counter, which suits pulse counting and status monitoring on distributed machines and panels.The built-in 2-port 10/100 Base-TX switch, with LAN bypass, allows modules to be daisy-chained along a network line. Communication is via Modbus TCP or Modbus UDP, and a built-in web server and web HMI support configuration and monitoring. Dual watchdogs and programmable power-on and safe values for the relays help the module respond predictably to faults.Isolation is rated at 1500 VDC for Ethernet and 3000 VDC for I/O, but the input channels are not isolated from each other. When switching inductive loads, fit a flyback diode for DC loads or a metal oxide varistor for AC loads to protect the relay contacts.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment

PET-7060 CR is a PoE Ethernet I/O module that combines six wet contact digital inputs with six form A power relays in one DIN-rail unit. Each input channel can be used as a 32-bit counter, and the relay power-on and safe values are programmable, which suits remote switching and monitoring tasks in building, factory and machine automation.The module accepts Modbus TCP and Modbus UDP, and includes a built-in web server and web HMI for configuration and status viewing. Its dual watchdog and I/O pair connection features help maintain defined behaviour during communication faults. The I/O is optically isolated to 3000 VDC transient overvoltage protection, but the channels are not isolated from each other.When switching inductive loads, fit a flyback diode for DC loads or a metal oxide varistor for AC loads. Without this protection, the energy stored in the load can damage the relay contacts and greatly shorten relay life.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment

PET-7260 CR is a PoE-powered Ethernet I/O module that combines six wet contact digital inputs with six Form A power relays. Each input can be used as a 32-bit counter, making the unit suitable for pulse counting and status monitoring over Modbus TCP or Modbus UDP.The integrated 2-port 10/100 Base-TX switch with LAN bypass allows the module to be daisy-chained along a network line. Relay power-on and safe values are programmable, and the I/O is optically isolated to 3000 VDC for transient overvoltage protection, although the input channels are not isolated from each other.Each relay is rated 5 A @ 250 VAC/24 VDC for resistive loads. When switching inductive loads, fit a flyback diode for DC loads or a metal oxide varistor for AC loads to protect the relay contacts and extend relay life.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment
