EC21-AU LTE Category 1 Mini PCIe Module, 10 Mbps Downlink
LTE Cat 1 module in a standard Mini PCIe form factor for M2M and IoT devices, with up to 10 Mbps downlink and 5 Mbps uplink, plus 3G WCDMA and 2G GSM/EGPRS coverage.
- LTE Cat 1 connectivity with up to 10 Mbps downlink and 5 Mbps uplink
- Standard PCI Express Mini Card (Mini PCIe) form factor for easy integration
- Worldwide LTE and GSM/EGPRS coverage with 3G WCDMA support
- Low-power design optimised for broadband IoT applications
- Operating temperature range of -35 °C to +75 °C
- Compact 30.0 x 51.0 x 4.9 mm (W x L x H) footprint
€181.00 per piece
| 1–9 pcs | €181.00 | |
|---|---|---|
| 10–30 pcs | €175.00 | −3 % |
| 31+ pcs | €172.00 | −5 % |
Product information "EC21-AU LTE Category 1 Mini PCIe Module, 10 Mbps Downlink"

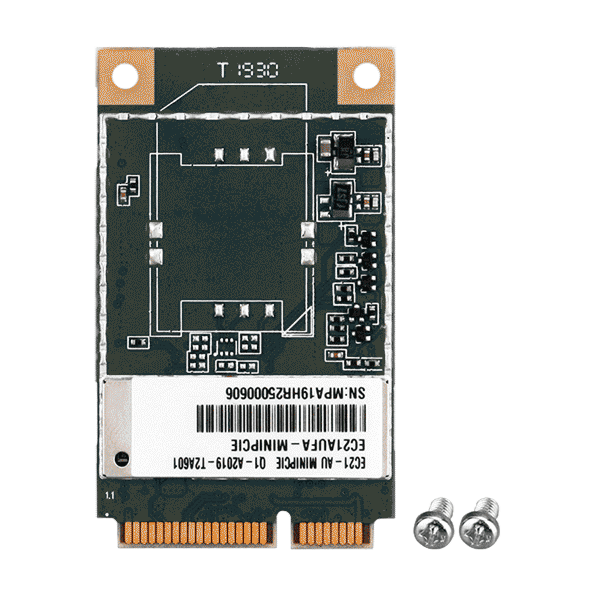

EC21-AU CR is a low-power LTE category 1 module designed for M2M and IoT products that need economical, efficient cellular connectivity. It supports up to 10 Mbps downlink and 5 Mbps uplink on 4G LTE, which suits applications where data rate is less important than a stable, reliable network connection.
The module uses the standard PCI Express Mini Card (Mini PCIe) form factor, so it can be fitted into a device design without a custom interface. Its 4G coverage spans FDD LTE bands B1, B2, B3, B4, B5, B7, B8 and B28 plus TDD LTE band B40. For legacy networks it also provides 3G WCDMA on 850/900/1900/2100 MHz with DC-HSPA+ up to 42 Mbps downlink, and 2G GPRS/EGPRS on 850/900/1800/1900 MHz.
The compact module measures 30.0 x 51.0 x 4.9 mm (W x L x H) and operates from -35 °C to +75 °C, with storage rated from -40 °C to +85 °C. It is certified to FCC, RoHS and WEEE requirements and is produced in China.
Applications
- M2M and IoT devices
- Applications where network rate is not critical but a stable, reliable LTE connection is required
- Broadband IoT products needing cellular connectivity
| Product type: | LTE Cat 1 module |
|---|---|
| Interface: | PCI Express Mini Card |
| Operating temperature: | -35 ~ +75 °C |
Specifications
| 2G System | |
|---|---|
| Data Transmission Rate | GPRS Downlink transfer: Max. 107 kbps; Uplink transfer: Max. 85.6kbps |
| Frequency Band | 850/900/1800/1900 MHz |
| GPRS Multi-slot | GPRS class 10/8; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 |
| SMS Format | Sending: UCS2/7bits Receiving: UCS2/7bits |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76Mbps WCDMA Downlink transfer: Max. 384 Kbps; Uplink transfer: Max. 384 Kbps |
| Frequency Band | WCDMA 850/900/1900/2100 MHz |
| Power Class | Class 3 (24dBm+1/-3dB) for WCDMA |
| SMS Mode | MT, MO, CB, Text and PDU mode |
| 4G System | |
| Data Transmission Rate | LTE(Cat.1) Downlink transfer: Max. 10 Mbps; Uplink transfer: Max. 5 Mbps |
| Frequency Band | FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD LTE: B40 |
| Mechanical | |
| Dimensions (mm) | 30.0 x 51.0 x 4.9 (W x L x H) |
| Environment | |
| Operating Temperature | -35°C ~ +75°C |
| Storage Temperature | -40°C ~ +85°C |
Specifications as published by the manufacturer. Subject to change.
