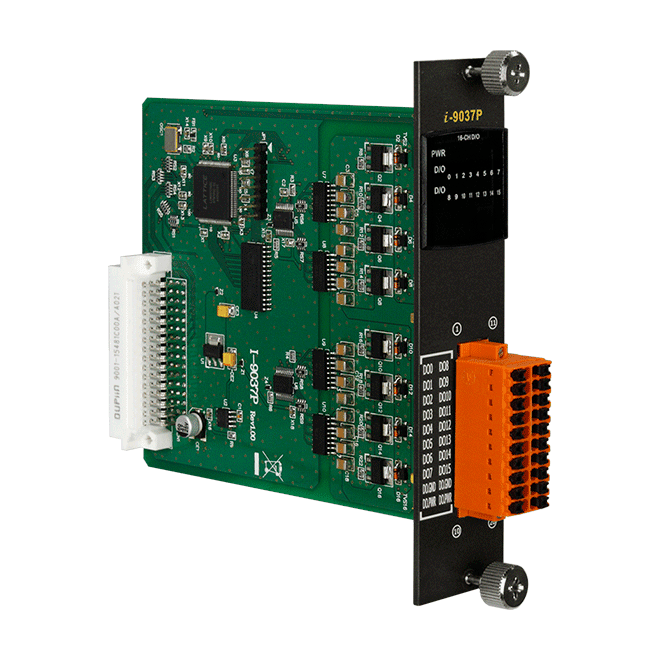

I-9037P 16-ch Isolated Digital Output Module, Source (PNP)
16-channel isolated source-type (PNP) digital output module for I-9K/I-97K PAC systems, rated up to 700 mA per channel with 3750 VDC intra-module isolation.
- 16 isolated source-type (PNP) digital output channels
- Up to 700 mA load current per channel, load voltage +5 to +30 VDC
- Short-circuit protection and 60 VDC overvoltage protection
- Configurable power-on value and safe value for each output
- 3750 VDC intra-module isolation with photo-coupler isolation
- 4 kV contact and 8 kV air ESD protection (IEC 61000-4-2)
165,00 € per piece
| 1–9 pcs | 165,00 € | |
|---|---|---|
| 10–30 pcs | 160,00 € | −3 % |
| 31+ pcs | 157,00 € | −5 % |
Informácie o výrobku "I-9037P 16-ch Isolated Digital Output Module, Source (PNP)"
The I-9037P CR is a 16-channel digital output module for PAC I/O applications in the I-9K/I-97K series. Each channel is a source-type (PNP) output with photo-coupler isolation, so it can switch loads of +5 to +30 VDC at up to 700 mA per channel.
Engineers typically select this module where output channels must withstand electrically noisy plant conditions. Short-circuit protection, 60 VDC overvoltage protection, 4 kV contact ESD protection and 3750 VDC intra-module isolation help protect the module and the control side of the system.
Power-on and safe output values can be configured, so outputs can be set to a defined state at start-up or in a safe state. Channel status LEDs and a power and communication LED simplify commissioning and fault finding. The module draws 1 W maximum and operates from -25 to +75 °C.
Applications
- Switching PNP-type field loads in industrial automation and control systems
- Digital output expansion in I-9K/I-97K PAC I/O configurations
- Installations exposed to electrical noise and interference
| Product type: | Digital output module |
|---|---|
| Digital outputs: | 16 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x DO |
| Digital Output | |
| Channels | 16 |
| Type | Isolated Open-Emitter |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | + 5 to +30 VDC |
| Load Current | 700 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Short-circuit Protection | Yes |
| Power on Value | Yes |
| Safe Value | Yes |
| Power | |
| Consumption | 1 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 mm x 134 mm x 144 mm |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
