Connector

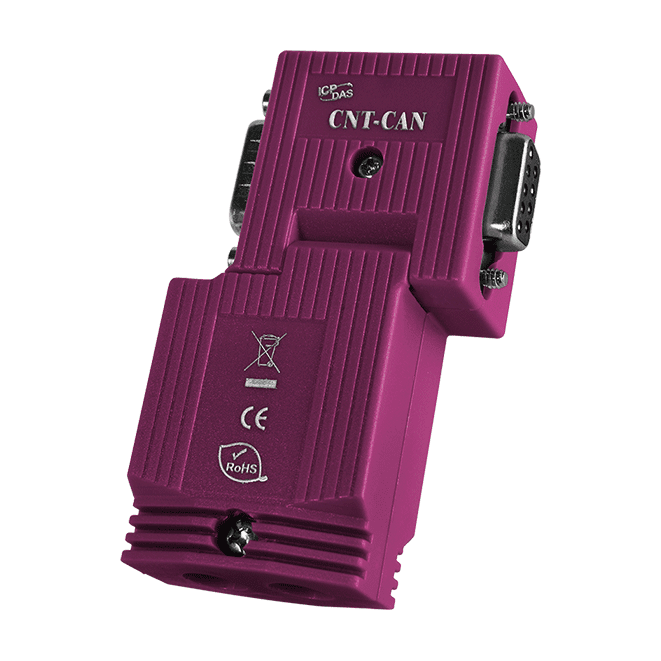

CNT-CAN CR is a CAN bus connector for linking a CAN bus node to the bus line quickly. Its quick-connect technology removes the need to strip the bus conductors, which simplifies installation.The connector has a plastic housing with an integrated terminating resistor that can be selected with a built-in switch. It provides two cable entries and a 9-pin D-Sub female connector with a 90° cable outlet, and is available with a programming interface.It suits engineers who need to add a CAN device to an existing CAN bus line with minimal wiring work and a clear choice of bus termination.ApplicationsConnecting a CAN bus node to a CAN bus lineAdding CAN devices to an existing CAN bus network

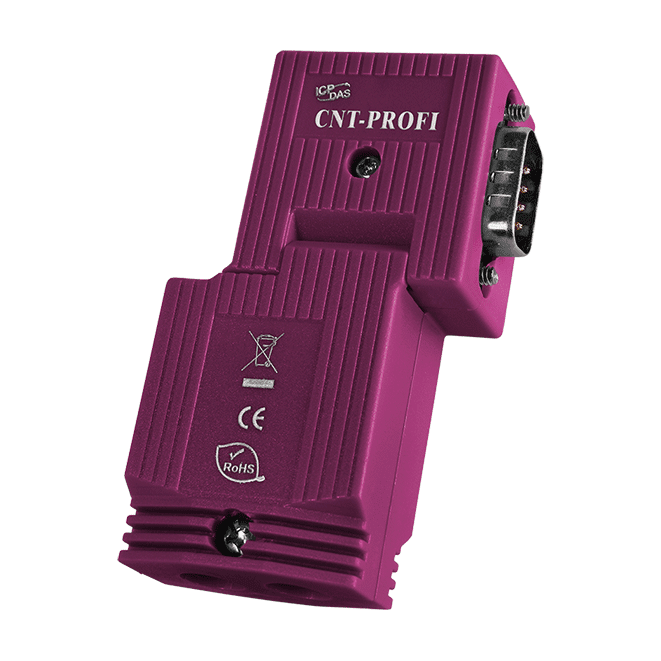

The CNT-PROFI CR connects a PROFIBUS node to the PROFIBUS line. Its quick-connect technology means the bus conductors do not need to be stripped, so a device can be linked to the line quickly during installation.The connector has a plastic housing with integrated terminating resistors, and a built-in switch lets you select the terminating resistor to suit the position of the node on the bus. It provides a 9-pin D-Sub male connector with a 90° cable outlet and two cable entries.Supported baud rates are 9.6kbps ~ 12Mbps. The unit is rated for an operating temperature of -25 ~ +75 ℃ and a storage temperature of -30 ~ +80 ℃, with humidity of 10 ~ 90% RH, non-condensing.ApplicationsFactory automationProcess automation
