I-9017 16/8-ch Voltage/Current Analog Input Module, 90 KS/s

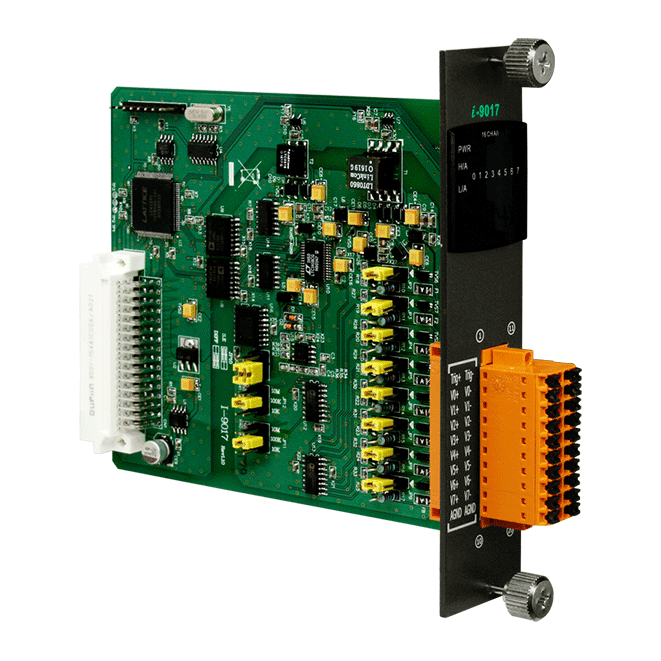

The I-9017 CR is a 14-bit analogue input module with 16 single-ended or 8 differential channels for voltage and current signals, sampling at up to about 90 kS/s.
- 16 single-ended or 8 differential input channels, selected by jumper
- Voltage ranges ±1.25 V, ±2.5 V, ±5 V and ±10 V, and current range -20 mA ~ +20 mA
- 14-bit resolution with about 90 kS/s in single-channel polling mode
- Jumper-selectable input impedance of 20 K, 200 K or 20 M
- 2500 VDC intra-module isolation
- ESD rated at ±4 kV contact per terminal and ±8 kV air
308,00 € per piece
| 1–9 pcs | 308,00 € | |
|---|---|---|
| 10–30 pcs | 299,00 € | −3 % |
| 31+ pcs | 293,00 € | −5 % |
Informácie o výrobku "I-9017 16/8-ch Voltage/Current Analog Input Module, 90 KS/s"
The I-9017 CR is a 14-bit analogue input module for engineers who need fast acquisition of voltage and current signals. It offers 16 single-ended or 8 differential input channels, selected by a jumper setting, so the same module can suit either wiring style.
Input ranges cover voltage spans of ±1.25 V, ±2.5 V, ±5 V and ±10 V, plus a current range of -20 mA ~ +20 mA. Input impedance is jumper selectable at 20 K, 200 K or 20 M, and the A/D conversion can be triggered by polling or interrupt, depending on the application.
Electrical protection includes 2500 VDC intra-module isolation and ESD immunity rated at ±4 kV contact for each terminal and ±8 kV air discharge. The module is suited to high-speed data acquisition, process monitoring and control, and vibration analysis.
Applications
- High-speed data acquisition systems
- Process monitoring and control
- Vibration analysis
- Digital pattern generation from a digital I/O port
| Product type: | Analog Input Module |
|---|---|
| Analog inputs: | 16 single-ended / 8 differential |
| Isolation: | 2500 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 16-ch Single-ended/8-ch Differential |
| Type | Voltage Current |
| Range | Voltage: ±1.25 V, ±2.5 V, 5 V, ±10 V Current: -20 mA ~ +20 mA |
| Resolution | 14-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | Single Channel Polling Mode: about 90 kS/s Single Channel Interrupt Mode: 50 kS/s 15-channel Scan Mode : 16 kS/s |
| Bandwidth | 100 KHz |
| Input Impedance | 20 K, 200 K, 20 M (Jumper Selectable) |
| Zero Drift | ± 0.1 uV/°C |
| Span Drift | ± 10 ppm/°C |
| Power | |
| Consumption | 2 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
