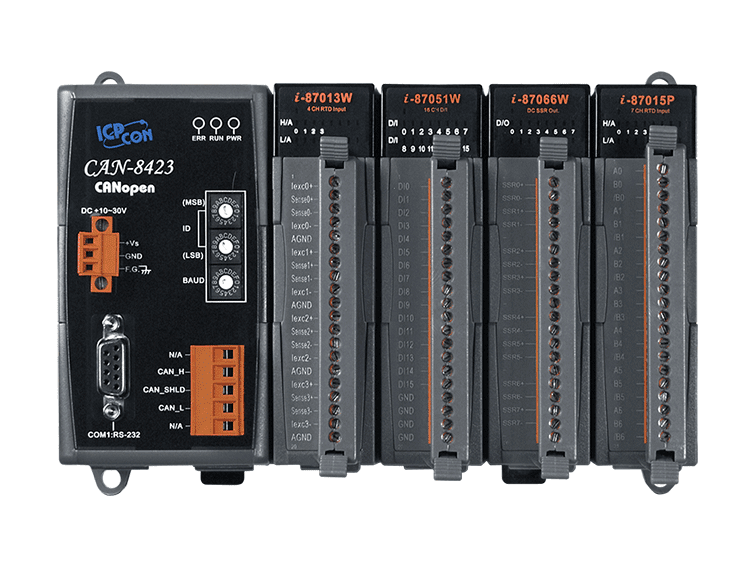

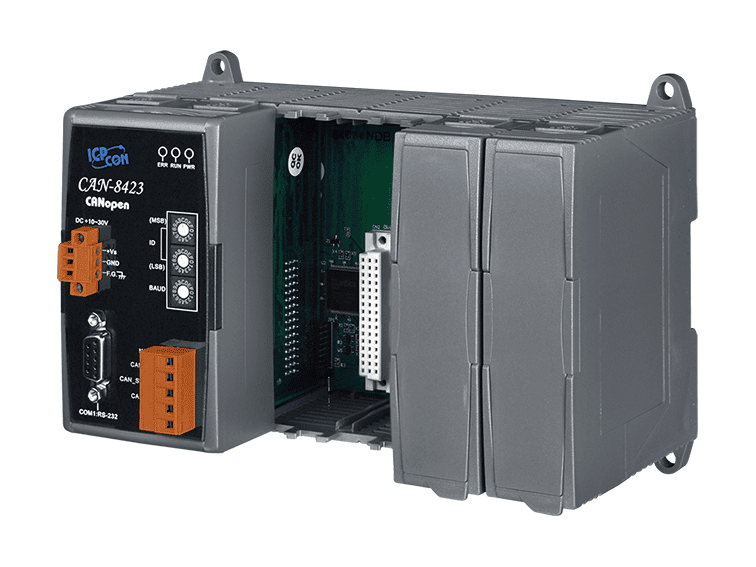

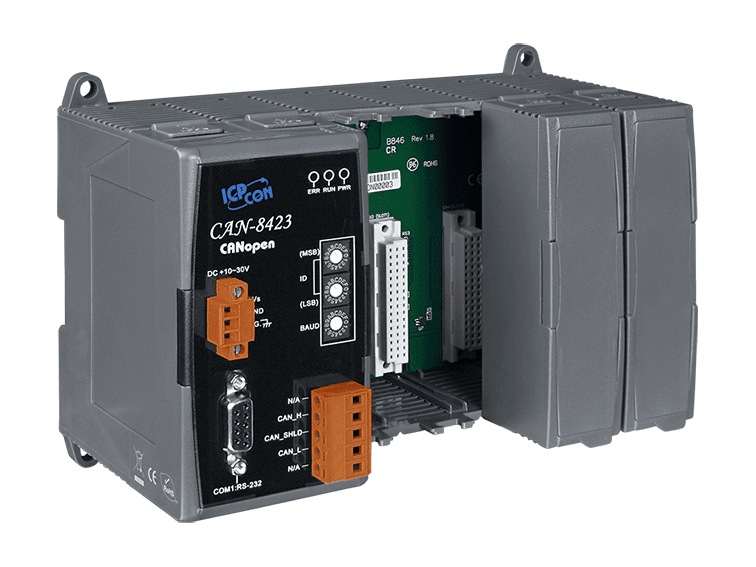

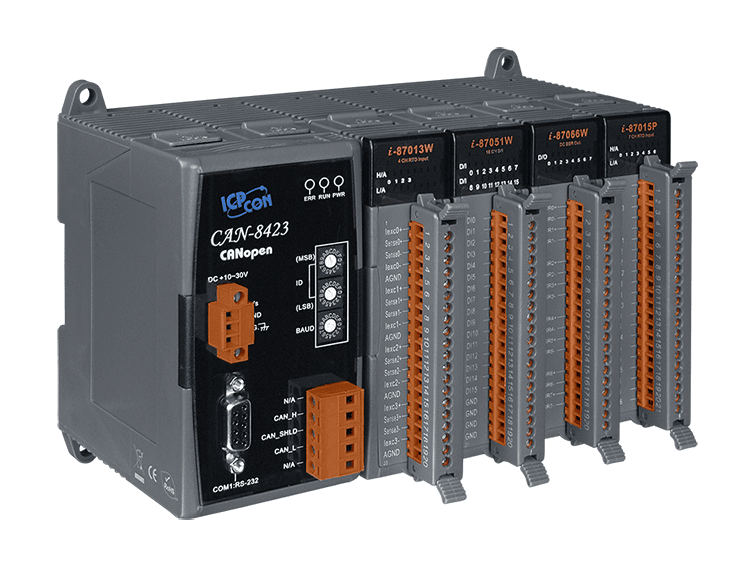

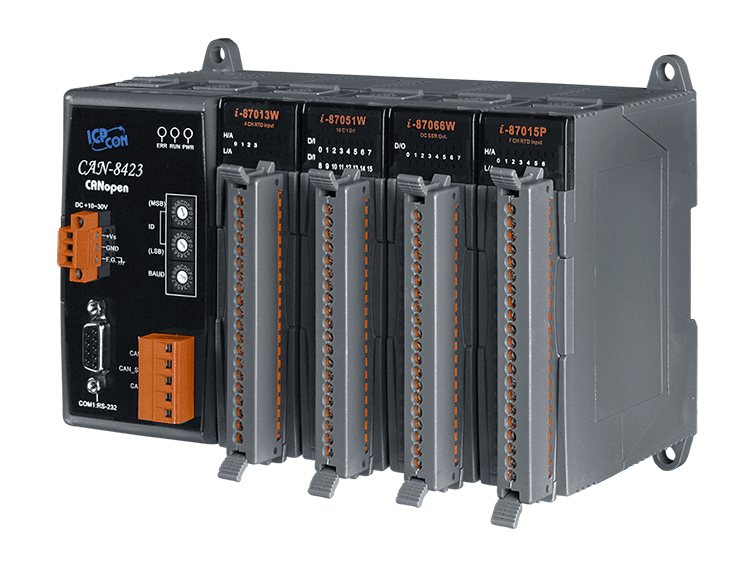

CAN-8423-G CANopen Slave Remote I/O Unit with 4 I/O Slots
CANopen slave remote I/O unit with four expansion slots for ICP DAS I-87K and I-8000 DI, DO, AI and AO modules, conforming to CiA 301 v4.02 and CiA 401 v2.1.
- CANopen slave (NMT Slave) conforming to CiA 301 v4.02 and CiA 401 v2.1 device profile
- Four I/O expansion slots accepting I-87K or I-8000 series DI, DO, AI and AO modules
- Dynamic PDO mapping with event triggered, remotely requested, cyclic and acyclic SYNC modes
- Node Guarding and Heartbeat Producer error control, with EMCY emergency messages
- EDS file generated dynamically with the CAN-8423 Utility
- Node ID set by rotary switch, range 1 to 255; baud rate 10 k to 1 M
412,00 € per piece
| 1–9 pcs | 412,00 € | |
|---|---|---|
| 10–30 pcs | 400,00 € | −3 % |
| 31+ pcs | 392,00 € | −5 % |
Informácie o výrobku "CAN-8423-G CANopen Slave Remote I/O Unit with 4 I/O Slots"
The CAN-8423-G is a CANopen slave remote I/O unit for engineers who need distributed digital and analogue I/O on a CAN bus. It implements the CiA 301 v4.02 communication profile and the CiA 401 v2.1 device profile, so it can be integrated with standards-based CANopen masters.
Four expansion slots accept I-87K or I-8000 series DI, DO, AI and AO modules, letting you tailor the I/O mix to the application. An EDS file can be generated dynamically with the CAN-8423 Utility, and the node ID is set by rotary switch across the range 1 to 255. PDO transmission can be event triggered, remotely requested, cyclic or acyclic SYNC.
Isolation of 3000 VDC (DC-to-DC) and 2500 Vrms (photo-coupler), together with a built-in 120 Ω terminator, helps with bus design. The unit operates from -25 to +75 °C and provides an RS-232 console port.
Applications
- Industrial Machinery
- Laboratory Equipment & Research
- Restaurant Appliances
- Maritime
- Medical
- Specialty Vehicles
| Product type: | Remote I/O unit |
|---|---|
| Interface: | CAN bus |
| Protocol: | CANopen |
| Ports: | 1 x RS-232 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| I/O Expansion | |
| Slots | 4 slots |
| COM Ports | |
| Ports | 1 x RS-232 (console) |
| CANopen | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02, CiA 401 v2.1 |
| Node ID | 1 ~ 255 |
| No. of PDOs | 32 RxPDO , 32 TxPDO |
| Error Control | Node Guarding protocol / Heartbeat Producer |
| NMT | Slave |
| EMCY Message | Yes |
| Mechanical | |
| Dimensions (mm) | 188 x 132 x 91 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
