PISO-MN200 PCI Motionnet Master Card, Dual-line Motion and I/O Control
PCI Motionnet master card with two RJ-45 lines for distributed motion and I/O control of up to 128 slave modules, plus 8 parallel inputs and 4 parallel outputs.
- Two Motionnet RJ-45 lines with software-selectable transfer speeds of 2.5, 5, 10 or 20 Mbps
- Distributed motion control for up to 128 axes and distributed I/O for up to 4096 points
- 8 parallel digital inputs (12-24 V, NPN or PNP) with 3000 Vrms isolation
- 4 parallel digital outputs (NPN or PNP) with 3000 Vrms isolation
- Optional quadrature encoder input for linear scale or manual pulse generator
- Interrupts on input change of state and communication error
300,00 EUR per piece
| 1–9 pcs | 300,00 EUR | |
|---|---|---|
| 10–30 pcs | 291,00 EUR | −3 % |
| 31+ pcs | 285,00 EUR | −5 % |
Termékinformációk "PISO-MN200 PCI Motionnet Master Card, Dual-line Motion and I/O Control"

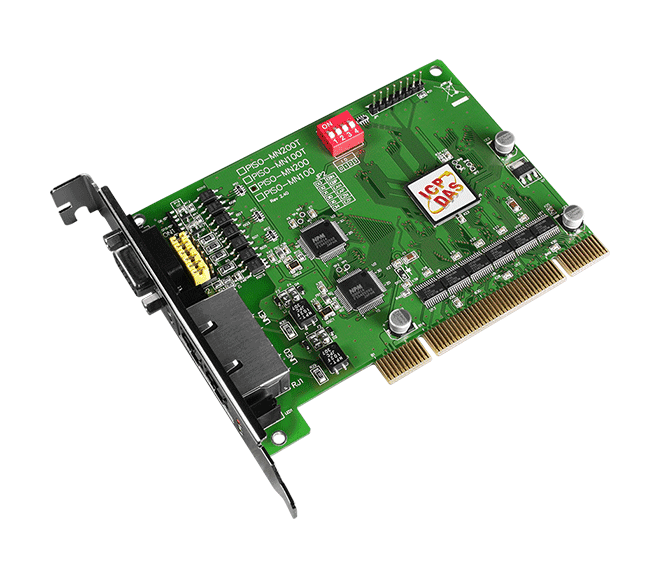

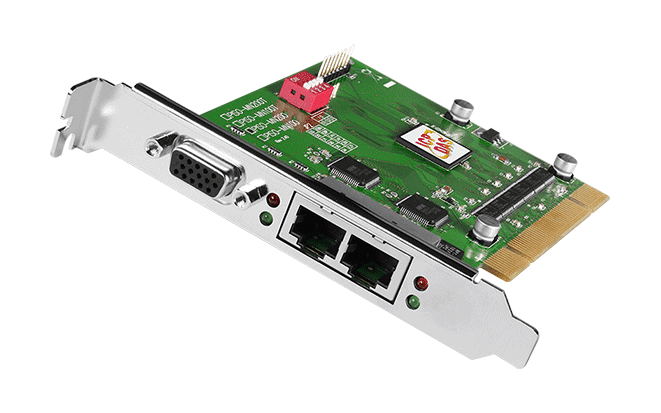

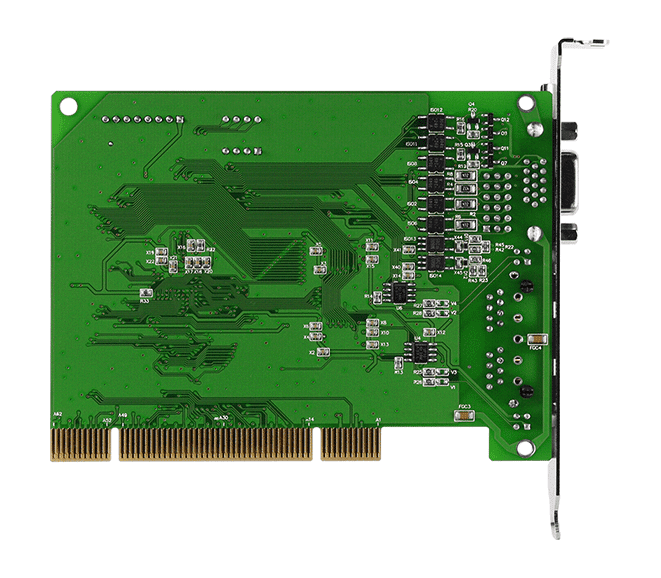

PISO-MN200 CR is a 32-bit/33 MHz PCI master card that drives two Motionnet serial lines from a single host PC. It suits machine automation projects that need distributed motion control and remote I/O on one bus, with up to 128 slave modules across both lines.
Each Motionnet line can run distributed I/O or motion control. In I/O-only use, the card exchanges signals with up to 2048 points on 64 local devices within 0.97 msec. For motor control, it can manage up to 64 axes for continuous positioning, zero return and multi-axis interpolation. The card also provides 8 parallel digital inputs and 4 parallel digital outputs for fast, direct I/O alongside the serial network.
Setup is handled through the EzGO Utility, and the Windows drivers support VC, VB and BCB development. The CR ordering code is the RoHS-compliant version with RJ-45 Motionnet connectors. Check the Motionnet cable length limits against your chosen transfer speed and slave count before installation.
Applications
- Machine automation
- Distributed motion control
- Distributed I/O control
- Multi-axis positioning and interpolation
| Product type: | PCI master card |
|---|---|
| Interface: | PCI |
| Protocol: | Motionnet |
| Digital inputs: | 8 |
| Digital outputs: | 4 |
| Ports: | 2 |
| Isolation: | 3000 Vrms |
| Operating temperature: | 0 ~ +60 °C |
Specifications
| Software | |
|---|---|
| OS Support | Windows 11 64-bit Windows 7/10 32/64-bit Windows XP/2000 32-bit |
| Development | VC/VB/BCB |
| Utility | EzGo Utility |
| Hardware | |
| Connector | HD D-Sub 15-pin x 1 |
| LED Indicators | |
| Status | Connection (green) Communication Error (red) |
| General | |
| Interrupts | Input Change of State, Communication Error |
| Digital Input | |
| Channels | 8 |
| Type | 12-24 V, NPN or PNP |
| Isolation | 3000 Vrms |
| Input Impedance | 4.7 KΩ |
| Digital Output | |
| Channels | 4 |
| Type | NPN or PNP |
| Isolation | 3000 Vrms |
| PC Bus | |
| Type | 32-bit/33 MHz universal PCI-Bus |
| Motionnet | |
| Communication Connectors | RJ-45 x 2 |
| Transfer Speed | 2.5, 5, 10, 20 Mbps (Software controlled) |
| Length | Max. 100 M (20 Mbps; 32 Slave modules) Max. 50 M (20 Mbps; 64 Slave modules) Max. 100 M (10 Mbps; 64 Slave modules) |
| Protocol | Motionnet (Half-duplex RS-485) |
| Power | |
| Consumption | +5 V @ 500 mA |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +80°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
