LX-8331 3-Slot Linux PAC with x86 Dual-Core CPU
Linux-based PAC with an x86 dual-core CPU, three I/O expansion slots and dual Gigabit Ethernet, combining control, HMI and data acquisition in one unit. Operating range -25 ~ +75 °C.
- x86 dual-core CPU at 1.0 GHz on a Linux kernel 3.2 platform
- Three I/O expansion slots for I-8KW and I-87KW series modules
- Two 10/100/1000 Mbit Ethernet ports plus VGA, USB 2.0 and RS-232/RS-485
- Isolated serial ports rated 3000 VDC, including RS-232 console
- LinPAC SDK with GCC toolchain and libraries for C application development
- Dual watchdog timer and 64-bit hardware serial number for software protection
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Δεν είναι πλέον διαθέσιμο
Πληροφορίες για το προϊόν "LX-8331 3-Slot Linux PAC with x86 Dual-Core CPU"

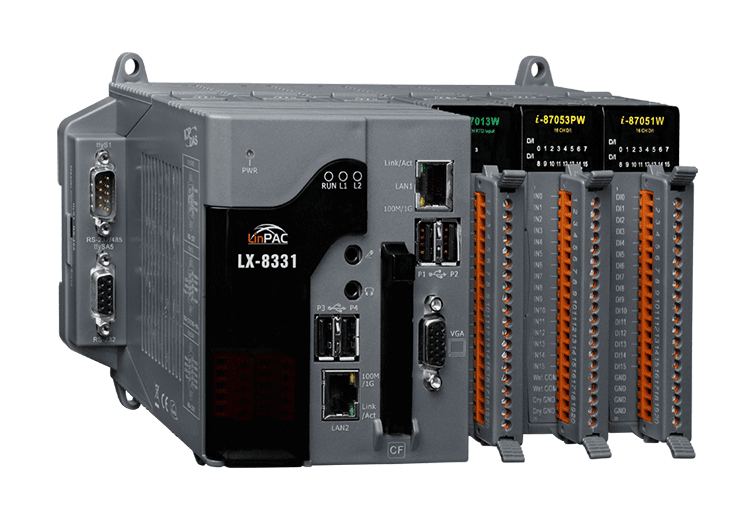

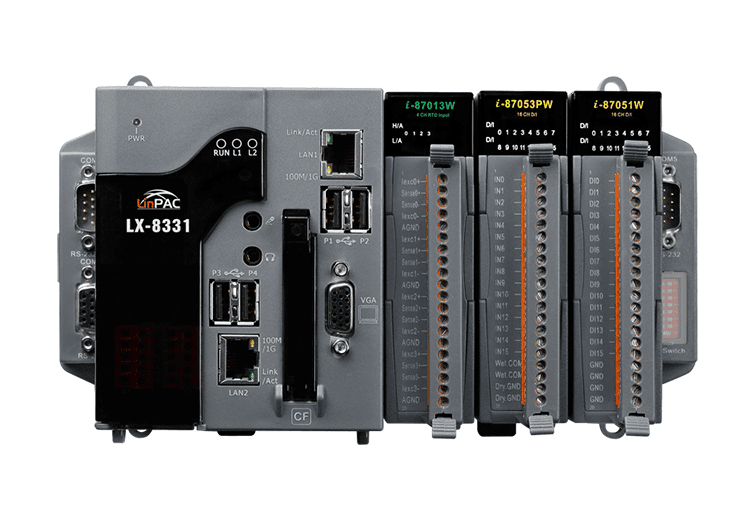

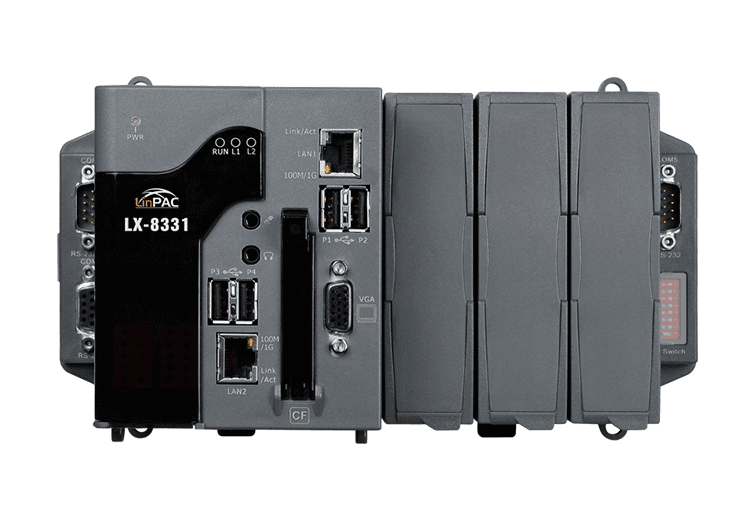

The LX-8331 CR brings computing, I/O and operator interface together in a single 3-slot Linux controller. It suits projects that need control, data acquisition and a local display handled by one PAC rather than a separate PC and I/O stack.
Hardware centres on a 1.0 GHz x86 dual-core CPU with 2 GB DDR3 SDRAM, a 32 GB mSATA SSD and a CF card slot for program storage. Connectivity includes a VGA output, four USB 2.0 host ports, two 10/100/1000 Mbit Ethernet ports and isolated RS-232 and RS-485 interfaces. Three slots accept I-8KW and I-87KW series I/O modules, and remote expansion is possible over RS-485 and FRnet.
The controller runs Linux kernel 3.2 with built-in web, FTP, Telnet and SSH services. The LinPAC SDK provides a GCC-based toolchain and libraries for developing I/O applications in C. Dual watchdog timers, a 64-bit hardware serial number for software protection and redundant power inputs support reliable long-term operation.
Applications
- Integrated HMI, data acquisition and control in a single PAC
- Local I/O expansion with I-8KW and I-87KW modules
- Remote I/O expansion over Ethernet and RS-485 I/O modules
- Standalone controller storing user programs on CF card or USB storage
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 |
| Isolation: | 3000 VDC (serial ports) |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifications
| Software | |
|---|---|
| OS | Linux kernel 3.2 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | x86 dual-core (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | • Flash: mSATA slot with one 32 GB SSD • CF card slot |
| Non-Volatile Memory | • MRAM 512 KB • EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | 1280 × 1024 to 1920 × 1080 for 16:9 display 640 × 480 to 1024 × 768 for 4:3 display |
| LED Indicators | |
| Status | 1 x Power 1 x Run (Programmable) 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-8KW, I-87KW series |
| Slots | 3 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | Yes (8 bits) |
| Power Switch | Yes |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Console, 3000 VDC, Isolated) 1 x RS-232 (3000 VDC, Isolated) 1 x RS-485 (3000 VDC, Isolated) 1 x RS-232/485 (3000 VDC, Isolated) |
| USB | |
| Ports | 4 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (1 kV Isolated) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 15.6 W (0.65 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 231 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
