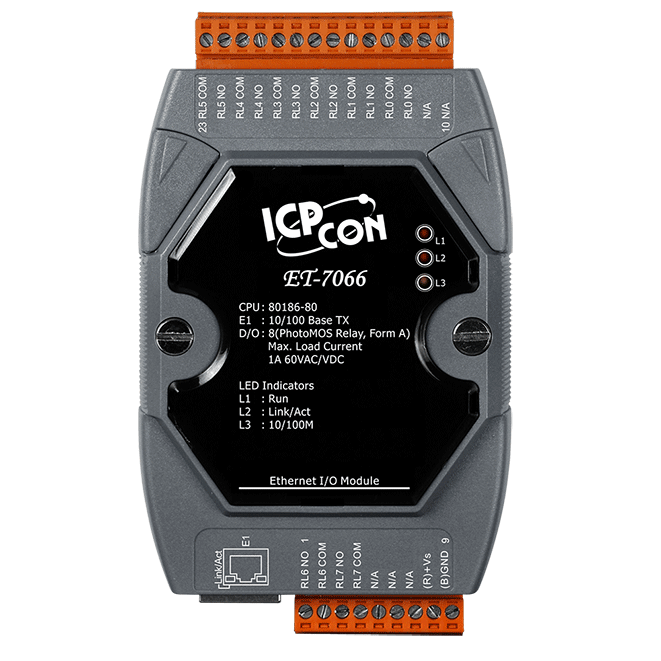

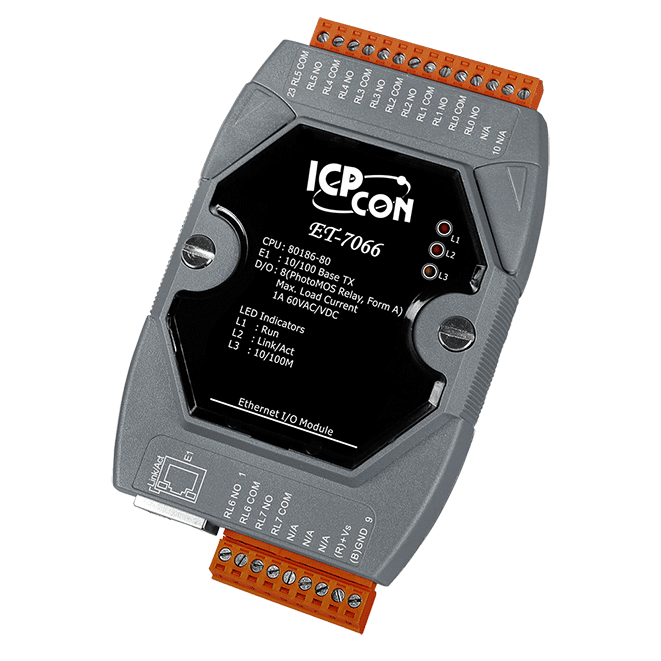

ET-7066 Ethernet I/O Module, 8-ch PhotoMOS Relay Output
Ethernet I/O module with eight form A PhotoMOS relay outputs, Modbus TCP and Modbus UDP support, a built-in web server and DIN-rail mounting for remote switching.
- Eight form A PhotoMOS relay outputs with programmable power-on and safe values
- Modbus TCP and Modbus UDP protocol support over one 10/100 Base-TX RJ-45 port
- Built-in web server and web HMI for configuration and status
- Dual watchdog for module and communication, programmable
- I/O pair connection and communication security with ID, password and IP filter access control
- Optical isolation: 3000 VDC I/O, 1500 VDC Ethernet
196,00 € per piece
| 1–9 pcs | 196,00 € | |
|---|---|---|
| 10–30 pcs | 190,00 € | −3 % |
| 31+ pcs | 186,00 € | −5 % |
Πληροφορίες για το προϊόν "ET-7066 Ethernet I/O Module, 8-ch PhotoMOS Relay Output"
ET-7066 CR is an Ethernet remote I/O module that switches loads through eight form A PhotoMOS relay outputs. Each output has a programmable power-on value and safe value, so the outputs can be set to a defined state at power-up and in the safe state.
The module suits engineers who need to switch hazardous-voltage circuits from a networked controller. Its optical isolation is rated at 3000 VDC for the I/O and 1500 VDC for Ethernet. The relay channels are not isolated from each other. Modbus TCP and Modbus UDP are both supported, and the built-in web server and web HMI allow configuration and status checks.
Watchdog functions cover both the module and the communication link, and the watchdog is programmable. The module is powered from a +10 ~ +30 VDC terminal block with reverse polarity protection, and it mounts on DIN-rail. The operating range is -25 ~ +75 °C.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Relay outputs: | 8 |
| Ports: | 1 |
| Isolation: | I/O 3000 VDC, Ethernet 1500 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | Run, Ethernet |
| Relay Output | |
| Channels | 8 |
| Type | PhotoMOS Relay, Form A |
| Contact Rating | 60V/1.0A (Operating Temperature -25 ~ +40°C) 60V/0.8A (Operating Temperature +40 ~ +60°C) 60V/0.7A (Operating Temperature +60 ~ +75°C) |
| Leakage Current | 1 μA |
| Operate Time | 2.0 ms (max.) |
| Release Time | 0.3 ms (max.) |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 2.6 W (max.) |
| Powered from Terminal Block | +10 ~ +30 VDC |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
