The PET-7017-10 is a PoE-powered Ethernet analog input module for engineers who need voltage or current measurement on a networked I/O node. Its inputs can be set as 10 differential or 20 single-ended channels in software, and each channel can be given its own range, so one module can serve mixed sensor types on the same network.Each channel offers a choice of voltage ranges from ±150 mV to ±10 V and current ranges of ±20 mA, 0 ~ 20 mA and 4 ~ 20 mA, selected with jumpers. Resolution is 16-bit, and the module has two sampling modes: normal mode at 10 Hz total and fast mode at 50 Hz total. Open wire detection is available for 4 ~ 20 mA inputs, and differential channels are rated for 240 Vrms overvoltage protection.Configuration and monitoring are handled through a built-in web server with Web HMI, and the module supports Modbus TCP and Modbus UDP. Access is controlled by ID, password and IP filter. The unit is powered either from PoE (IEEE 802.3af, Class 1) or from a +12 ~ +48 VDC terminal block, and it mounts on a DIN rail.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment

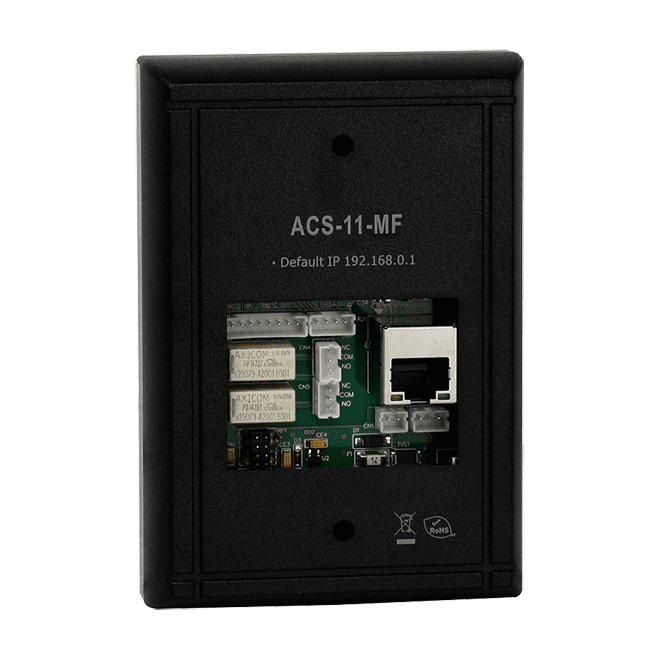

The ACS-11-MF is a proximity card reader with a built-in keypad, designed for access control installations where credentials are presented by card, by code or by both. It reads ISO 14443 A cards including Mifare Classic, Ultralight and DESFire, and gives spoken feedback through its built-in voice message function.Beyond credential reading, the unit controls an electric door lock, monitors door position and supports elevator floor control of up to 32 floors. It stores up to 8192 cards and keeps access records. An anti-sabotage micro switch and a choice of Ethernet, RS-485 or CAN communication suit it to engineers building networked access control systems.The reader is wall mounted and rated for an operating temperature of -20 ~ +60 °C. Its 2.0 W consumption and reverse polarity protection simplify integration into existing low-voltage access control wiring.ApplicationsCommunity door accessElevator floor controlAccess control systems

The ACS-11-MF-TC CR is an access control reader that accepts both keypad entry and ISO 14443 A RFID cards, covering Mifare Classic, Ultralight and DESFire card types. It combines door access control, voice guidance and elevator floor control in a single unit, making it suited to community door access and lift control schemes.Door hardware can be driven directly through two Form C relay outputs, while four digital inputs and a door position detection function report door status. A built-in micro switch provides anti-sabotage detection, and the reader stores access records with a capacity of 8192 cards.Communication is available over a 10/100Base-T(X) Ethernet port, an RS-485 port and a CAN bus interface, with a built-in RTC and WDT. The unit is wall mounted and measures 83 x 120 x 28 mm (W x L x H), with an operating range of -20 ℃ to +60 ℃.ApplicationsCommunity door access controlElevator floor controlAccess control systems

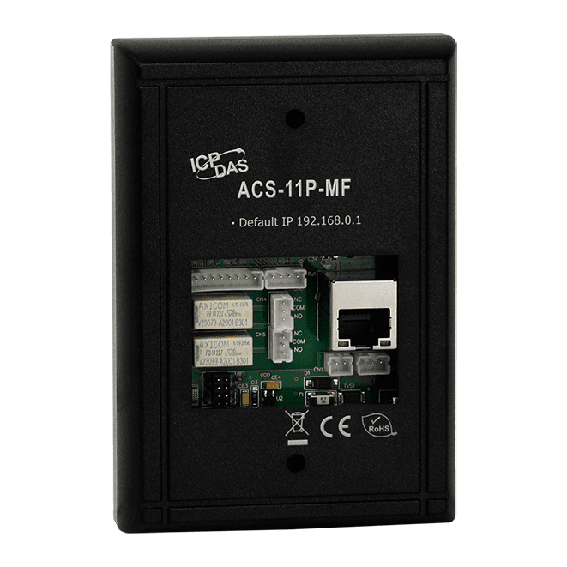

ACS-11P-MF CR is a keypad and RFID proximity card reader for access control systems. It combines door access control, voice guidance and elevator floor control in one unit, which suits community door access and lift control installations.The reader accepts ISO 14443 A cards, including Mifare Classic, Ultralight and DESFire, and offers electric door lock control with door position detection. An anti-sabotage micro switch, access records and built-in RTC and WDT help protect the installation and support day-to-day management. Communication is available over Ethernet with PoE or over RS-485, and the unit is powered from PoE (IEEE 802.3af, Class 1).Engineers will find the following points useful when specifying this reader:Keypad and RFID induction control for access decisionsTwo digital inputs and two Form C relay outputs for door and floor controlEthernet 10/100Base-T(X) with PoE, plus a single RS-485 port (9600 baud, N, 8, 1)Wall mounting, with the outlet box fitting noted in the source data for the United StatesApplicationsCommunity door access controlElevator floor controlAccess control systems for managed buildings
