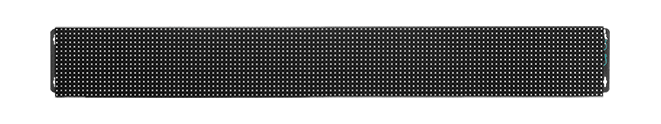

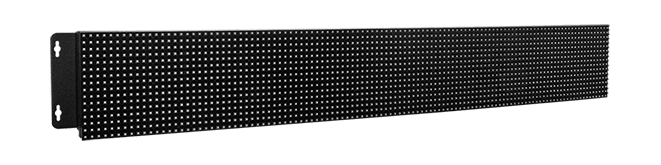

iKAN-116-IP65 LED Message Display, Single-Row 16/8-Character, Modbus
Single-row industrial LED message display with a 16-character ASCII (8 Unicode) line, Modbus control, 128 stored messages and an IP65 aluminium housing for wall mounting.
- Single row of 16 ASCII or 8 Unicode characters, 7 display colours
- Modbus control to show or hide messages and send encoded strings
- Stores 128 common messages with user-defined priority levels
- Combines text with up to 168 variables in a single message
- Built-in real-time clock, 24-hour format
- 2 × RJ-45 10/100 Base-TX switch ports and 2 × RS-485 Modbus RTU ports
1.926,00 EUR per piece
| 1–9 pcs | 1.926,00 EUR | |
|---|---|---|
| 10–30 pcs | 1.868,00 EUR | −3 % |
| 31+ pcs | 1.829,00 EUR | −5 % |
Informații despre produs "iKAN-116-IP65 LED Message Display, Single-Row 16/8-Character, Modbus"
The iKAN-116-IP65 CR is a single-row LED message display for industrial control panels, factory floors and other environments where a PLC needs to show live status text. It is controlled over Modbus and can show or hide stored messages or send encoded strings for display, so no custom display programming is needed on the PLC side.
The display stores up to 128 common messages, each with a user-defined priority, and can combine fixed text with up to 168 variables within one message. It offers seven colours (red, blue, yellow, green, light blue, purple and white), a built-in real-time clock and a web-based user interface for configuration and message editing from a PC, smartphone or tablet.

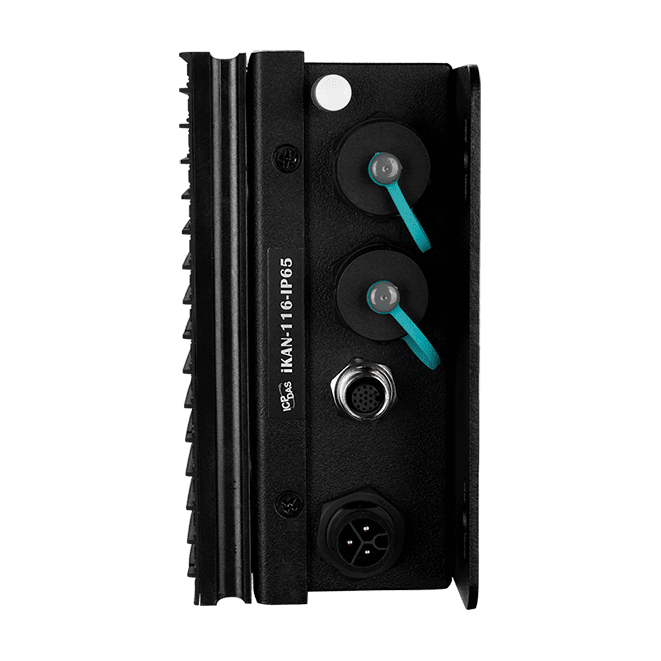

Communication is provided by two RJ-45 switch ports (10/100 Base-TX) and two RS-485 ports for Modbus RTU master or slave use. The aluminium housing is rated IP65 and the unit is designed for wall mounting, with a 100 ~ 240 VAC power input. Certifications listed for the series are CE, UKCA, FCC, RoHS and WEEE.
Applications
- PLC HMI and real-time PLC data display as text messages
- Indoor air quality display from ICP DAS DL sensor modules (CO, CO2, PM2.5, temperature and humidity)
| Product type: | LED message display |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | Modbus |
| Ports: | 2 × RJ-45, 2 × RS-485 |
| Power input: | 100 ~ 240 VAC |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | Wall |
| Housing: | Aluminum |
Specifications
| Display | |
|---|---|
| Size | iKAN-116-IP65: Row: 1，ASCII Characters: 16，Unicode Characters: 8 iKAN-124-IP65: Row: 1，ASCII Characters: 24，Unicode Characters: 12 |
| Real Time Clock | Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year |
| Character Sets | 16 x 16 Unicode or 8 x 16 ASCII |
| Color | Red, Blue, Yellow, Green, Light Blue, Purple or White |
| Data Pool | 40 Coil values, 64 Float values, and 64 Integer values |
| Message Pool | 128 common messages with user-defined priority levels, Up to 20 Unicode characters or 50 ASCII characters each * For complex characters such as Thai, Hindi or Arabic, please contact our sales team. |
| Ethernet | |
| Ports | 2 × RJ-45, 10/100 Base-TX, Switch Ports |
| Protocol | Modbus Master/Slave, Modbus TCP Master/Slave, GCI, HTTP/HTTPS, MQTT, EtherNet/IP and Redfish |
| Configuration | Web-based User Interface |
| COM Ports | |
| Ports | 2 × RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | N81, E81, O81 |
| Protocol | Modbus RTU Master/Slave |
| Power | |
| Input Range | 100 ~ 240 VAC |
| Consumption | iKAN-116-IP65: 0.3 A @ AC 120 V iKAN-124-IP65: 0.35 A @ AC 120 V |
| Mechanical | |
| Casing | Aluminum |
| Dimensions (mm) | iKAN-116-IP65: 1347 x 160 x 91 (W x L x D) iKAN-124-IP65: 1989 x 160 x 91 (W x L x D) |
| Installation | Wall mounting |
| Weight | iKAN-116-IP65: 4.6 Kg iKAN-124-IP65: 5.4 Kg |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -10 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
