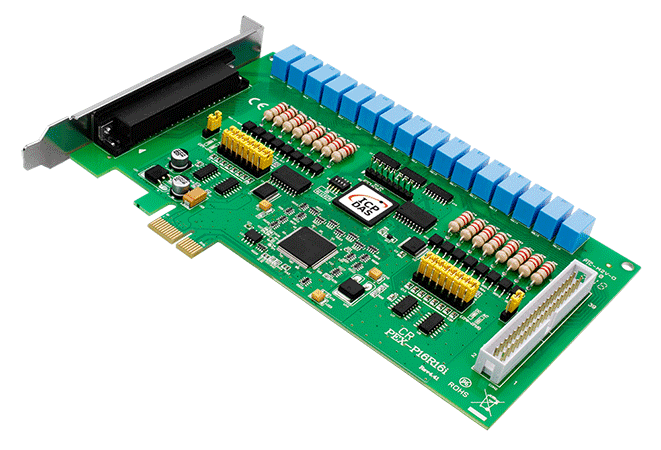

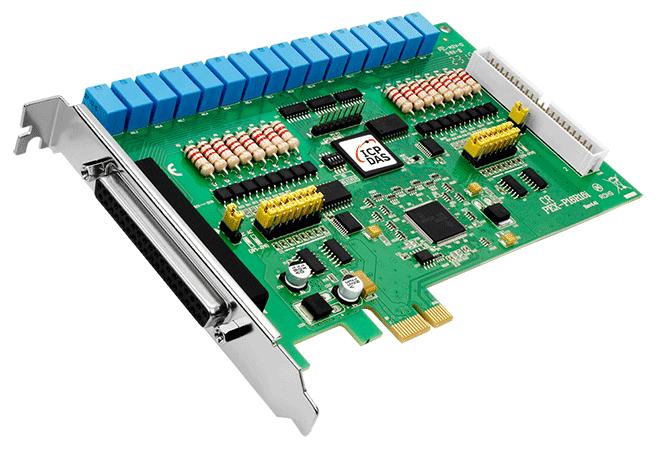

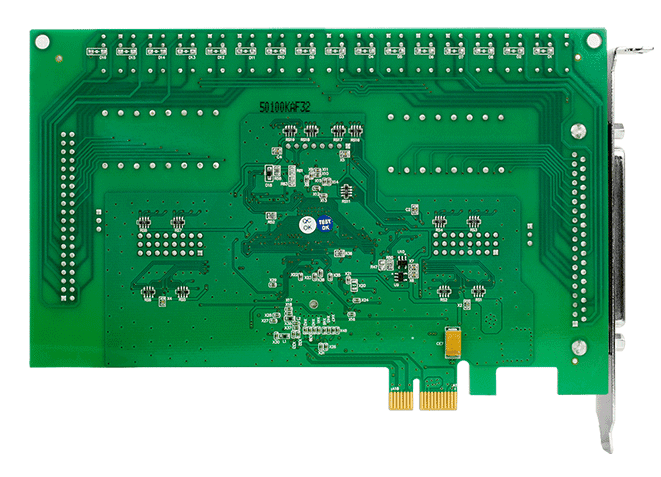

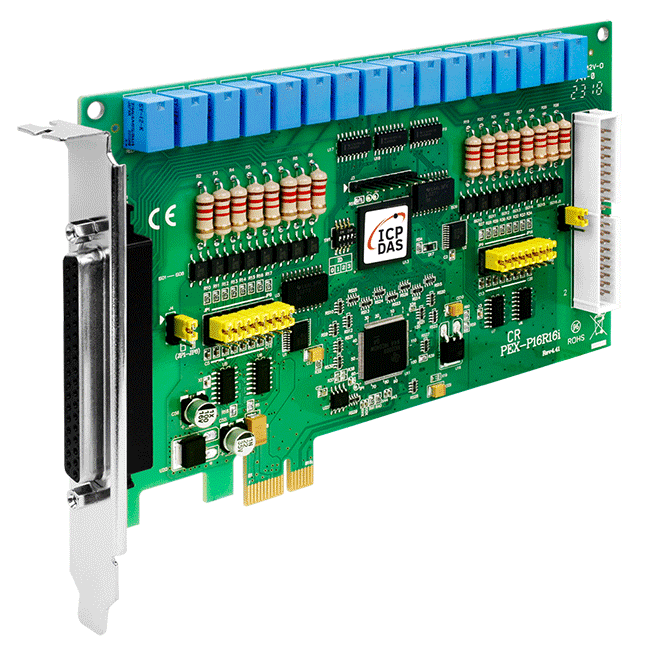

PEX-P16R16i PCI Express Board, 16-ch Isolated DI and 16-ch Relay Output
PCI Express x1 digital I/O board with 16 photocoupler-isolated digital inputs (3750 Vrms) and 16 relay outputs for switching and alarm control.
- PCI Express x1 interface with 8-bit data bus
- 16 isolated digital inputs with 3750 Vrms photocoupler isolation
- Sink/source compatible inputs, AC/DC 5 to 24 V ON voltage level
- Selectable DC signal input filter and AC signal input with filter
- 16 relay outputs: 8 SPDT and 8 SPST
- Relay contact rating AC 120 V at 0.5 A, DC 24 V at 1 A
266,00 EUR per piece
| 1–9 pcs | 266,00 EUR | |
|---|---|---|
| 10–30 pcs | 258,00 EUR | −3 % |
| 31+ pcs | 253,00 EUR | −5 % |
Informații despre produs "PEX-P16R16i PCI Express Board, 16-ch Isolated DI and 16-ch Relay Output"
The PEX-P16R16i CR is a PCI Express x1 digital I/O board that pairs 16 isolated digital inputs with 16 relay outputs. Each input is photocoupler isolated to 3750 Vrms, so field signals can float and ground loops are avoided. The relays suit switching external devices on and off, driving external relays or small power switches, and activating alarms.
The board is intended as an easy replacement for the PISO-P16R16U, with no changes needed to the software or driver. The digital inputs accept AC or DC signals from 5 to 24 V and can be used with sink or source wiring. A selectable DC input filter and an AC input filter are available, and a 4-bit Card ID set by an SMD switch helps identify boards in multi-card systems.
The relay bank provides eight SPDT and eight SPST contacts rated AC 120 V at 0.5 A or DC 24 V at 1 A. The package includes one CA-4037W cable and two CA-4002 D-Sub connectors. The board operates from 0 to +60°C.
Applications
- Switching ON/OFF state of external devices
- Driving external relays or small power switches
- Activating alarms
- Replacing PISO-P16R16U boards in existing PCI-based systems
| Product type: | DAQ board |
|---|---|
| Interface: | PCI Express x1 |
| Digital inputs: | 16 |
| Relay outputs: | 16 |
| Isolation: | 3750 Vrms |
| Operating temperature: | 0 ~ +60°C |
Specifications
| Hardware | |
|---|---|
| Connector | Female DB37x 1 40-pin box header x 1 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 16 |
| Type | Wet Contact Photocoupler |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz) |
| OFF Voltage Level | AC/DC 0 ~ 1 V |
| Response Speed | Without Filter: 50 kHz (Typical) With Filter: 0.455 kHz(Typical) |
| Trigger Mode | Static Update |
| Isolation | 3750 Vrms |
| Relay Output | |
| Channels | 16 |
| Type | 8 SPDT, 8 SPST |
| Contact Rating | AC:120 [email protected] A DC: 24 V@1 A |
| Operate Time | 1 ms (Typical) |
| Release Time | 7 ms (Typical) |
| Electrical Endurance | 100,000 ops. |
| Mechanical Endurance | 5,000,000 ops. |
| PC Bus | |
| Type | PCI-Express x 1 |
| Data Bus | 8-bit |
| Power | |
| Consumption | 450 mA @ +3.3 V 200 mA @ +12 V |
| Mechanical | |
| Dimensions (mm) | 112 x 172 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
