ECAT-2045 EtherCAT SubDevice I/O Module, Isolated 16-ch DO (Sink, NPN)
EtherCAT SubDevice module with 16 isolated NPN sink digital outputs, 700 mA per channel, two RJ-45 bus ports for daisy chain wiring and DIN-rail mounting.
- 16 isolated digital outputs, open collector sink (NPN), 700 mA per channel
- Load voltage +3.5 VDC to +50 VDC, isolation 3750 Vrms
- Two RJ-45 EtherCAT ports supporting daisy chain, star, line and ring topologies
- Up to 100 m between stations (100BASE-TX), 200 us cycle time, distributed clocks
- ESD protection ±4 kV contact for each channel
- LED indicators for output status, plus output status in the process data
150,00 EUR per piece
| 1–9 pcs | 150,00 EUR | |
|---|---|---|
| 10–30 pcs | 145,00 EUR | −3 % |
| 31+ pcs | 142,00 EUR | −5 % |
Informații despre produs "ECAT-2045 EtherCAT SubDevice I/O Module, Isolated 16-ch DO (Sink, NPN)"

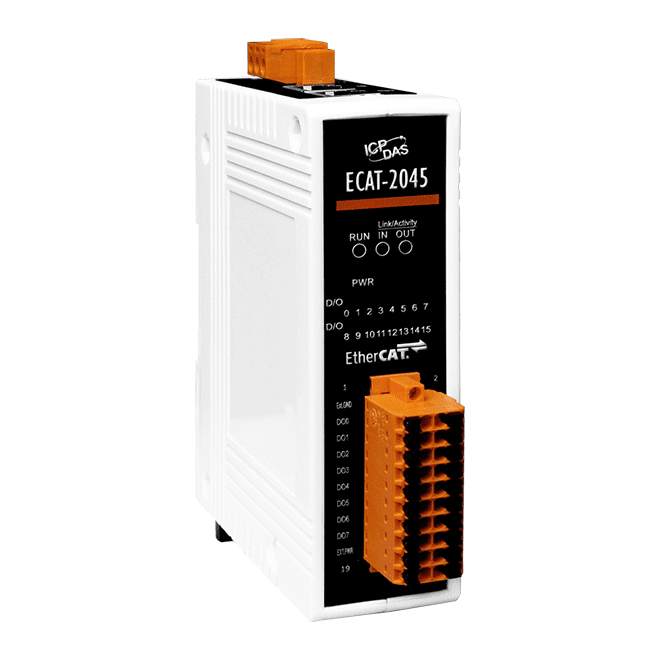

The ECAT-2045 CR adds 16 isolated digital outputs to an EtherCAT network. Each output is an open collector sink (NPN) rated at 700 mA per channel with a load voltage of +3.5 VDC to +50 VDC, so it can drive a wide range of DC loads directly from the module's outputs.

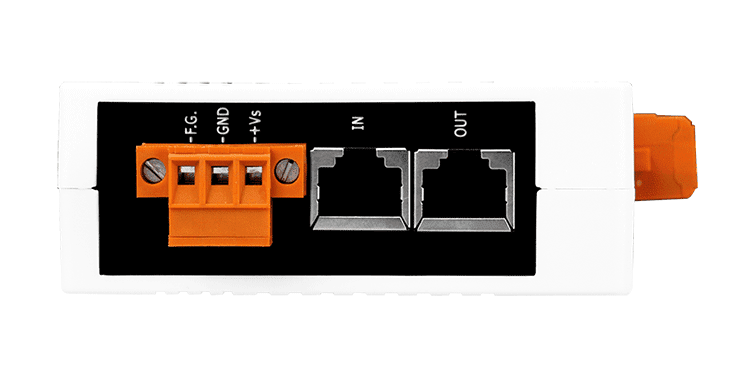

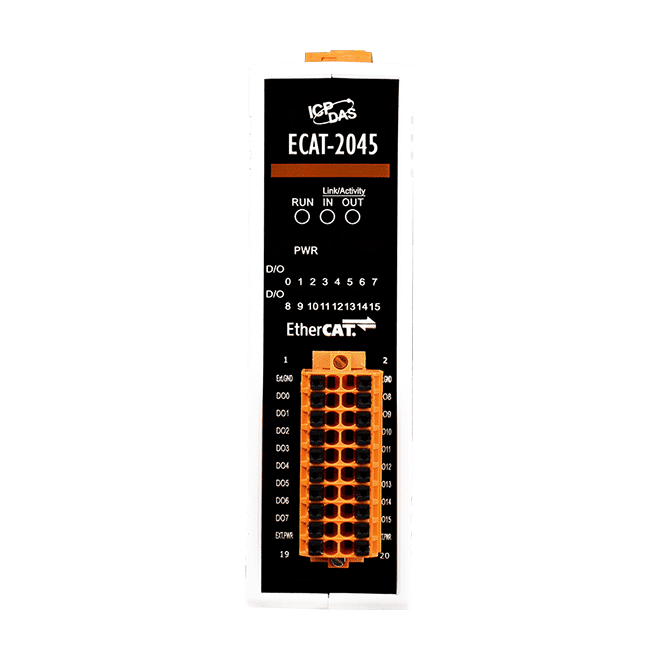

Two RJ-45 ports allow the module to be daisy chained, and it can be deployed in star, line or ring topologies. Stations can be up to 100 m apart over 100BASE-TX, and the module supports distributed clocks with a 200 us cycle time. Output status is visible both in the process data and on LED indicators beside each output.
The module has been verified with the EtherCAT conformance test tool, so it can be configured by any EtherCAT Main Device or configurator. Its ESD protection of ±4 kV contact per channel and 3750 Vrms isolation suit installations with electrically noisy environments. It mounts on DIN-rail and operates from -25 ~ +75 °C.
Applications
- Semiconductor tools
- Metal forming
- Packaging
- Injection molding
- Assembly systems
- Printing machines
- Robotics
| Product type: | Digital output module |
|---|---|
| Interface: | EtherCAT |
| Protocol: | EtherCAT |
| Digital outputs: | 16 |
| Ports: | 2 x RJ-45 |
| Isolation: | 3750 Vrms |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifications
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: ±1 kV Class A; Power: ±1 kV Class A |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Channel |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Digital Output | |
| Channels | 16 |
| Type | Open Collector (Sink , NPN) |
| Load Voltage | +3.5 VDC ~ +50 VDC |
| Load Current | 700 mA/Channel |
| Isolation | 3750 Vrms |
| EtherCAT | |
| Ports | 2 x RJ-45 |
| Distance Between Stations | 100 m Max. (100Base-TX) |
| Data Transfer Medium | Ethernet/EtherCAT cable (Min. CAT5), shielded |
| Cycle Time | 200 us |
| Distributed Clocks | Yes |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 4 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 108 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
