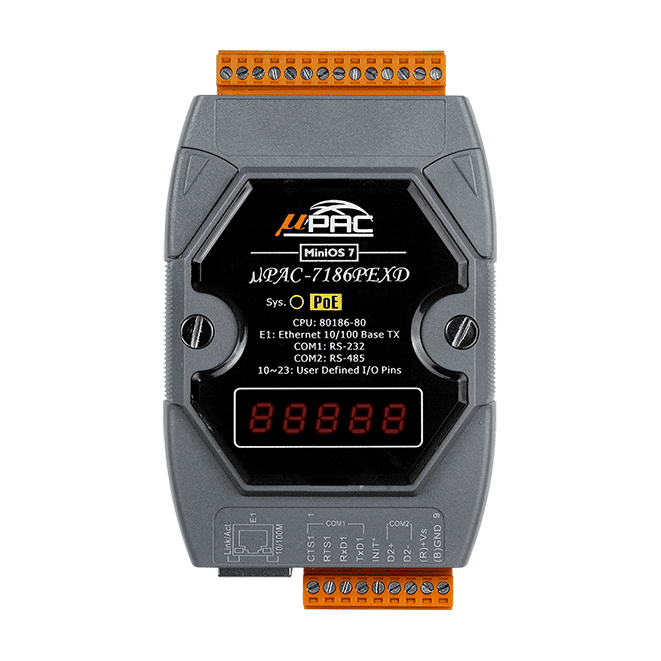

uPAC-7186PEXD-G Ethernet PAC with MiniOS7, PoE and 7-Segment LED Display
Palm-size Ethernet PAC with an 80186 CPU running MiniOS7, RS-232/RS-485 serial ports, PoE (IEEE 802.3af Class 1) and a 5-digit 7-segment LED display.
- Built-in MiniOS7 framework with C language software development tool kits
- 80186-compatible CPU at 80 MHz, with 512 KB Flash, 16 KB EEPROM and 512 KB SRAM
- One 10/100 Base-TX Ethernet port plus one RS-232 and one RS-485 serial port (115200 bps max.)
- IEEE 802.3af-compliant Power over Ethernet, Class 1, over standard Category 5 cable
- 2 dry contact digital inputs and 2 open-collector digital outputs
- I/O expansion bus interface supporting one X-board
303,00 € per piece
| 1–9 pcs | 303,00 € | |
|---|---|---|
| 10–30 pcs | 294,00 € | −3 % |
| 31+ pcs | 288,00 € | −5 % |
Informacje dot. produktu "uPAC-7186PEXD-G Ethernet PAC with MiniOS7, PoE and 7-Segment LED Display"
The uPAC-7186PEXD-G is a compact programmable automation controller for engineers who need to bring serial devices onto Ethernet without building a full PLC system. It pairs an 80186-compatible CPU running at 80 MHz with the built-in MiniOS7 framework, so application code written in C can run directly on the controller.
Connectivity centres on one 10/100 Base-TX Ethernet port and two serial ports, RS-232 and RS-485. Two dry contact digital inputs and two open-collector digital outputs cover simple discrete signalling, and an I/O expansion bus interface allows one X-board to add further I/O functions. Power can be taken from a PoE source over a standard Category 5 cable, or from a +12 ~ 48 VDC supply.
The unit includes a 5-digit 7-segment LED display, a system/PoE status LED, a real-time clock, a watchdog timer and a 64-bit hardware serial number. It is intended for DIN-rail mounting and operates from -25 ~ +75 °C.
Applications
- Adding Ethernet and Internet connectivity to serial devices
- Modbus communication with SCADA software
- Distributed local control with DIN-rail mounted I/O expansion
- Remote data collection in industrial environments with PoE power
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Digital inputs: | 2 |
| Digital outputs: | 2 |
| Ports: | 3 |
| PoE: | IEEE 802.3af Class 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System/PoE |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 2.5 W |
| Powered from PoE | IEEE 802 3af, Class 1 |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
