tPET-C4 Tiny PoE Ethernet Module, 4-ch Sink (NPN) Digital Output
Compact PoE Ethernet module with four open-collector sink (NPN) digital outputs, controlled over Modbus TCP/UDP or MQTT. DIN-rail mounted, with a 12 to 48 VDC backup input.
- Four open-collector sink (NPN) digital outputs, 100 mA per channel
- Modbus TCP, Modbus UDP and MQTT protocol support
- PoE (IEEE 802.3af, Class 1) or +12 to +48 VDC terminal block power input
- Dual-watchdog with predefined Safe Value and DO power-on value
- I/O pair connection (push and pull) over Ethernet
- Built-in web server for configuration and firmware update via Ethernet
112,00 € per piece
| 1–9 pcs | 112,00 € | |
|---|---|---|
| 10–30 pcs | 109,00 € | −3 % |
| 31+ pcs | 107,00 € | −4 % |
Informacje dot. produktu "tPET-C4 Tiny PoE Ethernet Module, 4-ch Sink (NPN) Digital Output"

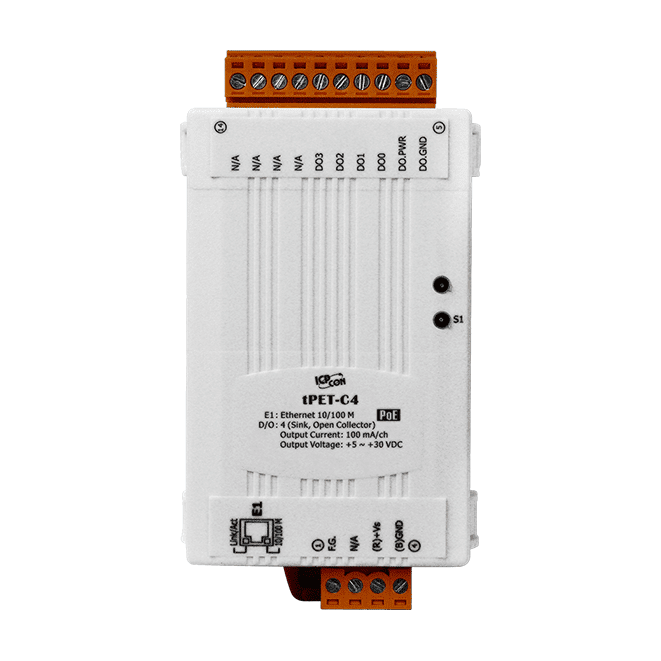

tPET-C4 CR is a compact Ethernet digital output module for engineers who need to switch loads remotely over a 10/100 Mbps network. Its four open-collector outputs are configured as sink (NPN) type and rated at 100 mA per channel, with a load voltage range of +5 to +30 VDC.
The module supports Modbus TCP, Modbus UDP and MQTT, so it can be integrated with HMI, SCADA, PLC and other software systems. It can also be set up for I/O pair connection, where it writes to a remote digital output device based on the status of local inputs. A dual-watchdog arrangement covers the module firmware and the host controller, and the outputs can move to a predefined Safe Value if the host fails.
Power can be taken from PoE (IEEE 802.3af, Class 1) over a standard Category 5 cable, or from a +12 to +48 VDC terminal block input, which provides redundancy. The module has a built-in web server for configuration and supports firmware updates via Ethernet. It measures 52 x 95 x 27 mm and is designed for DIN-rail mounting.
Applications
- Factory automation
- Building automation
- Home automation
- Remote maintenance
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Digital outputs: | 4 |
| Ports: | 1 |
| PoE: | Yes |
| Isolation: | 3750 Vrms |
| Power input: | PoE (IEEE 802.3af, Class 1), +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet, PoE |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 to +30 VDC |
| Load Current | 100 mA/channel |
| Overvoltage Protection | +60 VDC |
| Isolation | 3750 Vrms |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| PoE | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 1.0 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
