DN-8468UB 4-Axis Stepper/Servo Motion Control Terminal Board
Four-axis screw terminal daughter board for ICP DAS I-8094 series and PISO-PS400 motion controllers, with photo-coupled isolation and interchangeable axis connectors.
- Four-axis pulse command interface for stepper or servo motor drives
- High-speed photo-coupling isolation to protect the motion controller
- Snap-on terminal connectors that can be swapped to change axis assignment without rewiring
- Encoder feedback, home, near-home, limit-switch and servo-enable signals per axis
- Onboard power module with 20 ~ 26 VDC input, 12 W consumption at 24 VDC
- Power LED and status LEDs for home and limit switches
245,00 € per piece
| 1–9 pcs | 245,00 € | |
|---|---|---|
| 10–30 pcs | 238,00 € | −3 % |
| 31+ pcs | 233,00 € | −5 % |
Informacje dot. produktu "DN-8468UB 4-Axis Stepper/Servo Motion Control Terminal Board"

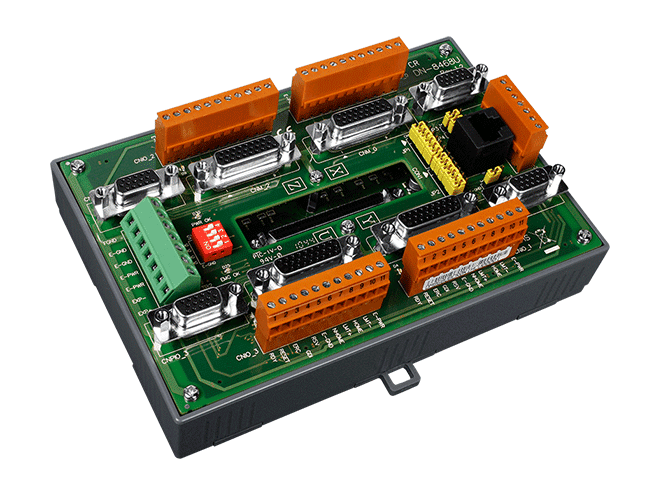

DN-8468UB CR is a terminal daughter board for ICP DAS 4-axis motion controllers, including the I-8094, I-8094F, I-8094A, I-8094H and PISO-PS400. It breaks out pulse command, encoder feedback and limit signals for four axes onto snap-on terminal blocks, which keeps field wiring tidy and makes the board easier to service.
Each axis has its own group of signals covering pulse outputs, encoder feedback, home, near-home and limit inputs, and a servo-enable output. Onboard isolating circuitry protects the controller, and the terminal connectors can be swapped between axes to reassign axis functions without rewiring. The board is intended for general purpose drivers as well as Mitsubishi and Panasonic motor amplifiers.
An onboard power module accepts a wide 20 ~ 26 VDC input and supplies the voltages needed by the board circuitry. Power and status LEDs show the state of power, home and limit switches. Where the controller supports FRnet, the board also provides an FRnet terminal for high-speed serial I/O expansion.
Applications
- Multi-axis stepper motor control with ICP DAS 4-axis motion controllers
- Servo motor positioning using pulse command drives
- Motion systems using general purpose, Mitsubishi or Panasonic motor amplifiers
- Integration of encoder feedback and limit switch signals into motion control panels
| Product type: | Motion control terminal board |
|---|---|
| Interface: | Screw terminal |
| Isolation: | Photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Specifications
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 162 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
