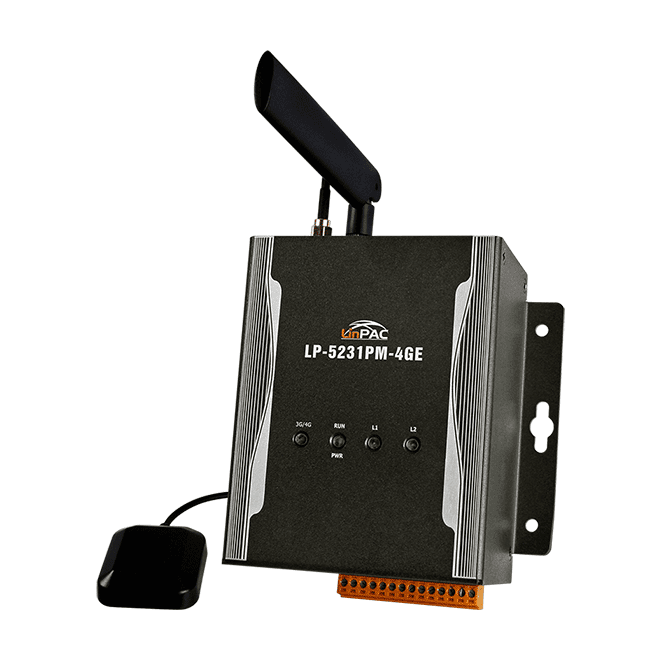

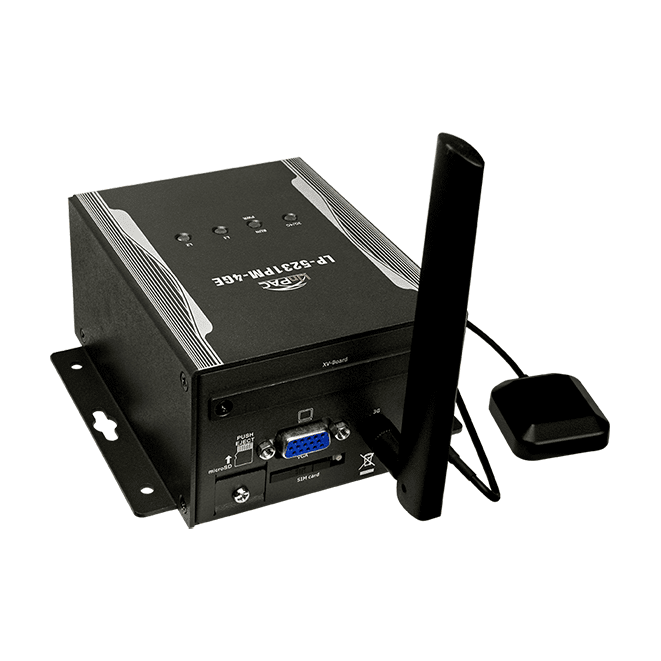

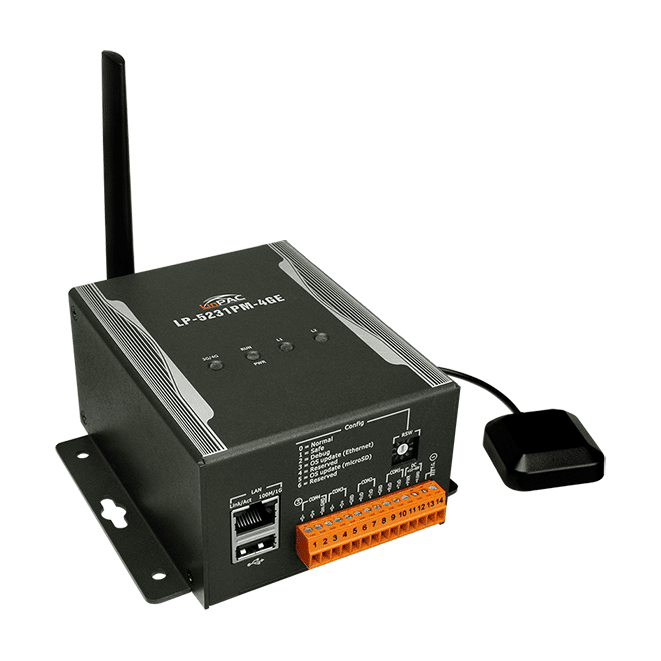

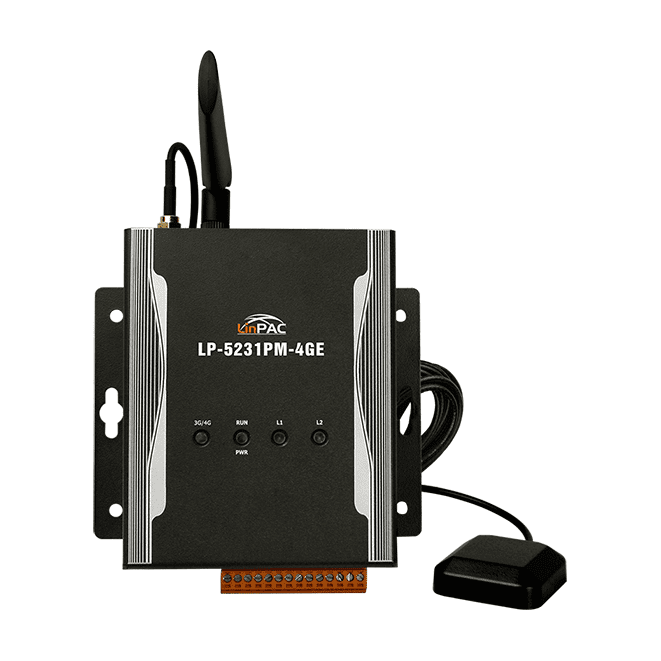

LP-5231PM-4GE 4G Linux PAC with Cortex-A8 CPU, GPS and XV-Board Expansion
Linux-based PAC with a 1 GHz Cortex-A8 CPU, integrated 4G modem, GPS, four serial ports and XV-Board I/O expansion for remote data links and control.
- 1 GHz Cortex-A8 CPU running Linux kernel 3.2.14
- Industrial tri-band 4G modem for cellular data links
- Four RS-232/485 serial ports, one RS-485 port isolated to 2500 VDC
- XV-Board I/O expansion bus
- Built-in GPS/GNSS receiver, 32 channels, NMEA 0183
- 512 MB DDR3 SDRAM, 512 MB flash and microSD socket with 4 GB card (up to 32 GB microSDHC)
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Niet langer beschikbaar
Productinformatie "LP-5231PM-4GE 4G Linux PAC with Cortex-A8 CPU, GPS and XV-Board Expansion"
The LP-5231PM-4GE CR is a Linux-based programmable automation controller that pairs a 1 GHz Cortex-A8 processor with an integrated 4G modem. It suits engineers who need to run custom control or data-logging software at a remote site and send the results over a cellular network.
Connectivity centres on a single RJ-45 10/100/1000 Ethernet port, four RS-232/485 serial ports (one RS-485 port is isolated to 2500 VDC) and a USB 2.0 host port. The XV-Board expansion bus adds I/O, and GPS/GNSS reception with NMEA 0183 output is built in. Software development is supported by the LinPAC SDK, a GCC-based toolchain with LinPAC libraries.
- Cortex-A8 CPU at 1 GHz with 512 MB DDR3 SDRAM and 512 MB flash
- Industrial tri-band 4G module for cellular data transfer from remote instruments and control systems
- Four RS-232/485 serial ports, with one RS-485 port isolated to 2500 VDC
- XV-Board I/O expansion bus
- Embedded web, FTP, Telnet and SSH servers on a Linux kernel 3.2.14
- Dual watchdog timer, real-time clock and 64-bit hardware serial number for software copy protection
Applications
- Remote data acquisition over 3G/4G cellular networks
- Transfer of live or packet data from remote instruments, meters and control systems
- SMS and GPRS/3G/4G connection applications
- Multi-serial device connectivity
- Ethernet-networked control with embedded web and SSH access
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB 2.0 |
| Protocol: | NMEA 0183 |
| Ports: | 1 LAN, 4 serial, 1 USB |
| Isolation: | RS-485 port 2500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifications
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | • Flash 512 MB • microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | FRAM 64 KB |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | Up to 1280 x 1024 |
| LED Indicators | |
| Status | 1 x Power 1 x Run 2 x Programmable |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps; Upload: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max. 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max. 5.4 Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| 4G System | |
| Data Transmission Rate | Download Max. 100 Mbps; Upload Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 |
| GPS/GNSS | |
| Channels | 32 |
| Protocol | NMEA 0183 |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Console, Non-isolated) 1 x RS-232, Non-isolated 1 x RS-485, Non-isolated 1 x RS-485 (2500 VDC, Isolated) |
| USB | |
| Ports | 1 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 6.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
