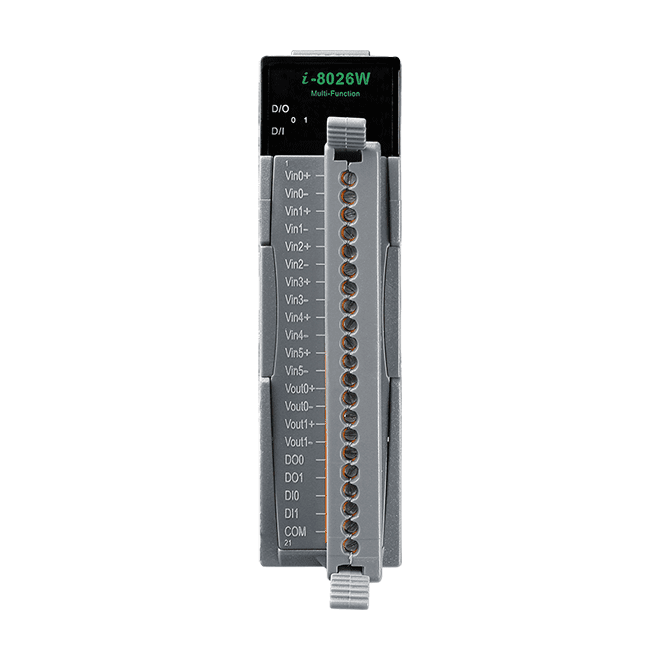

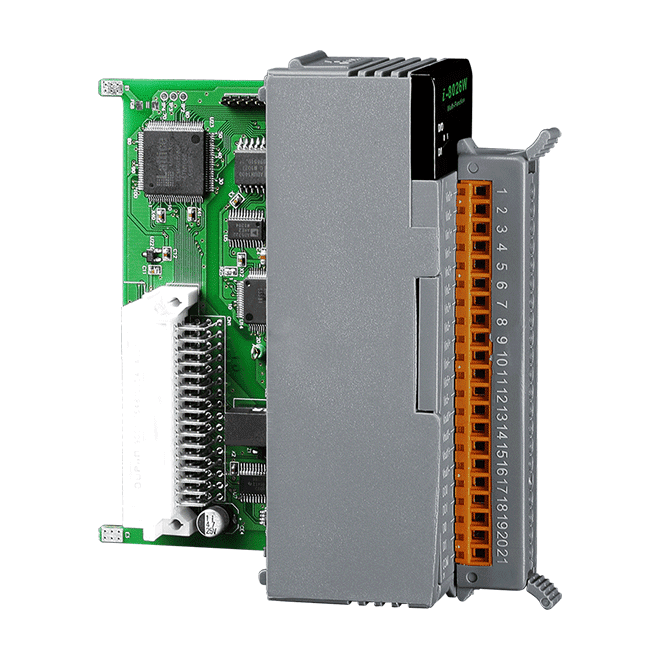

I-8026W-G Multifunction I/O Module, 6-ch AI, 2-ch AO, 2-ch DI and 2-ch DO
Multifunction I-8K/I-87K series module with 6 analogue inputs, 2 analogue outputs, 2 digital inputs and 2 digital outputs. Input and output voltage or current is selected by jumper.
- 6 analogue inputs, 2 analogue outputs, 2 digital inputs and 2 digital outputs on one module
- Individual channel configuration, so each analogue input can use its own range
- Jumper-selectable voltage or current input and output
- Input ranges from ±10 VDC to ±1.25 VDC and ±20 mA, with 240 Vrms overvoltage protection
- 12-bit analogue outputs with ±10 VDC, ±5 VDC, 0 ~ 10 VDC, 0 ~ 5 VDC and 0 ~ 20 mA ranges
- Overload and short-circuit protection on digital outputs
€ 353,00 per piece
| 1–9 pcs | € 353,00 | |
|---|---|---|
| 10–30 pcs | € 342,00 | −3 % |
| 31+ pcs | € 335,00 | −5 % |
Productinformatie "I-8026W-G Multifunction I/O Module, 6-ch AI, 2-ch AO, 2-ch DI and 2-ch DO"
The I-8026W-G (ordering code I-8026W-G CR) puts six analogue inputs, two analogue outputs, two digital inputs and two digital outputs into a single module of the I-8K/I-87K series. It suits engineers who need mixed signal types on one High Profile unit rather than several separate cards.
Each analogue input can be configured for its own range, from ±10 VDC down to ±1.25 VDC, or ±20 mA, and voltage or current operation is set with jumpers. The analogue outputs provide 12-bit resolution across ±10 VDC, ±5 VDC, 0 ~ 10 VDC, 0 ~ 5 VDC and 0 ~ 20 mA. Each analogue input withstands overvoltage up to 240 Vrms.
The digital inputs are wet contact, sink/source type, with an ON level of +10 ~ 30 VDC. The digital outputs are isolated open collector sinks rated +5 ~ +30 VDC at 100 mA per channel, with overload and short-circuit protection. Intra-module isolation is 2500 VDC.
Applications
- Industrial automation
- Industrial machinery
- Building automation
- Food and beverage systems
- Semiconductor fabrication
- Control systems
| Product type: | Multifunction I/O module |
|---|---|
| Isolation: | 2500 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 4 x I/O |
| Analog Input | |
| Channels | 6 |
| Range | ±10 V, ±5 V ±2.5, ±1.25, ±20 mA (Jumper Select) |
| Resolution | 12-bit |
| Accuracy | 0.2% of FSR ±1LSB |
| Sampling Rate | Max. to 9k Samples/Sec. |
| Input Impedance | >2 MΩ |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Analog Output | |
| Channels | 2 |
| Range | ±10 V, ±5 V, 0 ~ 10 V, 0 ~ 5 V, 0 ~ 20 mA (Jumper Select) |
| Resolution | 12-bit |
| Accuracy | ±0.2% of FSR |
| Voltage Output Capability | 10 VDC @ 20 mA |
| Digital Input | |
| Channels | 2 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ 30 VDC |
| OFF Voltage Level | +4 VDC Max. |
| Digital Output | |
| Channels | 2 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
| Consumption | 1.8 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
