iKAN-116 Single-Row LED Message Display, 16/8-Character, Modbus
Single-row, 16/8-character industrial LED message display with web configuration, 128 priority-based messages and Modbus RTU and Modbus TCP support for PLC-driven text output.
- Single-row LED display showing 16 ASCII or 8 Unicode characters per line
- Seven display colours: red, blue, yellow, green, light blue, purple and white
- Stores up to 128 common messages with user-defined priority levels
- Text and variables combined in one message, drawn from a 168-value data pool
- Web-based configuration over HTTP/HTTPS from a PC, smartphone or tablet
- Two RS-485 ports for Modbus RTU master/slave, plus two RJ-45 switch ports for Modbus TCP
1 329,00 € per piece
| 1–9 pcs | 1 329,00 € | |
|---|---|---|
| 10–30 pcs | 1 289,00 € | −3 % |
| 31+ pcs | 1 263,00 € | −5 % |
Produkta informācija "iKAN-116 Single-Row LED Message Display, 16/8-Character, Modbus"

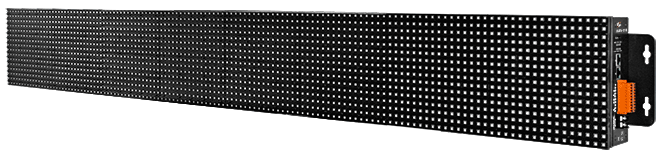

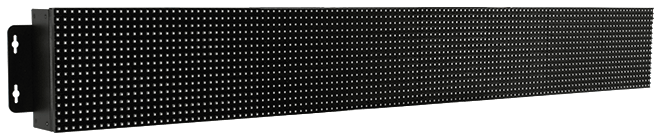

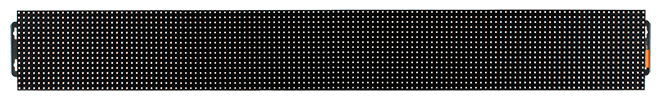

The iKAN-116 CR is a single-row industrial LED message display for PLC-driven text output. It shows up to 16 ASCII or 8 Unicode characters per line, in seven selectable colours. A PLC can show or hide stored messages, or send encoded strings for display, over Modbus.
Messages and variables are configured through a web-based interface. The display stores up to 128 common messages with user-defined priority levels, and each message can combine text with live variables from a shared data pool of 40 coil, 64 float and 64 integer values. A built-in real-time clock supports date and time display.

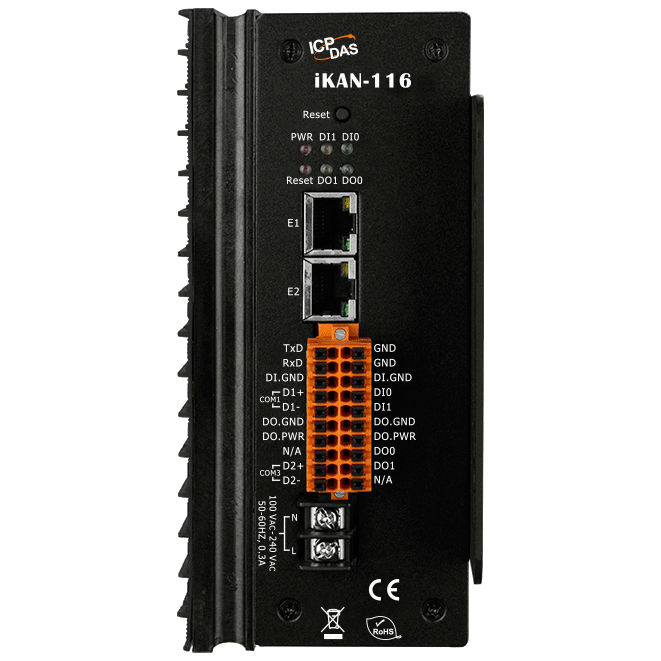

Connectivity includes two RS-485 ports for Modbus RTU master or slave operation, and two RJ-45 switch ports for Ethernet. The unit has an aluminium casing for wall mounting, accepts 100 ~ 240 VAC, and is rated for 0 ~ +60°C operation. It carries CE, UKCA, FCC, RoHS and WEEE certification marks.
Applications
- PLC HMI text messaging, showing real-time PLC data as text on the display
- Indoor air quality display using ICP DAS DL sensor modules, including CO, CO2, PM2.5, temperature and humidity
| Product type: | LED message display |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | Modbus |
| Ports: | 2 RJ-45, 2 RS-485 |
| Power input: | 100 ~ 240 VAC |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | Wall |
| Housing: | Aluminium |
Specifications
| Display | |
|---|---|
| Size | iKAN-116: Row: 1，ASCII Characters: 16，Unicode Characters: 8 iKAN-124: Row: 1，ASCII Characters: 24，Unicode Characters: 12 |
| Real Time Clock | Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year |
| Character Sets | 16 x 16 Unicode or 8 x 16 ASCII |
| Color | Red, Blue, Yellow, Green, Light Blue, Purple or White |
| Data Pool | 40 Coil values, 64 Float values, and 64 Integer values |
| Message Pool | 128 common messages with user-defined priority levels, Up to 20 Unicode characters or 50 ASCII characters each * For complex characters such as Thai, Hindi or Arabic, please contact our sales team. |
| Ethernet | |
| Ports | 2 × RJ-45, 10/100 Base-TX, Switch Ports |
| Protocol | Modbus Master/Slave, Modbus TCP Master/Slave, GCI, HTTP/HTTPS, MQTT, EtherNet/IP and Redfish |
| Configuration | Web-based User Interface |
| COM Ports | |
| Ports | 2 × RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | N81, E81, O81 |
| Protocol | Modbus RTU Master/Slave |
| Power | |
| Input Range | 100 ~ 240 VAC |
| Consumption | iKAN-116: 0.3 A @ AC 120 V iKAN-124: 0.35 A @ AC 120 V |
| Mechanical | |
| Casing | Aluminum |
| Dimensions (mm) | iKAN-116: 1347 x 160 x 73 (W x L x H) iKAN-124: 1987 x 160 x 73 (W x L x H) |
| Installation | Wall mounting |
| Weight | iKAN-116: 4 Kg iKAN-124: 4.6 Kg |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -10 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
