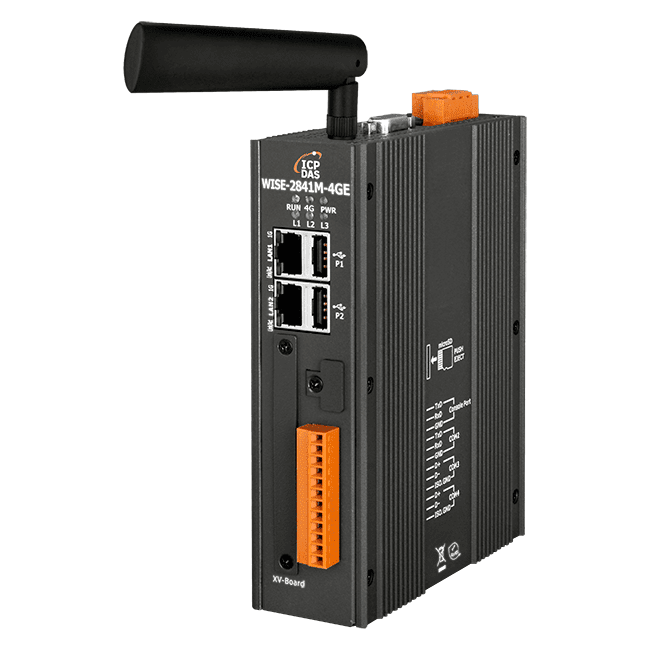

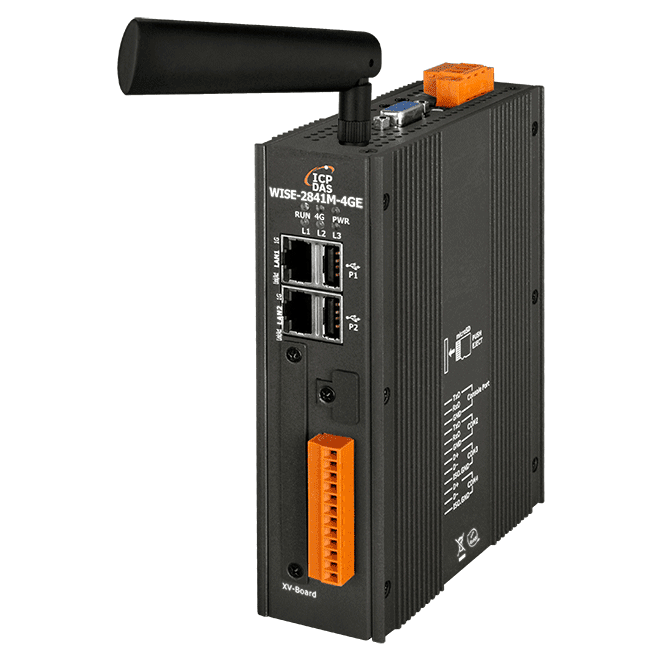

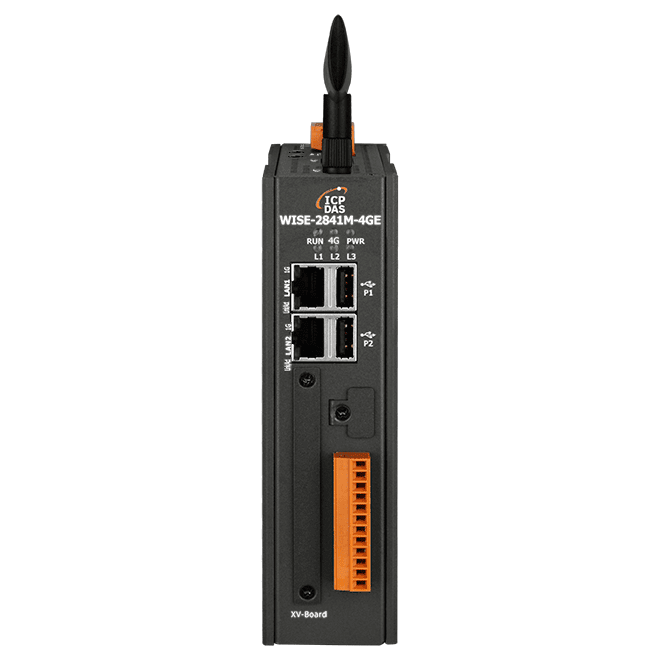

WISE-2841M-4GE IIoT Edge Controller, Metal Case with 4G Communication
Browser-configured IIoT edge controller with 4G cellular connectivity, IF-THEN-ELSE logic and support for Modbus TCP/RTU, MQTT, SNMP and encrypted protocols, in a metal case.
- Browser-based configuration with IF-THEN-ELSE logic rules, requiring no extra software tool
- Supports DCON or Modbus RTU slave modules (up to 32) and Modbus TCP slave modules (up to 16)
- Modbus TCP/RTU, FTP, MQTT and SNMP v2c/v3 protocols, with HTTPS, SFTP and FTPS encryption
- 4G wireless data communication with FDD LTE B1/B3/B5/B7/B8/B20 bands
- Two RJ-45 10/100/1000 Base-TX Ethernet ports and RS-485 COM3 and COM4 ports with 2500 VDC isolation
- Timer, schedule and data logger functions, with real-time message sending via LINE Notify, Telegram, WeChat, SMS and Email
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Vairāk nav pieejams
Produkta informācija "WISE-2841M-4GE IIoT Edge Controller, Metal Case with 4G Communication"
The WISE-2841M-4GE is a metal-case IIoT edge controller that is configured through a web browser, so no additional software tool is needed. Control logic is built on web pages rather than written as code, and IF-THEN-ELSE rules run directly on the controller. It suits engineers who want local automation logic, I/O monitoring and data handling at the edge without custom programming.
On the connectivity side, the unit combines RS-485 and Modbus slave support with 4G wireless communication. It can read DCON, Modbus RTU and Modbus TCP slave modules, and it can send data and messages over Modbus TCP/RTU, FTP, MQTT and SNMP v2c/v3. HTTPS, SFTP and FTPS are available for encrypted access, and a VPN function allows connection to devices on a secured network.
This ordering code is the 4G variant with a frequency band for EMEA, Korea, Thailand, India and Taiwan. The 4G system supports FDD LTE bands B1/B3/B5/B7/B8/B20, and the controller also supports a range of cloud platforms, including Amazon Web Services, Microsoft Azure and IBM Bluemix, as well as the IoTstar Cloud Management Software.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis and Testing Equipment
| Product type: | IIoT Edge Controller |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP/RTU, MQTT, SNMP |
| Ports: | 2 |
| Isolation: | 2500 VDC (COM3, COM4) |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall / DIN-rail |
| Housing: | Metal |
Specifications
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client (Support SFTP/FTPS) & Server (Support TLS Encryption) • SNMP v2c/v3 & SNMP Trap • MQTT Client (Message Publish & Subscribe; Support SSL/TLS) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS • VPN |
| Function | • Web Interface for Configuration (Support HTTPS) • IF-THEN-ELSE Logic operation (Unlimited rule supported) • I/O channel monitoring and control • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Data Logger operation (Unlimited set supported) • Internal Register operation (100 set supported) • Recipe operation (Unlimited set supported) • Instant message sending function (LINE Notify, Telegram, WeChat) • non-SSL & SSL Email sending function • SMS message sending function • SNTP Time Synchronization |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Amazon Web Services IoT Cloud platform • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | Quad-core ARM CPU, 1.6 GHz/Core |
| Storage Expansion | Built-in one 32 GB microSD card (support up to 2 TB microSDXC card) |
| LED Indicators | |
| Status | 1 x Power 1 x Running 1 x Modem Status |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps; Upload: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max. 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max. 5.4 Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| 4G System | |
| Data Transmission Rate | Download: Max. 100 Mbps; Upload: Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 MHz |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | I-7000/M-7000/tM/DL/CL/DLW/LC/IR/iSN Series Module WISE-7100/(P)ET-7000/WF-2000 Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| IP Camera | iCAM Series Module |
| Ethernet | |
| Ports | RJ-45 x 2, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 15W |
| Mechanical | |
| Dimensions (mm) | 42 × 164 × 129 (W x L x H) |

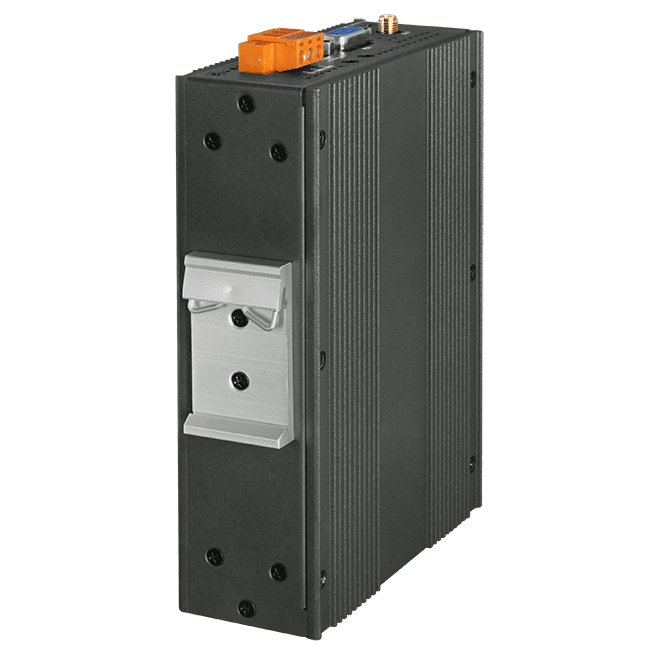

| Installation | Wall Mounting / DIN-Rail Installation; Optional |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
