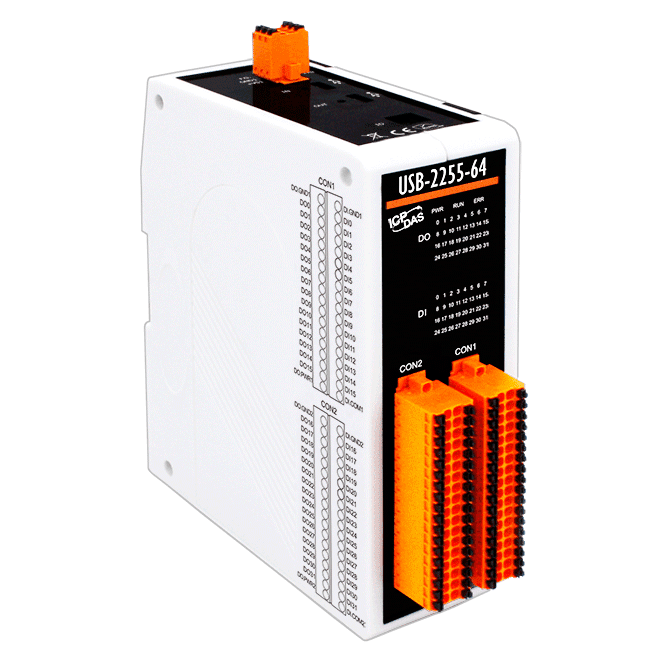

USB-2255-64 USB I/O Module, Isolated 32-ch DI and 32-ch DO
USB 2.0 I/O module with 32 isolated digital inputs (dry or wet contact, 32-bit counters) and 32 NPN sink digital outputs. Plug-and-play with no driver needed.
- 32 digital inputs (dry or wet contact, selectable by wiring) with 32-bit counter capability
- 32 open-collector NPN sink digital outputs, 500 mA per channel
- Programmable power-on and safe values with dual watchdog (1.6 s hardware, programmable software)
- Two-port USB 2.0 hub supporting daisy-chain of up to 5 nodes
- Dual +10 to +30 VDC power inputs for redundancy
- Plug-and-play operation without a driver; lockable USB cable included
325,00 € per piece
| 1–9 pcs | 325,00 € | |
|---|---|---|
| 10–30 pcs | 316,00 € | −3 % |
| 31+ pcs | 309,00 € | −5 % |
Produkta informācija "USB-2255-64 USB I/O Module, Isolated 32-ch DI and 32-ch DO"

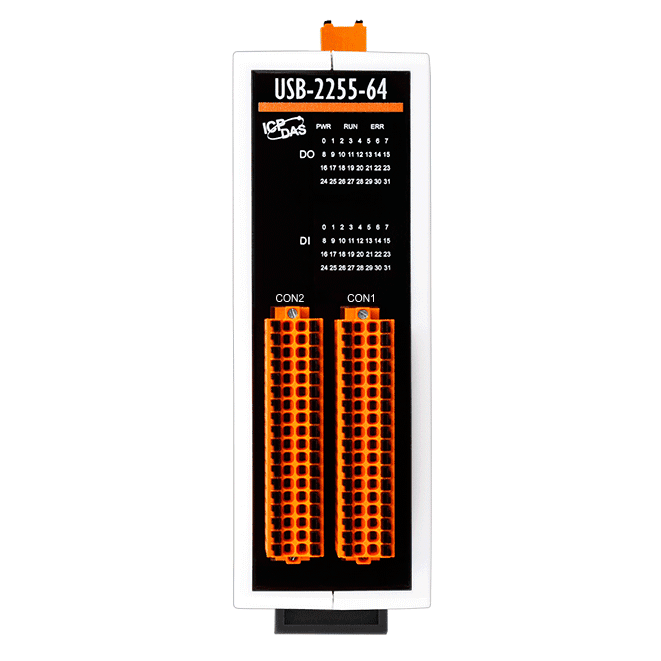

The USB-2255-64 adds 32 digital inputs and 32 digital outputs to a PC over USB 2.0. Every input can be wired for dry or wet contacts and can run as a 32-bit counter, which suits event counting and status monitoring. The 32 outputs are open-collector, sink (NPN), rated 3.5 to 50 VDC load voltage and 500 mA per channel, and LED indicators show the state of each channel.
Reliability features include a hardware watchdog with a 1.6 second timeout and a programmable software watchdog. Power-on and safe values can be set for the digital outputs, so the module can hold a defined state if the host stops responding. The module accepts dual +10 to +30 VDC power inputs, so a second supply can take over if the first is interrupted.

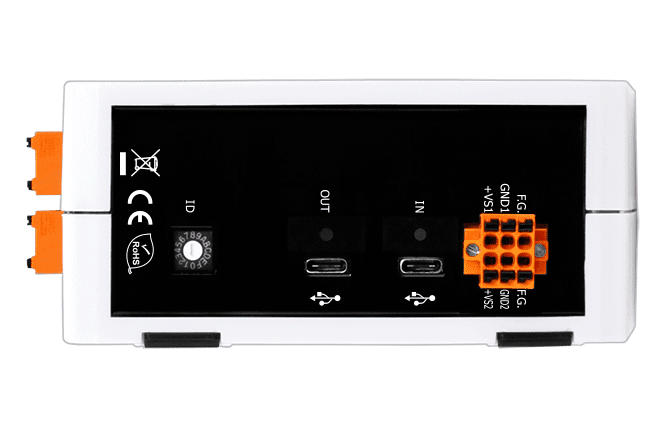

The built-in two-port USB hub allows up to five modules to be daisy-chained from one PC port. Each module ships with a 1.8 m lockable USB cable. An API library with demos and source code is supplied for Windows and Linux, covering VB, C++, C#.NET, VB.NET and LabVIEW, and a setup and I/O test tool is included.
Applications
- Building Automation
- Factory Automation
- Measurement and Testing
- Testing Equipment
- Machine Automation
| Product type: | USB I/O Module |
|---|---|
| Interface: | USB 2.0 |
| Digital inputs: | 32 |
| Digital outputs: | 32 |
| Ports: | 2 |
| Isolation: | Isolated |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer | 1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) |
| EMS Protection | |
| ESD (IEC 61000-4-2) | 4 kV contact for each terminal 8 kV air for random point |
| LED Indicators | |
| Status | 3 x Power, Run and Error USB-2255-32: 32 x DI and DO USB-2255-64: 64 x DI and DO |
| Digital Input/Counter | |
| Channels | USB-2255-32: 16 USB-2255-64: 32 |
| Type | Dry Contact: Source Wet Contact: Sink/Source |
| ON Voltage Level | Dry Contact: Close to GND Wet Contact: +10 ~ +50 VDC |
| OFF Voltage Level | Dry Contact: Open Wet Contact: +4 VDC Max. |
| Max. Counts | 32-bit |
| Frequency | 5k Hz |
| Input Impedance | 10 KΩ |
| Overvoltage Protection | 70 VDC |
| Digital Output | |
| Channels | USB-2255-32: 16 USB-2255-64: 32 |
| Type | Open Collector, Sink (NPN) |
| Load Voltage | +3.5 ~ +50 VDC |
| Load Current | USB-2255-32: 600 mA/Channel USB-2255-64: 500 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A ( with short-circuit protection ) |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| USB | |
| Ports | 2, daisy-chain max. 5 pcs |
| Specification | USB 2.0 HighSpeed (480 Mbps) |
| Connector | Type C |
| Power | |
| Consumption | USB-2255-32: Typical 1.4 W, Max. 1.9 W USB-2255-64: Typical 2.1 W, Max. 3.2 W |
| Powered from Terminal Block | Yes, +10 ~ +30 VDC |
| Mechanical | |
| Dimensions (mm) | USB-2255-32: 31 x 166 x 129 USB-2255-64: 56 x 180 x 144 |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
