PEX-P64 PCI Express Isolated DI Board, 64-ch Digital Input
PCI Express x1 DAQ board with 64 optically isolated digital input channels, selectable internal or external DI power and a 4-bit Card ID switch for multi-card systems.
- 64 isolated digital input channels on a single PCI Express x1 card
- Dry and wet contact inputs, sink/source type
- Selectable internal or external power for DI via jumper
- Onboard DC/DC converter providing 3000 VDC isolation
- 3750 Vrms photocoupler isolation
- Four isolated banks when using four isolated external supplies
278,00 € per piece
| 1–9 pcs | 278,00 € | |
|---|---|---|
| 10–30 pcs | 269,00 € | −3 % |
| 31+ pcs | 264,00 € | −5 % |
Produkta informācija "PEX-P64 PCI Express Isolated DI Board, 64-ch Digital Input"

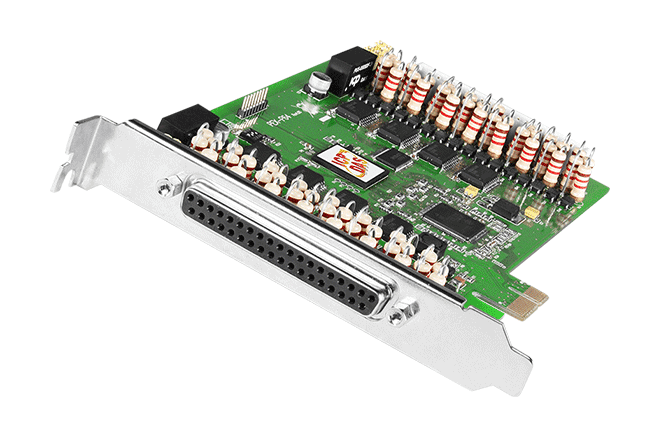

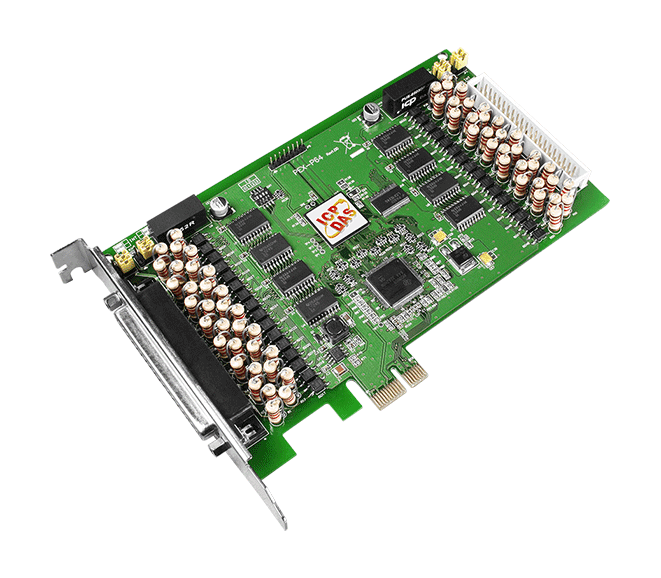

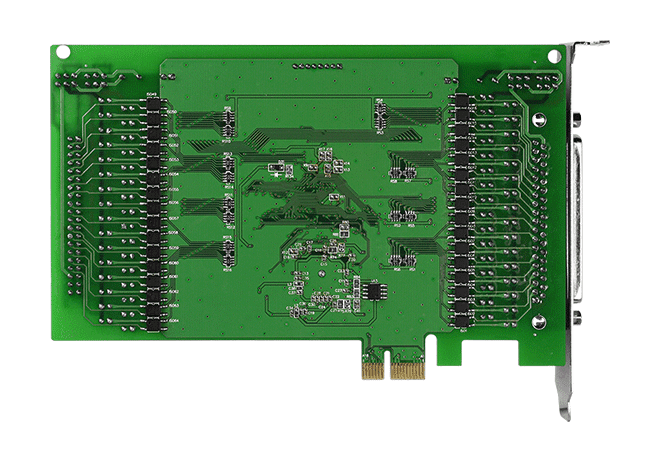

PEX-P64 is a PCI Express x1 digital input board offering 64 optically isolated channels. Each channel accepts dry-contact or wet-contact signals, and the DI power source can be set by jumper to the onboard isolated DC/DC converter or to an external supply.
The channels can be grouped into four isolated banks when four isolated external supplies are used: channels 0 to 15 for bank A, 16 to 31 for bank B, 32 to 47 for bank C and 48 to 63 for bank D. The photocouplers provide 3750 Vrms isolation, which removes ground loop problems and protects the host computer from voltage spikes on field lines.
This CR variant ships with one CA-4037B cable and two CA-4002 D-Sub connectors. A Card ID switch lets software identify the board when two or more cards are installed in the same computer. The board is designed as a direct replacement for the PISO-P64U without changes to software or driver.
Applications
- Factory automation
- Product test
- Laboratory automation
| Product type: | DAQ board |
|---|---|
| Interface: | PCI Express x1 |
| Digital inputs: | 64 |
| Isolation: | 3750 Vrms |
| Operating temperature: | 0 ~ +60 °C |
Specifications
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 40-pin Box header x 1 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 64 |
| Type | Dry + Wet Contact Photocoupler |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: 5 ~ 15 V (Max 24 V) |
| OFF Voltage Level | Dry: Open Wet: 0 ~ 1 V |
| Response Speed | 4 kHz (Typical) |
| Trigger Mode | Static Update |
| Isolation | 3750 Vrms (Using external power) |
| PC Bus | |
| Type | PCI Express x 1 |
| Data Bus | 8-bit |
| Power | |
| Consumption | 600 mA @ +3.3 V 400 mA @ +12 V |
| Mechanical | |
| Dimensions (mm) | 105 x 180 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
