tET-P6 Tiny Ethernet I/O Module, 6-ch Wet DI with Modbus TCP
Compact Ethernet I/O module with six wet-contact digital inputs, Modbus TCP/UDP and MQTT support, and dual-watchdog protection for remote monitoring and control.
- Six wet-contact digital inputs with sink/source (NPN/PNP) wiring
- Modbus TCP, Modbus UDP and MQTT protocol support
- Latched DI, 32-bit DI counters and frequency measurement
- Dual-watchdog: CPU and host watchdog with configurable safe value
- I/O pair connection (push and pull) over Ethernet
- Built-in web server for configuration and firmware update via Ethernet
97,00 € per piece
| 1–9 pcs | 97,00 € | |
|---|---|---|
| 10–30 pcs | 94,00 € | −3 % |
| 31+ pcs | 92,00 € | −5 % |
Info sui prodotti "tET-P6 Tiny Ethernet I/O Module, 6-ch Wet DI with Modbus TCP"

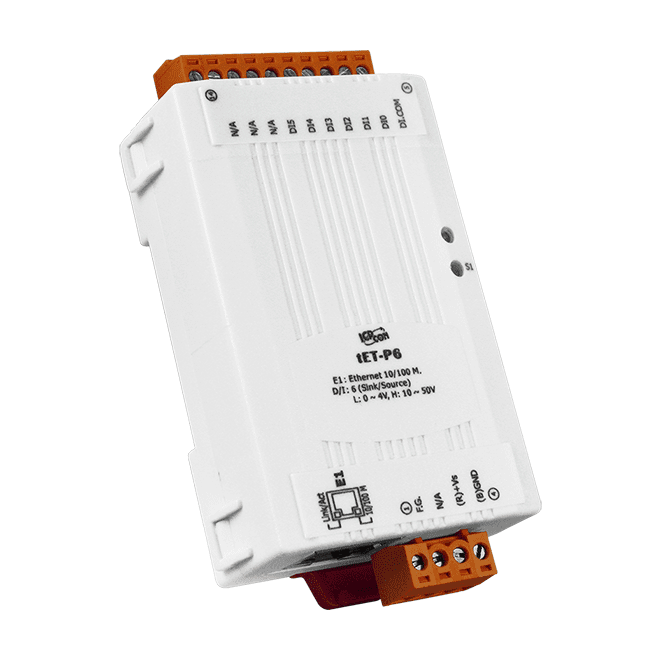

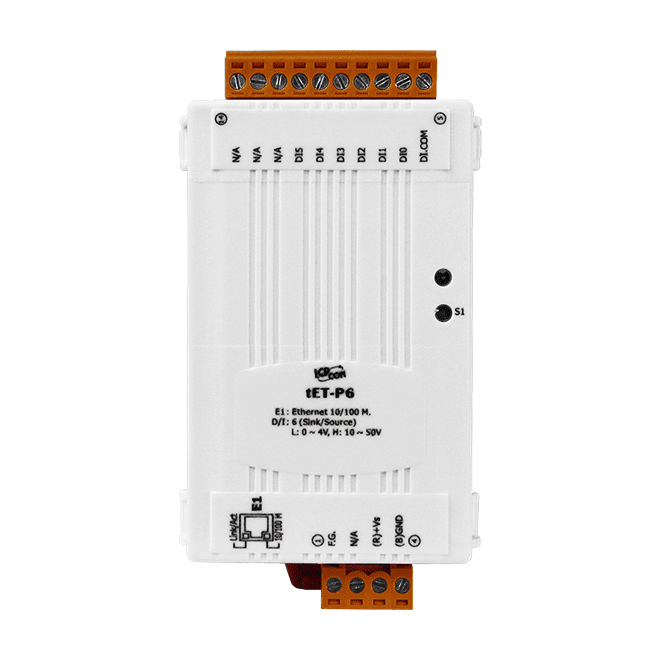

tET-P6 CR is a compact Ethernet I/O module that brings six wet-contact digital inputs onto a 10/100 Base-Tx network. It can be monitored and configured over IP using Modbus TCP, Modbus UDP or MQTT, which makes it straightforward to connect to HMI, SCADA, PLC and other software systems.
The module supports latched DI, 32-bit counters and frequency measurement, and can be set up for DI-to-DO pair connection over Ethernet. Its CPU and host watchdogs help keep the unit and the link to the controller under supervision, and firmware can be updated via Ethernet.

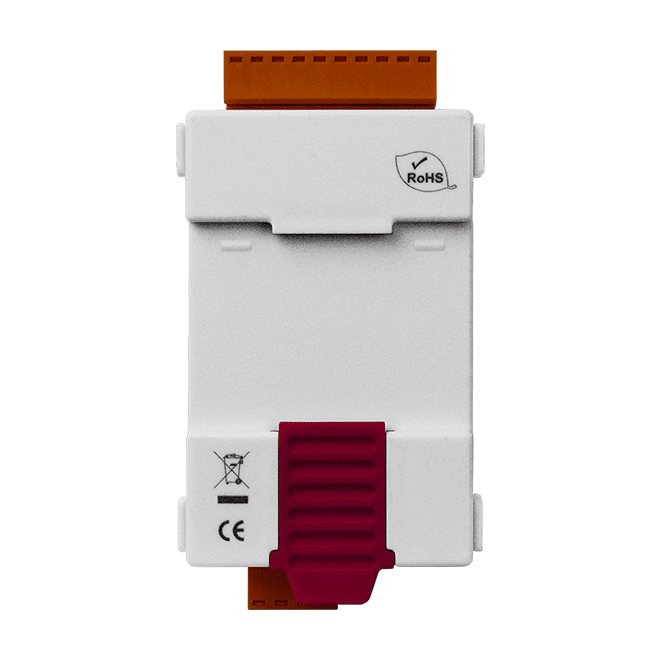

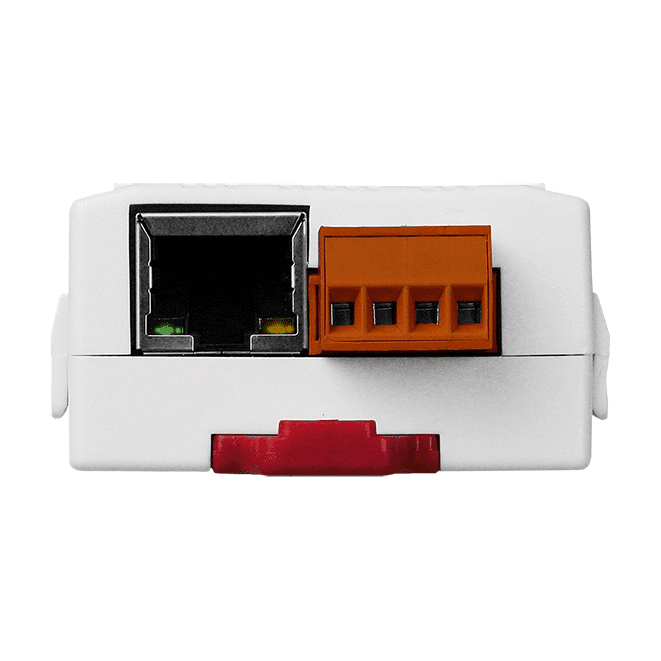

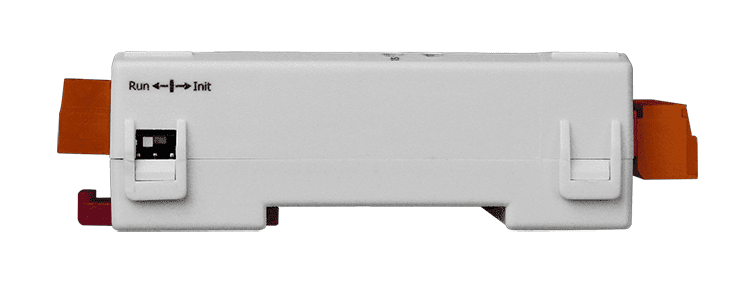

The small housing mounts on DIN rail and uses two removable terminal blocks for wiring. It is powered from +12 to +48 VDC with reverse polarity protection and is rated for an operating range of -25 ~ +75 °C.
Applications
- Factory automation
- Building automation
- Home automation
- Remote maintenance
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Digital inputs: | 6 |
| Ports: | 1 |
| Isolation: | 3750 Vrms |
| Power input: | +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet |
| Digital Input/Counter | |
| Channels | 6 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 to +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 3.5 kHz (without filter) |
| Min. Pulse Width | 0.15 ms |
| Isolation | 3750 Vrms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.9 W |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
