XP-9388-IoT Win-GRAF PAC, 3-Slot Windows 10 IoT Enterprise Soft PLC
3-slot Win-GRAF PAC running Windows 10 IoT Enterprise, combining control, HMI and I/O expansion in one unit with an Intel Atom E3845 CPU and IEC 61131-3 soft PLC.
- Three I/O expansion slots for I-9K and I-97K series modules
- Intel E3845 1.91 GHz quad-core CPU with 4 GB DDR3 SDRAM and 64 GB SSD
- Embedded Win-GRAF SoftLogic programming to IEC 61131-3
- VGA and HDMI outputs with eLogger HMI support
- Two RJ-45 10/100/1000 Base-TX Ethernet ports
- Isolated RS-232 and RS-485 COM ports rated 3000 VDC
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Non più disponibile
Info sui prodotti "XP-9388-IoT Win-GRAF PAC, 3-Slot Windows 10 IoT Enterprise Soft PLC"

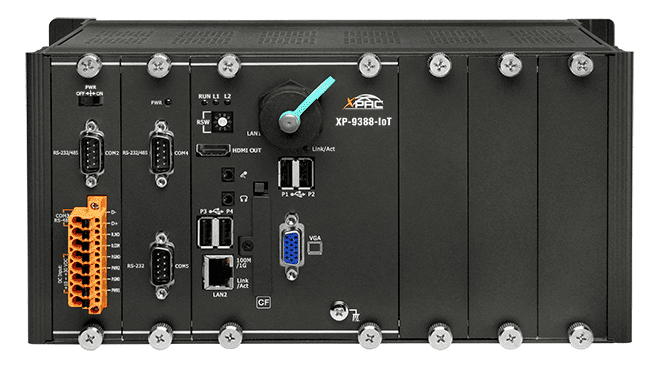

The XP-9388-IoT CR is a Win-GRAF PAC from the XP-9000-IoT series that brings a soft PLC, an operator interface and I/O expansion into a single metal housing. Its three slots accept I-9K and I-97K series I/O modules, so local I/O can be built up alongside the controller without a separate HMI panel.
The controller runs Windows 10 IoT Enterprise (64-bit) on an Intel E3845 1.91 GHz quad-core CPU with 4 GB DDR3 SDRAM and a 64 GB SSD. Control logic is written in embedded Win-GRAF SoftLogic following IEC 61131-3, and eLogger HMI support, VGA and HDMI outputs, and a buzzer and rotary switch cover local operator tasks.
Communication options include two 10/100/1000 Base-TX Ethernet ports, isolated RS-232 and RS-485 COM ports, and an OPC UA server alongside Modbus TCP/IP, Modbus RTU and Modbus ASCII. Redundant power inputs and support for a dual-PAC redundant system are available for installations that need higher availability. The unit mounts on DIN-rail or wall.
Applications
- Combined control, HMI and data acquisition in a single PAC
- Local and remote I/O control with I-9K, I-97K and remote expansion modules
- Dual-PAC redundant control systems
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, HDMI, RS-232/RS-485, USB, VGA |
| Protocol: | Modbus TCP, OPC UA |
| Ports: | 2 |
| Isolation: | 3000 VDC (COM ports) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifications
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise (64-bit) |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Function | • eLogger HMI • Redundancy Solution • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4 GB DDR3 SDRAM, 64 GB Flash |
| Storage | 64 GB SSD, 32 GB CF card |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA, HDMI |
| Resolution | VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp |
| LED Indicators | |
| Status | 1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | XP-9188-IoT: 1 XP-9388-IoT: 3 XP-9788-IoT: 7 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | XP-9188-IoT: 18.5W XP-9388-IoT: 18.7W XP-9788-IoT: 20.4W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | XP-9188-IoT: 239 x 164 x 133 (W x L x H) XP-9388-IoT: 300 x 164 x 133 (W x L x H) XP-9788-IoT: 422 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
