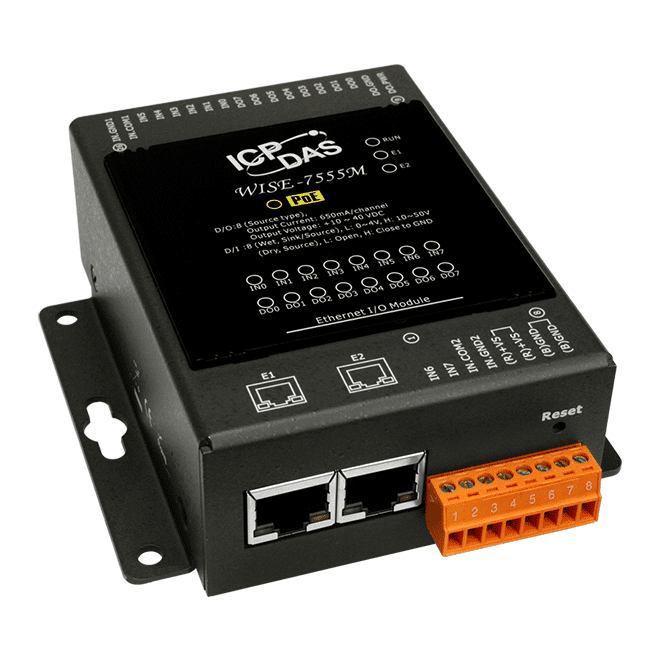

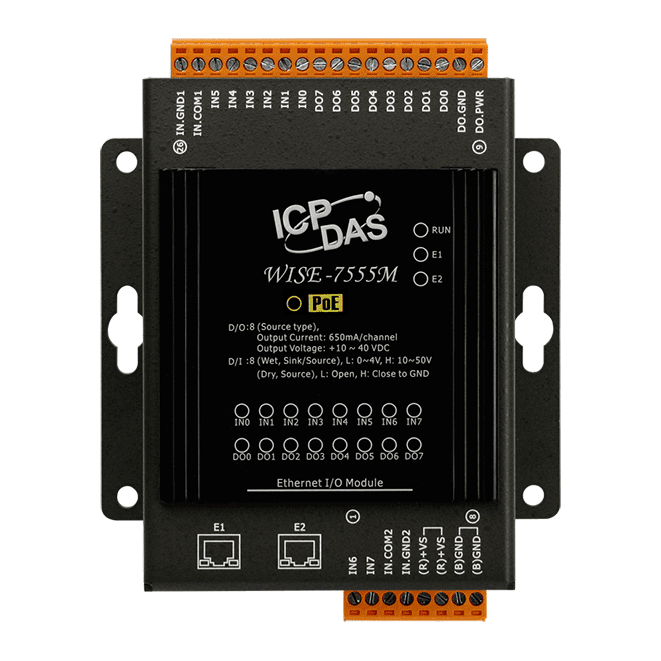

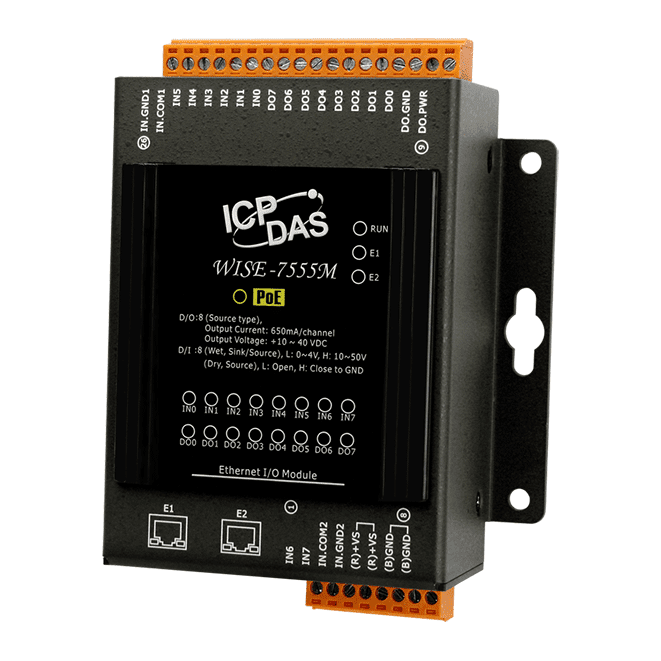

WISE-7555M MQTT I/O Module, 8-ch DI, 8-ch DO, 2-port Switch and PoE
WISE-7555M is a browser-configured I/O module with 8 digital inputs, 8 digital outputs, a 2-port Ethernet switch and PoE, supporting Modbus TCP and MQTT.
- Browser-based configuration and IF-THEN-ELSE logic with no extra software or programming required
- 8 dry/wet contact digital inputs and 8 source-type digital outputs
- Optical isolation rated at 2500 VDC, with no channel-to-channel isolation
- Modbus TCP for SCADA integration and MQTT for IT and IoT systems
- IEEE 802.3af PoE power input, alternatively 12 ~ 48 VDC via terminal block
- Built-in 2-port 10/100 Base-TX Ethernet switch for daisy-chain wiring
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Non più disponibile
Info sui prodotti "WISE-7555M MQTT I/O Module, 8-ch DI, 8-ch DO, 2-port Switch and PoE"
The WISE-7555M is a networked control unit for remote logic control and monitoring. Its web interface lets you build IF-THEN-ELSE control logic directly on the module, so no separate software tool or programming is needed, which keeps commissioning quick.
The module provides 8 dry/wet contact digital inputs and 8 source-type digital outputs. Inputs and outputs are optically isolated at 2500 VDC for transient overvoltage protection, though channels are not isolated from each other, which makes it suitable for installations where hazardous voltages may be present.
For connectivity, the unit offers Modbus TCP for SCADA integration and MQTT for IT and IoT platforms. Power can come from an IEEE 802.3af PoE network or a 12 ~ 48 VDC terminal block, and the built-in two-port switch allows devices to be wired in a daisy-chain topology.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis and Testing Equipment
| Product type: | WISE I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, MQTT |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 2 |
| PoE: | Yes |
| Isolation: | 2500 VDC |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall |
Specifications
| Software | |
|---|---|
| Protocol | • Modbus TCP • CGI Command (Sending) • MQTT Client (non-SSL) • Active I/O (MQTT Publish) |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (72 rules supported) • I/O channel monitoring and control • Timer operation (24 set supported) • Schedule operation (24 set supported) • Internal Register operation (48 set supported) • Recipe operation (24 set supported) • Advanced P2P (8 set supported) • non-SSL Email sending function • SNTP Time Synchronization |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Isolation | |
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal and ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | 1 x PoE Power 1 x System Running 1 x Ethernet Link/Act 16 x I/O Channel Status |
| Digital Input/Counter | |
| Channels | 8 |
| Type | Dry + Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 VDC ~ +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC Max. |
| Max. Counts | 16-bit (65535) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Effective Distance | 500 M Max. |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Digital Output | |
| Channels | 8 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 VDC ~ +40 VDC |
| Load Current | 650 mA/Channel at 25°C |
| Overvoltage Protection | 47 VDC |
| Short-circuit Protection | Yes |
| Ethernet | |
| Ports | RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators) |
| PoE | Yes |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | 12 ~ 48 VDC |
| Consumption | 3.7 W |
| Powered from PoE | Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block | Yes, 12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 42 (W x L x H) |
| Installation | Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
