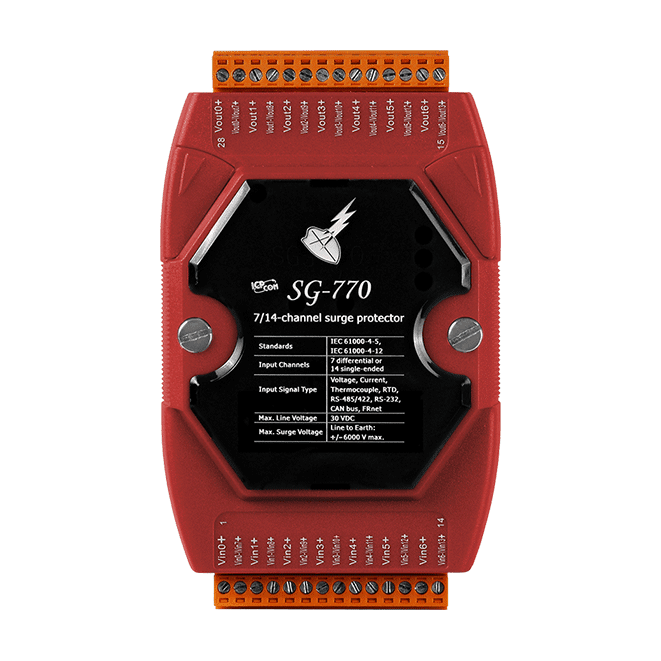

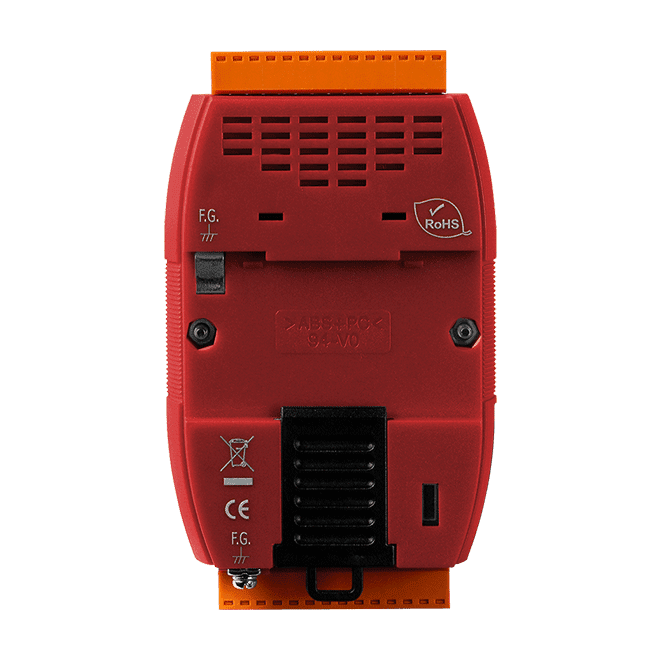

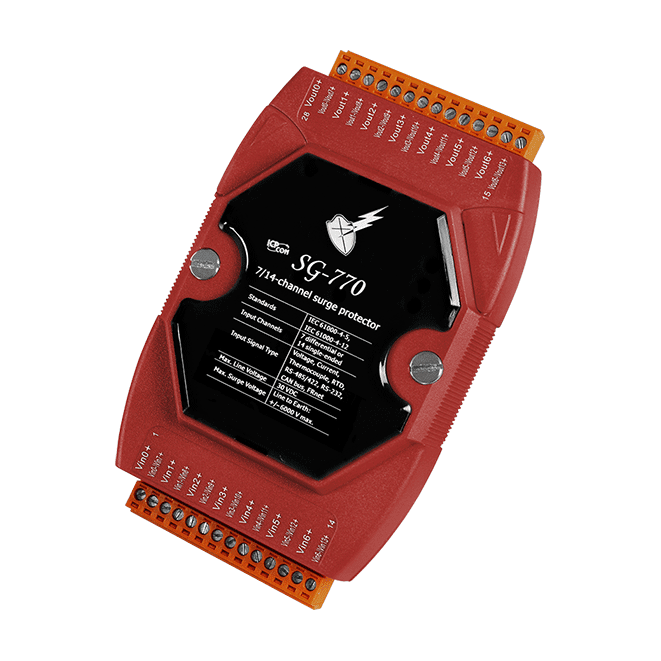

SG-770 Surge Protector, 7-Channel Differential, 6 kV Surge Protection
SG-770 CR 7-channel surge protector for differential signal lines, rated for 6 kV surge protection per channel to IEC 61000-4-5 and IEC 61000-4-12. Mounts on DIN-rail.
- 7 differential channels, each protected against surge
- 6 kV surge protection per channel
- Tested to IEC 61000-4-5 and IEC 61000-4-12
- Signal range 0 V ~ ±30 V per channel
- Supports voltage, current, thermocouple, RTD, RS-485/422, RS-232, CAN bus and FRnet signals
- Easy wire connection, DIN-rail mounting
83,00 € per piece
| 1–9 pcs | 83,00 € | |
|---|---|---|
| 10–30 pcs | 81,00 € | −2 % |
| 31+ pcs | 79,00 € | −5 % |
Info sui prodotti "SG-770 Surge Protector, 7-Channel Differential, 6 kV Surge Protection"
SG-770 CR is a 7-channel surge protector for differential signal lines. Each channel is protected to 6 kV against surge, so it suits engineers who need to shield sensitive I/O and field wiring from transients in industrial installations.
Each channel accepts signals from 0 V to ±30 V and is tested to IEC 61000-4-5 and IEC 61000-4-12, with surge levels of up to ±6000 V line to earth. The protector handles voltage, current, thermocouple, RTD, RS-485/422, RS-232, CAN bus and FRnet signal types, so one module can cover mixed sensor and communication wiring.
The module is designed for quick installation, with easy wire connections and DIN-rail mounting. It is rated for an operating range of -25 °C to 75 °C and a storage range of -30 °C to 75 °C, at 5% to 95% RH non-condensing.
Applications
- Voltage and current signal lines
- Thermocouple and RTD inputs
- RS-485/422 serial communication lines
- CAN bus networks
| Product type: | Surge Protector |
|---|---|
| Interface: | CAN bus, RS-232, RS-485/422 |
| Analog inputs: | 7 |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| EMC | |
|---|---|
| Standard | IEC 61000-4-5 (Surge): Line to Earth: +/- 6000V Max. IEC 61000-4-12 (Surge): Line to Earth: +/- 6000V Max. |
| Analog Input | |
| Channels | 7 differential |
| Type | Voltage, Current, Thermocouple, RTD, RS-485/422, RS-232, CAN bus, FRnet |
| Range | 30 VDC |
| Mechanical | |
| Dimensions (mm) | 73 x 120 x 35 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 °C ~ 75 °C |
| Storage Temperature | -30 °C ~ 75 °C |
| Humidity | 5% ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
