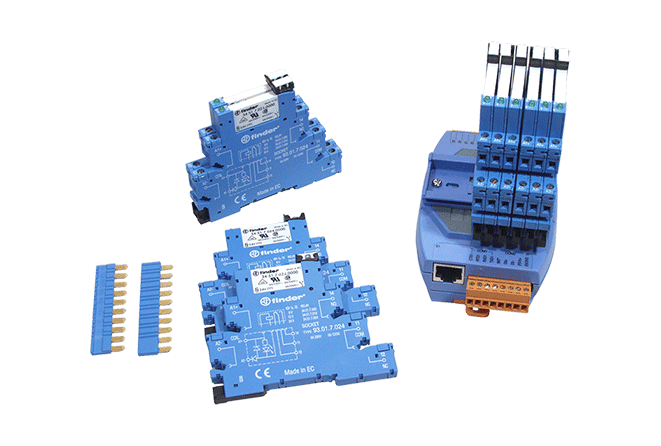

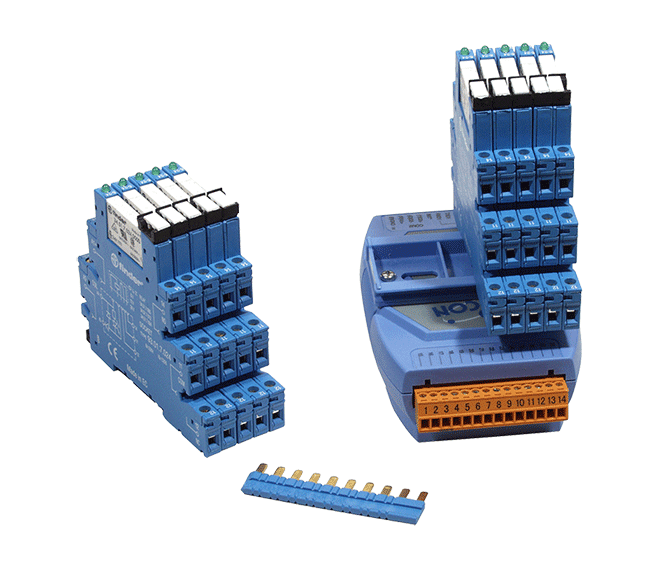

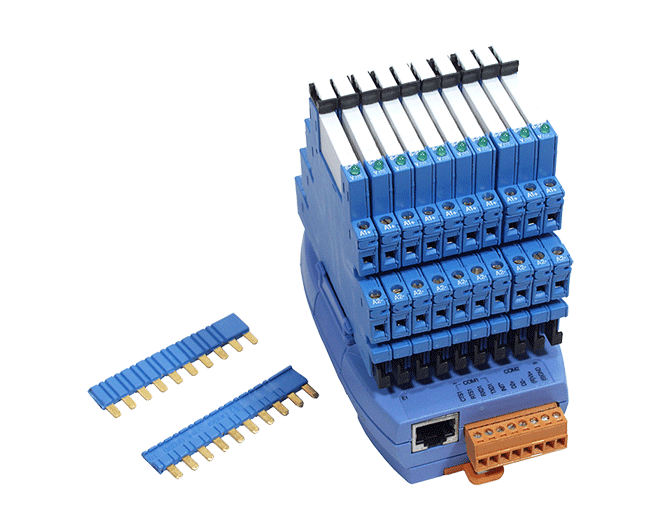

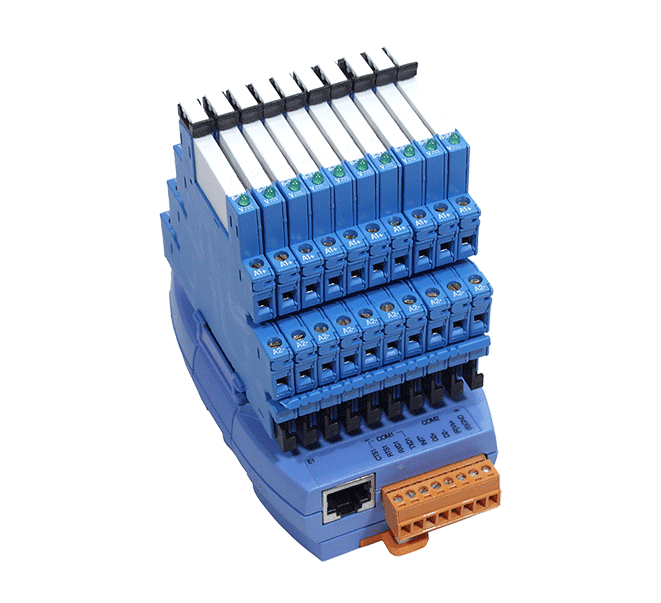

RM-38.61 1-Pole Form C 6 A Power Relay Module, DIN-rail
RM-38.61 CR is a 1-pole Form C power relay module rated 6 A at 250 VAC, for 35 mm DIN-rail mounting, with a test button. Supplied as five pieces per box.
- 1-pole Form C relay contact rated 6 A @ 250 VAC
- AgNi contact material
- Operate time 0.05 ms, release time 0.25 ms
- Electrical endurance 60 · 10^3, mechanical endurance 10 · 10^6
- 35 mm DIN-rail (EN 50022) mounting, 17.4 mm wide
- Test button on the module
123,00 € per piece
| 1–9 pcs | 123,00 € | |
|---|---|---|
| 10–30 pcs | 119,00 € | −3 % |
| 31+ pcs | 117,00 € | −5 % |
Info sui prodotti "RM-38.61 1-Pole Form C 6 A Power Relay Module, DIN-rail"
The RM-38.61 CR is a DIN-rail relay module built around a 1-pole Form C power relay. Its AgNi contact is rated 6 A at 250 VAC, which suits switching duties where a single changeover contact on a rail-mounted board is needed.
The module mounts on a 35 mm rail (EN 50022) and is 17.4 mm wide, making it compact for control panels. A test button is fitted for manual checking of the relay. The source lists operate and release times of 0.05 ms and 0.25 ms, with electrical endurance of 60 · 10^3 and mechanical endurance of 10 · 10^6.
Key points for specification:
- Form C contact, rated 6 A @ 250 VAC
- Operating and storage temperature range of -40 ~ 70°C
- Supplied as five pieces in one box
| Product type: | Relay Module |
|---|---|
| Relay outputs: | 1 (Form C) |
| Operating temperature: | -40 ~ 70°C |
| Mounting: | DIN-rail |
Specifications
| Digital Input | |
|---|---|
| Channels | 1 FORM C |
| Relay Output | |
| Channels | 1X FORM C |
| Type | 24 V Power Relay |
| Contact Material | AgNi |
| Contact Rating | 6 A @ 250 VAC |
| Operate Time | 0.05 ms |
| Release Time | 0.25 ms |
| Electrical Endurance | 60 · 10^3 |
| Mechanical Endurance | 10 · 10^6 |
| Mechanical | |
| Dimensions (mm) | 76.5 mm x 6.5 mm x 89 mm |
| Installation | DIN-rail mounting |
| Environment | |
| Operating Temperature | -40 ~ 70°C |
| Storage Temperature | -40 ~ 70°C |
Specifications as published by the manufacturer. Subject to change.
