I/O Module

The MN-3253 CR adds 32 isolated digital input channels to a Motionnet network, letting you extend remote input capacity without running separate cabling for each signal. Each input port can be configured as NPN or PNP for 12 to 24 V sensors, which simplifies matching the module to the field devices you already use.Cyclic time is 15.1 μs per device at 20 Mbps, and a full line of 64 modules covers 2048 input points within 0.97 ms. Transfer speed is chosen from 2.5, 5, 10 or 20 Mbps using a DIP switch. Input status is updated automatically through the Motionnet system at a constant interval, and you can set interrupts on selected inputs so the controller does not have to poll them repeatedly.The module provides 3000 Vrms input isolation and separates power, communication and I/O for improved protection. Status LEDs show communication state, I/O state and internal 3.3 V power, and a termination resistor switch is provided. Wiring uses 13-pin pluggable terminal blocks, and the plastic housing mounts on a DIN rail. Rated operating range is 0 to +60 °C.ApplicationsMachine automationDistributed digital input expansion for Motionnet systems

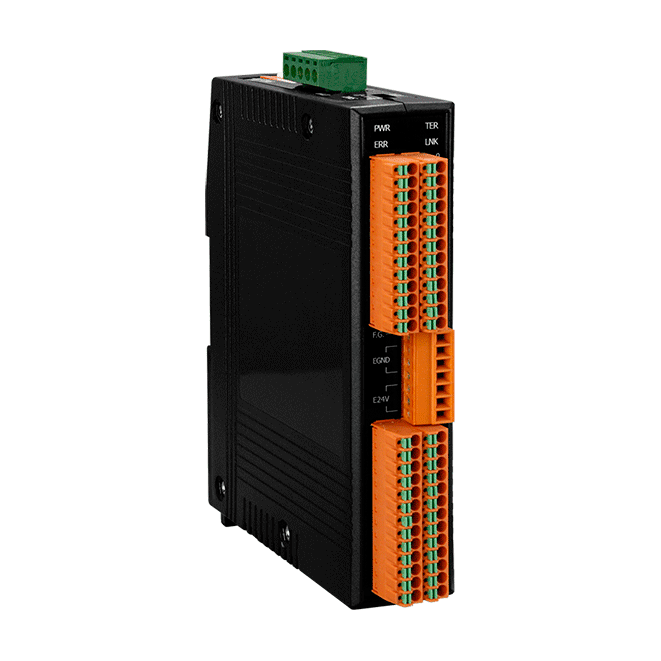

MN-3253T CR is a Motionnet expansion module that adds 32 isolated digital input channels to a distributed control network. Each Motionnet transfer line can carry up to 64 modules, so a single line can scale to 2048 input channels. With 64 modules connected, signals for all 2048 points can be exchanged within 0.97 ms.Every input port can be configured as NPN or PNP for 12~24 V signals, which suits mixed sensor types on one module. Isolation is provided between power, communication and I/O, and an input-change interrupt can be set for chosen points so the host does not need to poll them continuously. Status LEDs show communication state and I/O activity to support commissioning and fault finding.The module uses a plastic housing with pluggable 13-pin terminal blocks and mounts on a DIN rail. It is rated for 0 ~ +60 °C operation and is supplied as the RoHS-compliant terminal block version of the MN-3253 series.ApplicationsMachine automationDistributed digital input expansion on Motionnet systems

MN-3254 CR is a distributed I/O expansion module for Motionnet systems, providing 16 isolated digital input channels and 16 isolated digital output channels in a single DIN-rail housing. Each Motionnet transfer line can carry up to 64 modules, allowing the I/O count to grow to 1024 inputs and 1024 outputs on one network.Timing is deterministic: each device has a cyclic time of 15.1 μs at 20 Mbps, and I/O status is updated automatically over the Motionnet system at a constant interval. Input points can be configured for interrupts, so the controller does not need to poll inputs that are not changing. Each input port can be set to NPN or PNP operation over 12 to 24 V, and the output flywheel diodes can be connected to different supply sources port by port.The CR variant is the RJ-45 connector version listed in the ordering information. Isolation of 3000 Vrms on both the digital inputs and outputs, along with a 1000 V isolated 24 VDC power input, helps separate field wiring from the communication network and the logic supply.ApplicationsMachine automation

The MN-3254T adds 16 isolated digital inputs and 16 isolated digital outputs to a Motionnet network. Each input port can be set to NPN or PNP operation across 12 to 24 V, so it suits sensors from either sourcing convention.Motionnet transfer speed is selectable at 2.5, 5, 10 or 20 Mbps by DIP switch. At 20 Mbps the communication time per device is 15.1 μs. Power, communication and I/O are isolated from one another. The outputs are open-collector sink type, rated at 200 mA per channel, with internal flywheel diodes that can be returned to different supplies on each eight-channel port.LED indicators show communication state, the internal 3.3 V supply, the termination resistor switch and I/O status, which helps with commissioning and fault finding. The plastic housing mounts on a DIN rail and is specified for 0 to +60 °C operation.ApplicationsMachine automationDistributed I/O on Motionnet networks

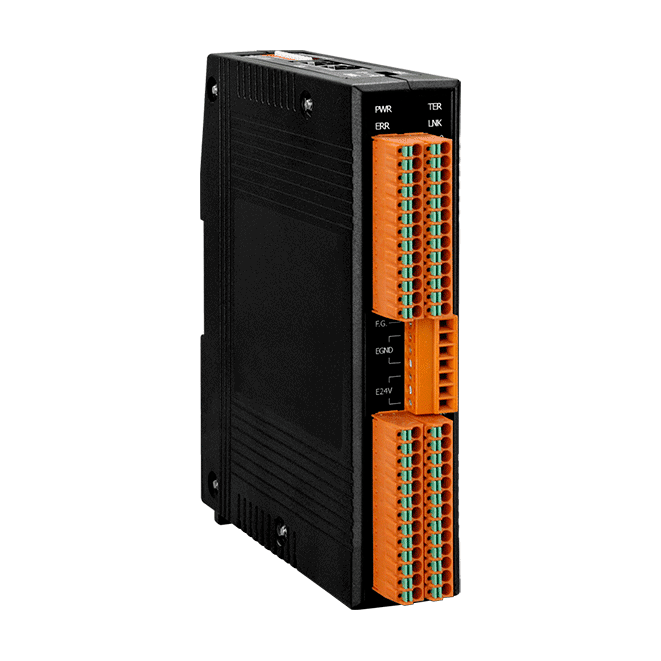

The MN-3257 CR is a Motionnet expansion module that adds 32 isolated digital outputs to a distributed control system. Each Motionnet transfer line can carry up to 64 modules, allowing output count to scale to 2048 channels on one line. Each module is updated automatically at a constant interval by the Motionnet system, so the controller does not need to poll it.Each output is an open-collector sink type with an internal flywheel diode, rated at 200 mA maximum per channel and +30 VDC maximum load voltage. The flywheel diodes are grouped per port of 8 signals, and each port can be connected to a different power source. Interrupts can be set on chosen input points, which avoids wasted CPU time spent on repeated polling.Isolation is provided between power, communication and I/O, rated at 3000 Vrms on the outputs. Two RJ-45 Motionnet connectors support daisy-chained wiring, transfer speed is selectable at 2.5, 5, 10 or 20 Mbps by DIP switch, and LED indicators show communication and I/O state. The plastic housing mounts on a DIN rail.ApplicationsMachine automationDistributed digital output expansion for Motionnet systems

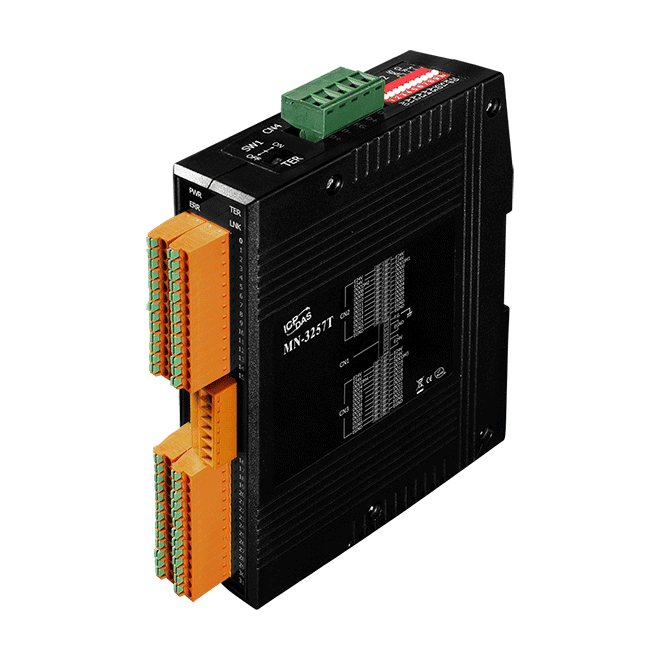

MN-3257T CR is a Motionnet expansion module that adds 32 isolated digital output channels to a Motionnet network. Each channel is an open-collector sink output with an internal flywheel diode, rated up to +30 VDC and 200 mA per channel, so it can switch typical industrial loads directly from the module.Engineers typically choose this module to grow a distributed I/O network without adding CPU load. Up to 64 modules can share one Motionnet transfer line, giving up to 2048 output channels. Output status is updated automatically at a fixed cycle, and input-change interrupts can be set for points that need monitoring, avoiding repeated polling.Isolation is provided between power, communication and I/O, with 3000 Vrms rated on the outputs. The flywheel diode of each 8-channel port can be connected to a separate power source, and LEDs show communication state and I/O status. The module is supplied from 24 VDC and mounts on a DIN rail.ApplicationsMachine automationDistributed digital output expansion on Motionnet networks

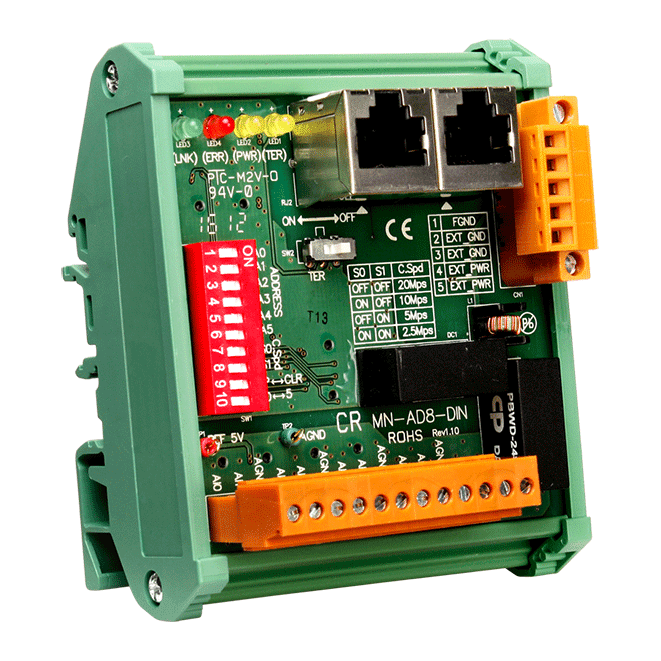

MN-AD8-DIN is a DIN-rail mounted Motionnet slave module that brings eight +/- 10 V analogue inputs onto a Motionnet network through an RJ-45 communication port. Each channel is sampled at up to 250 ksps with 16-bit resolution, giving a stated minimum resolution of 0.3 mV, which suits engineers who need fast, precise voltage acquisition at distributed points in a machine.Offset and gain are calibrated in hardware and the calibration data is stored in EEPROM, so the module does not depend on software trimming. A 5 V internal reference with low drift supports the accuracy of the inputs. Power and communication are each isolated, with a 1000 V isolated 24 VDC supply input.On the network, the transfer speed is selectable at 2.5, 5, 10 or 20 Mbps by DIP switch, and the cyclic time is 15.1 us per device at 20 Mbps. Up to 64 modules can share one communication port, and the I/O connection status is updated by hardware without taking CPU time.Suitable for Motionnet systems where many analogue inputs are spread across a machine.ApplicationsMachine automationDistributed analogue voltage acquisition on Motionnet networks

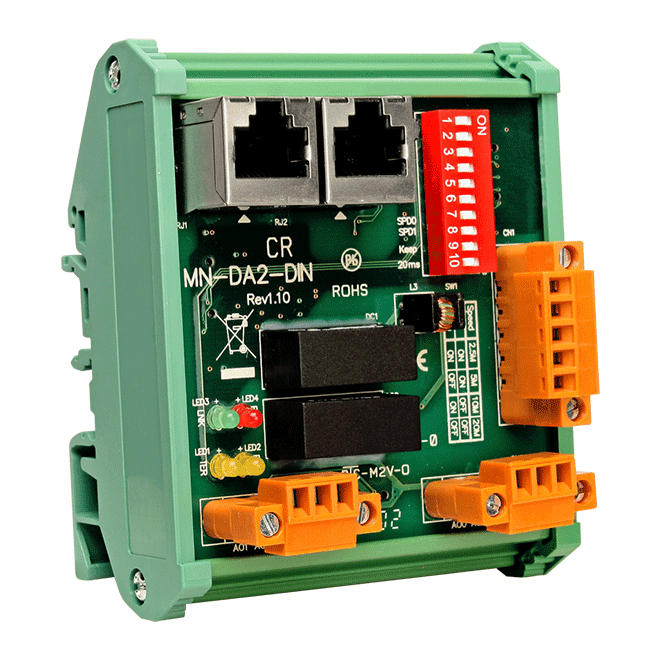

The MN-DA2-DIN CR is a DIN-rail mounted Motionnet I/O module that provides two analogue output channels in the ±10 V range. It suits engineers who need distributed analogue control points on a Motionnet network without dedicating CPU time to I/O status updates, which the hardware handles automatically.Each channel offers 16-bit resolution, with DNL of ±1 LSB and INL of ±3 LSB, and a slew rate of 20 V/µs. Offset and gain are calibrated in software. Power and communication are isolated from each other, and the module is rated for 24 VDC ±5% input with 1000 V isolation.Communication runs through an RJ-45 port, and the transfer speed is selectable at 2.5, 5, 10 or 20 Mbps by DIP switch. The module is rated for 0 ~ +60 °C operation and carries CE, UKCA, RoHS and WEEE markings.ApplicationsDistributed analogue output control on Motionnet networksExpansion of analogue output points, up to 128 per communication port with 64 modules
