MQ-7253M MQTT I/O Module, 16-ch DI with 2-port Ethernet Switch
Ethernet I/O module with 16 dry-contact digital inputs, Modbus TCP and MQTT 3.1 support, and a 2-port switch with LAN bypass for daisy-chain wiring.
- 16-channel digital input, dry contact, sink/source type listed as Source
- MQTT 3.1 and Modbus TCP protocol support for IIoT connectivity
- 2-port 10/100 Base-TX Ethernet switch with LAN bypass for daisy-chain wiring
- Built-in web server and web HMI for configuration and status monitoring
- Dual watchdog: module and communication (programmable)
- Powered from +12 ~ +48 VDC terminal block with reverse polarity protection
254,00 € per piece
| 1–9 pcs | 254,00 € | |
|---|---|---|
| 10–30 pcs | 246,00 € | −3 % |
| 31+ pcs | 241,00 € | −5 % |
Info sui prodotti "MQ-7253M MQTT I/O Module, 16-ch DI with 2-port Ethernet Switch"

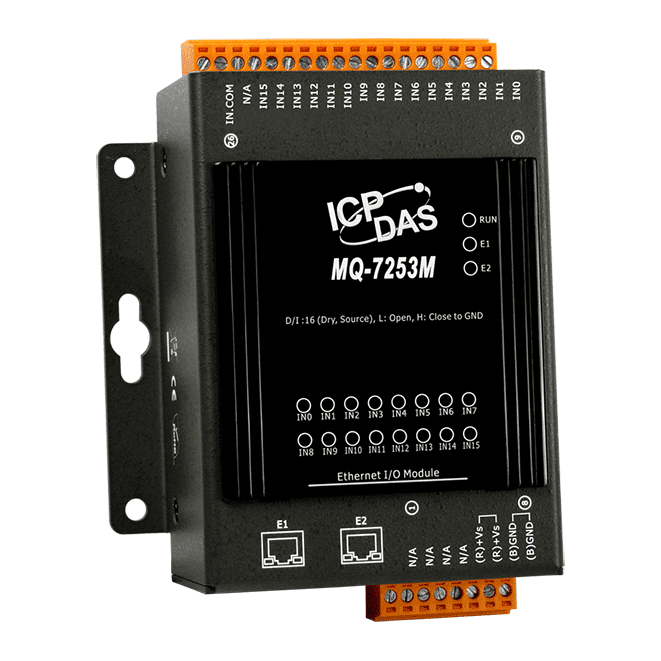

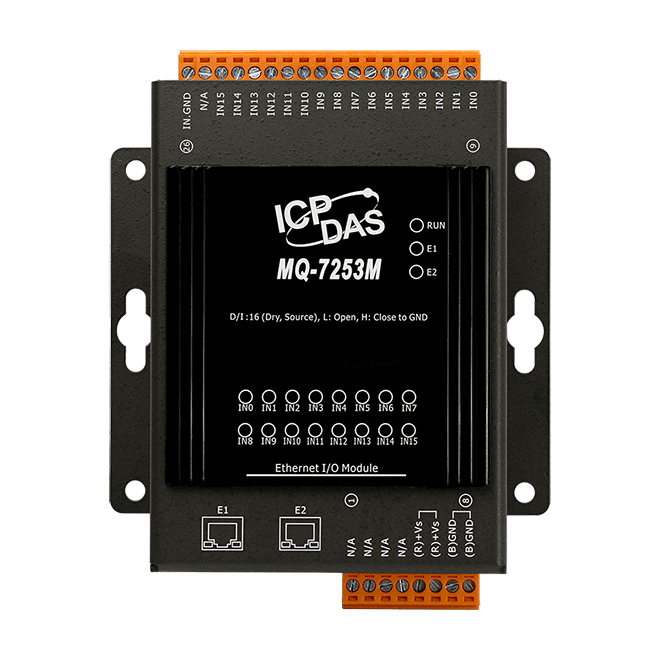

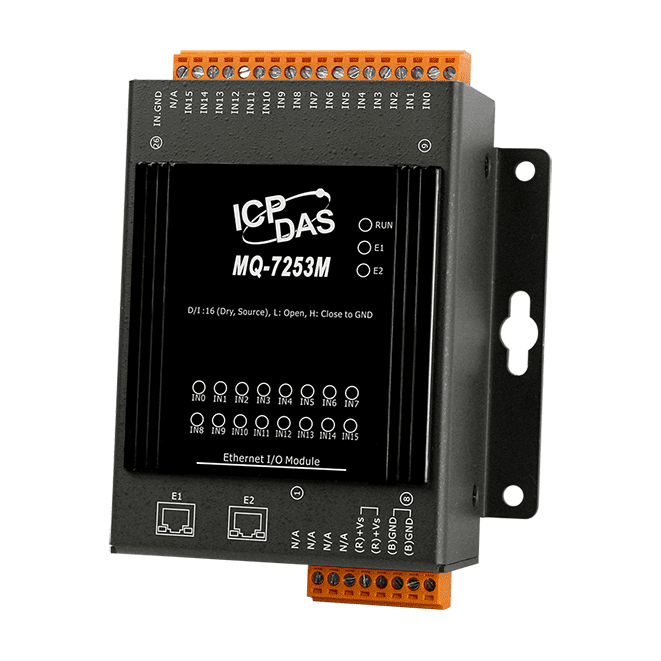

The MQ-7253M brings 16 dry-contact digital inputs onto an Ethernet network and exchanges I/O data over MQTT 3.1 or Modbus TCP. It suits engineers connecting digital sensors into IIoT systems that need remote monitoring of switch states.
A built-in web server and web HMI let you configure the module and check network connection status and I/O status from a standard browser on a computer or mobile device. The 2-port 10/100 Base-TX switch with LAN bypass supports daisy-chain wiring, and dual watchdogs (module and communication) are provided.
Inputs are optically isolated with a 1500 VDC isolation rating and 2500 VDC transient overvoltage protection, but there is no channel-to-channel isolation. The module can be used where hazardous voltages are present. The ordering description identifies this variant as RoHS-compliant.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, MQTT 3.1 |
| Digital inputs: | 16 |
| Ports: | 2 |
| Isolation: | 1500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifications
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input | |
| Channels | 16 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Effective Distance | 500m max. |
| Ethernet | |

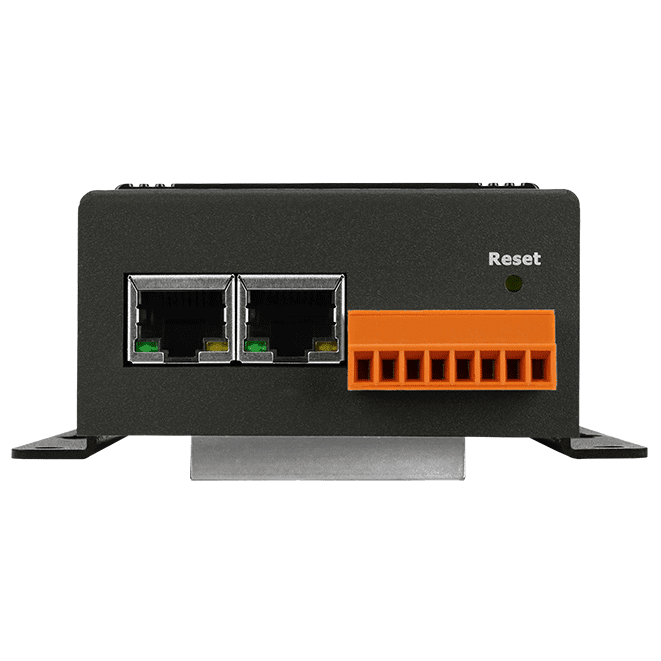

| Ports | 2 x RJ-45, 10/100 Base-TX, Switch Ports |
| LAN bypass | Yes |
| Protocol | MQTT 3.1 Modbus TCP |
| Isolation | 1500 VDC |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.7 W max. |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 97 x 120 x 42 (W x L x H) |

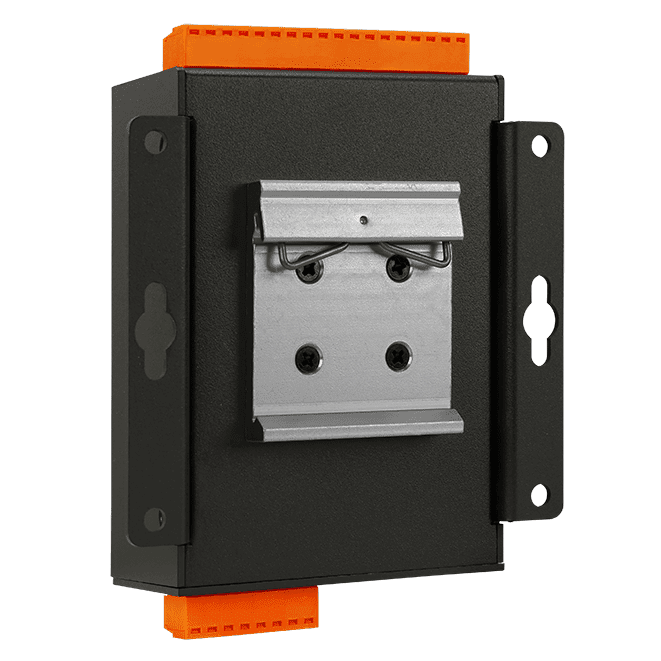

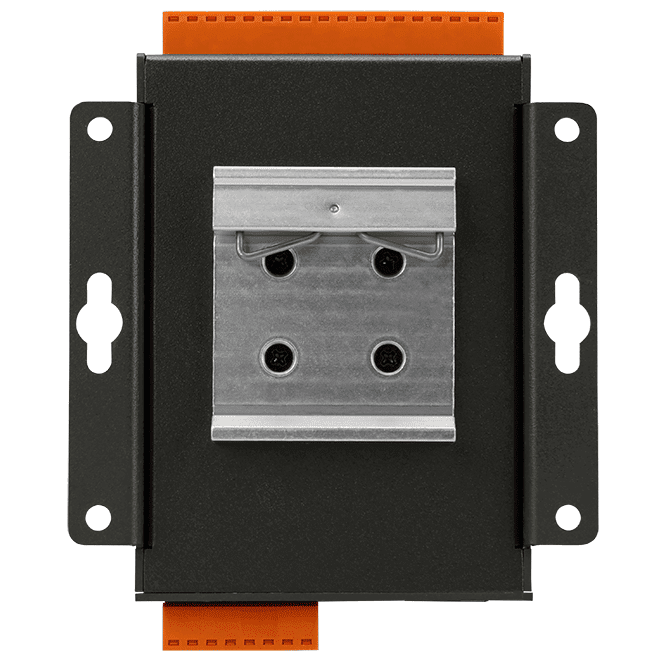

| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
