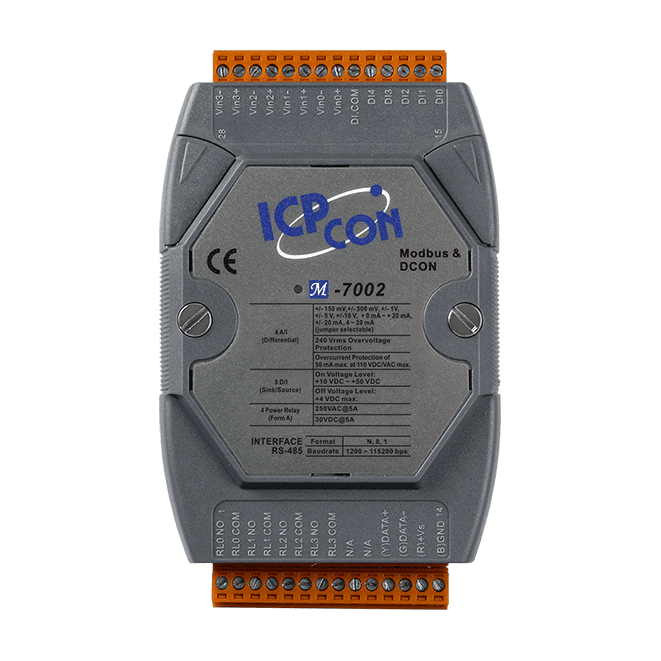

M-7002-G RS-485 I/O Module, 4-ch Analog Input, 5-ch DI, 4-ch Relay
16-bit RS-485 I/O module with 4 differential analog inputs, 5 digital inputs and 4 Form A relay outputs, supporting Modbus RTU and DCON. Grey cover variant.
- 16-bit resolution on 4 differential analog inputs with voltage and current ranges
- Jumper-selectable input type, with ranges from ±150 mV to ±20 mA and 4 ~ 20 mA
- 5 sink- or source-type digital inputs and 4 Form A relay outputs rated 5 A
- Normal mode at 10 Hz and fast mode at 60 Hz sampling
- 240 Vrms overvoltage protection per analog input and 2500 VDC intra-module isolation
- 1 x RS-485 port supporting Modbus RTU and DCON, 1200 ~ 115200 bps
271,00 € per piece
| 1–9 pcs | 271,00 € | |
|---|---|---|
| 10–30 pcs | 263,00 € | −3 % |
| 31+ pcs | 257,00 € | −5 % |
Info sui prodotti "M-7002-G RS-485 I/O Module, 4-ch Analog Input, 5-ch DI, 4-ch Relay"
M-7002-G CR is a DIN-rail RS-485 I/O module that combines 16-bit analog inputs, digital inputs and relay outputs in one unit. Each of the four differential analog channels can be configured individually for voltage or current ranges, with the input type selected by jumper. It suits engineers who need precise measurement alongside switching control from a single RS-485 node.
The analog channels cover ranges from ±150 mV up to ±10 V and ±20 mA, plus 0 ~ 20 mA and 4 ~ 20 mA. Normal mode samples at 10 Hz with 0.1% of FSR accuracy, while fast mode samples at 60 Hz with 0.5% of FSR. Each analog input is protected against overvoltage up to 240 Vrms, and the module is isolated internally up to 2500 VDC.
The five digital inputs are wet contact, sink or source type, and the four Form A power relays are rated 5 A at 250 VAC or 30 VDC. Modbus RTU and DCON are supported over the RS-485 port at 1200 ~ 115200 bps. The grey cover (-G) identifies this variant of the M-7002 series.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Remote I/O module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus RTU |
| Digital inputs: | 5 |
| Relay outputs: | 4 |
| Analog inputs: | 4 |
| Ports: | 1 |
| Isolation: | 2500 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Display | |
| Type | 5-Digit 7 Segment LED Display |
| Isolation | |
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 4 Differential |
| Type | Voltage Current |
| Range | Voltage: ±150 mV, ±500 mV, ±1 V , ±5 V, ±10 V Current: ±20 mA , 0 ~ 20 mA, 4 ~ 20 mA (Jumper selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: 0.1% of FSR Fast Mode: 0.5% of FSR |
| Sampling Rate | Normal Mode: 10 Hz Fast Mode: 60 Hz |
| Input Impedance | Voltage: 2 MΩ Current: 139 Ω |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Digital Input/Counter | |
| Channels | 5 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ +50 VDC |
| OFF Voltage Level | +4 VDC max. |
| Max. Counts | 65535 (16-bit) |
| Frequency | 50 Hz |
| Isolation | 3750 VDC |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | ±70 VDC |
| Relay Output | |
| Channels | 4 |
| Type | Power Relay (Form A) |
| Contact Rating | 5 A @ 250 VAC 5 A @ 30 VDC |
| Operate Time | 6 ms |
| Release Time | 3 ms |
| Electrical Endurance | 10^5 ops. |
| Mechanical Endurance | 2 x 10^7 ops. |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.8 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
