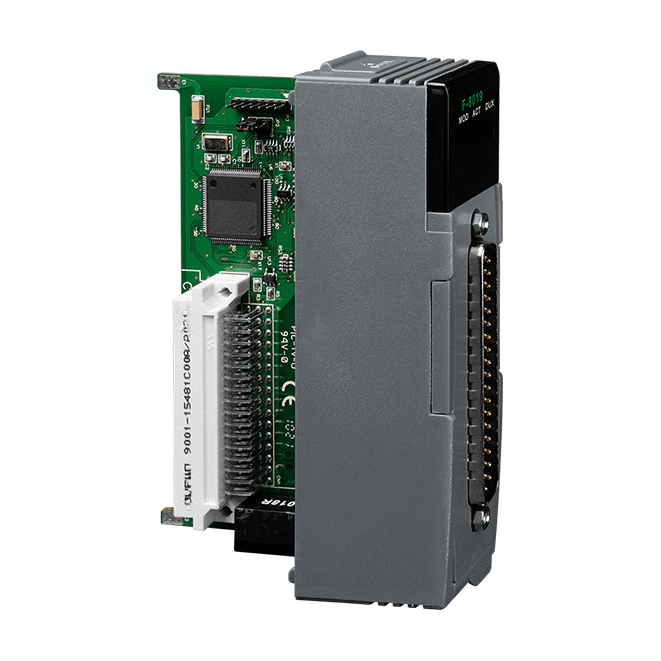

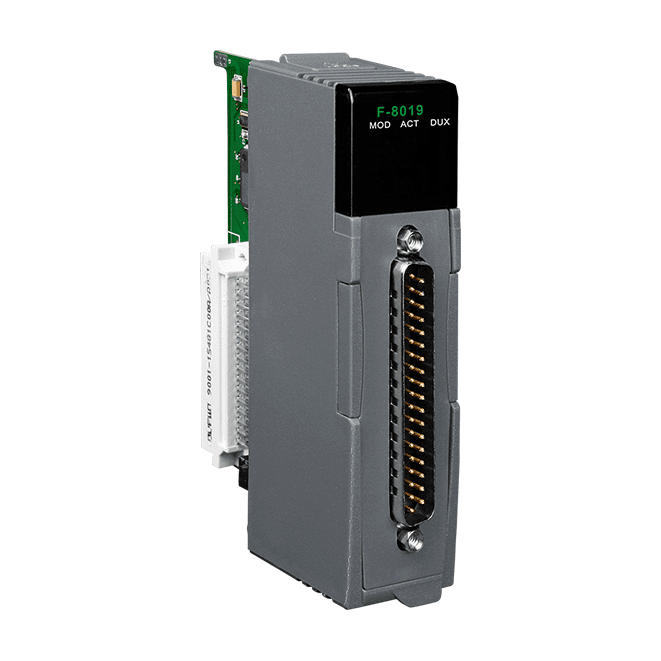

F-8019 8-ch Isolated Thermocouple Input Redundant Module
16-bit, 8-channel isolated thermocouple and voltage input module with redundancy, open wire detection and 3000 VDC isolation for iDCS-8000 system installations.
- 8 thermocouple and voltage input channels at 16-bit resolution
- Programmable input range on every channel, with user-defined up/down scale
- Thermocouple types J, K, T, E, R, S, B, N and C, plus millivolt and voltage ranges
- External CJC supported for accurate temperature measurement
- ±0.05% FSR accuracy with open wire detection
- 3000 VDC isolation between channels and backplane, and output to frame ground
481,00 € per piece
| 1–9 pcs | 481,00 € | |
|---|---|---|
| 10–30 pcs | 466,00 € | −3 % |
| 31+ pcs | 457,00 € | −5 % |
Info sui prodotti "F-8019 8-ch Isolated Thermocouple Input Redundant Module"
The F-8019 CR is a 16-bit, 8-channel analogue input module for thermocouple and voltage measurement. Each channel has its own programmable input range, covering millivolt, voltage and thermocouple types J, K, T, E, R, S, B, N and C, so one module can handle mixed sensor types within an iDCS-8000 system.
Designed for measurement reliability, the module supports an external cold junction compensation (CJC) for accurate temperature readings and offers ±0.05% FSR accuracy. Open wire detection helps identify broken sensor connections, while 3000 VDC isolation between the channels and the backplane, and between the output and frame ground, keeps faults on the field side from spreading into the rest of the system.
The redundancy function, with a switching time below 100 µs, suits applications where continuous acquisition matters. Typical areas include building automation, factory and machine automation, testing equipment and remote maintenance and diagnosis.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Analog Input Module |
|---|---|
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 x RUN, 1 x ACT, 1 x DUX and Communication (32 as channel 0~31 status) |
| Analog Input | |
| Channels | 8 |
| Type | Voltage, Thermocouple |
| Sensor Type | Type J, K, T, E, R, S, B, N, C |
| Range | Voltage: ±15mV, ±50mV, ±100mV, ±150mV, ±500mV, ±1V, ±2.5V, ±5V, ±10V Thermocouple: J: -210 ~ +1200 °C K: -270 ~ +1372 °C T: -270 ~ +400 °C E: -270 ~ +1000 °C R: -50 ~ +1765 °C S: -50 ~ +1765 °C B: 0 ~ +1820 °C N: -270 ~ +1300 °C C: 0 ~ +2320 °C |
| Resolution | 16 bit |
| Accuracy | ±0.05% FSR |
| Sampling Rate | 8 Samples/sec (Total) |
| Input Impedance | 10 MΩ |
| Common Mode Rejection | 106 dB |
| Normal Mode Rejection | 90 dB |
| Overvoltage Protection | Yes |
| Zero Drift | ±0.5 μV/°C |
| Span Drift | ±20 ppm/°C |
| Isolation | 3000 VDC |
| Analog Output | |
| Open Wire Detection | Yes |
| I/O Expansion | |
| I/O Type | DN-TC-M |
| Power | |
| Consumption | 1.3 W |
| Mechanical | |
| Dimensions (mm) | 30 x 85 x 115 |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
