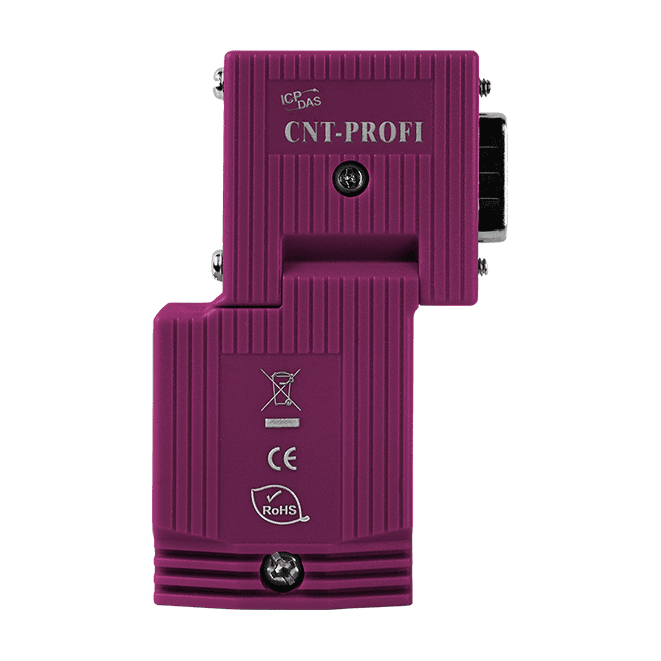

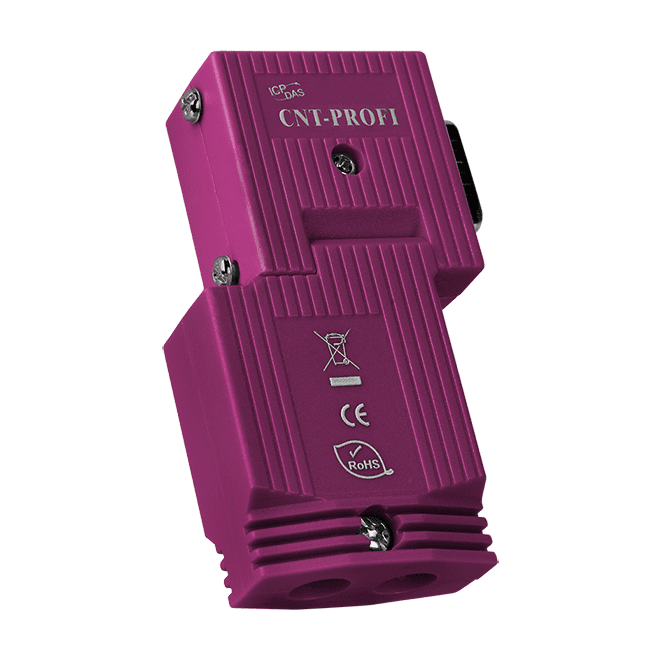

CNT-PROFI PROFIBUS Connector, 9-pin D-Sub with Terminating Resistors
Quick-connect PROFIBUS connector linking a node to the bus line without stripping conductors. Built-in terminating resistor switch, 9-pin D-Sub male, 90° cable outlet.
- Quick-connect technology, so bus conductors do not need stripping
- Built-in switch to select the terminating resistor
- Integrated terminating resistors in a plastic housing
- 9-pin D-Sub male connector with 90° cable outlet
- 2 cable entries
- Baud rate 9.6kbps ~ 12Mbps
34,00 € per piece
| 1–9 pcs | 34,00 € | |
|---|---|---|
| 10–30 pcs | 33,00 € | −3 % |
| 31+ pcs | 32,00 € | −6 % |
Informations sur le produit "CNT-PROFI PROFIBUS Connector, 9-pin D-Sub with Terminating Resistors"
The CNT-PROFI CR connects a PROFIBUS node to the PROFIBUS line. Its quick-connect technology means the bus conductors do not need to be stripped, so a device can be linked to the line quickly during installation.
The connector has a plastic housing with integrated terminating resistors, and a built-in switch lets you select the terminating resistor to suit the position of the node on the bus. It provides a 9-pin D-Sub male connector with a 90° cable outlet and two cable entries.
Supported baud rates are 9.6kbps ~ 12Mbps. The unit is rated for an operating temperature of -25 ~ +75 ℃ and a storage temperature of -30 ~ +80 ℃, with humidity of 10 ~ 90% RH, non-condensing.
Applications
- Factory automation
- Process automation
| Product type: | PROFIBUS connector |
|---|---|
| Interface: | 9-pin D-Sub |
| Protocol: | PROFIBUS |
| Operating temperature: | -25 ~ +75 ℃ |
| Housing: | Plastic |
Specifications
| PROFIBUS | |
|---|---|
| Baud Rate | 9.6kbps ~ 12Mbps |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
| Cable | |
| Type | 9-pin, D-Sub male connector |
| Angle | 90° cable outlet |
Specifications as published by the manufacturer. Subject to change.
