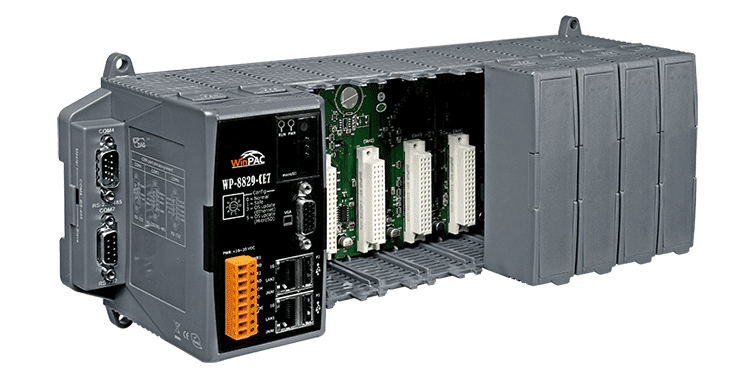

WP-8829-CE7 InduSoft WinPAC Controller, 8-Slot, Windows CE 7.0
8-slot WinPAC controller with pre-installed InduSoft Runtime on Windows CE 7.0, suited to HMI and SCADA work and expandable with I-8K and I-87K series I/O modules.
- Cortex-A8 1.0 GHz CPU with 512 MB DDR3 SDRAM and 256 MB flash
- Windows CE 7.0 Professional with InduSoft Runtime pre-installed
- 8 I/O expansion slots for I-8K and I-87K series modules
- 2 x 10/100/1000Base-TX Ethernet ports
- Redundant power inputs with one 1 A @ 24 VDC alarm relay
- Hard real-time capability and 64-bit hardware serial number for software protection
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Ei ole enam saadaval
Toote teave "WP-8829-CE7 InduSoft WinPAC Controller, 8-Slot, Windows CE 7.0"
WP-8829-CE7 CR is an 8-slot WinPAC controller that runs Windows CE 7.0 with the InduSoft Runtime pre-installed, giving engineers a single platform for human machine interface and supervisory control tasks. The ordering code corresponds to the 300-tag InduSoft variant.
The controller is built around a Cortex-A8 CPU clocked at 1.0 GHz, with 512 MB of DDR3 SDRAM and 256 MB of flash. Its eight I/O expansion slots accept I-8K (parallel-type) and I-87K (serial-type) series modules, so the system can be tailored to the signals in a given panel or machine.
For connectivity, the unit provides two 10/100/1000Base-TX Ethernet ports, two USB connectors and four serial ports, including an RS-485 port with 3000 VDC isolation. Redundant power inputs with an alarm relay add supply resilience, and the unit is rated for operation from -25 to +75 °C.
Applications
- Human machine interface (HMI) development
- Supervisory control and data acquisition (SCADA)
- Industrial automation panels and machine control with expandable I/O
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 Ethernet, 4 serial, 2 USB |
| Isolation: | 3000 VDC (RS-485 port) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifications
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8 (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | DDR3 SDRAM: 512 MB |
| Storage | Flash 256: MB; microSD slot with one microSD card (support up to 32 GB) |
| Non-Volatile Memory | MRAM: 128 KB; EEPROM: 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Signal | VGA: 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x Programmable |
| I/O Expansion | |
| Slots | 8 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | Yes (8 bits) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 2 x RS-232, Non-isolated; 1 x RS-232/485, Non-isolated; 1 x RS-485 (3000VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 9.6 W (0.4 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 355 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
