VP-4238-CE7 10.4" Win-GRAF ViewPAC, Cortex-A8 WinCE 7.0 with 3 I/O Slots
Panel-mount 10.4-inch Win-GRAF ViewPAC with a 1 GHz Cortex-A8 CPU, Windows CE 7.0, IP65 front panel and three slots for high profile I/O modules.
- Cortex-A8 CPU at 1.0 GHz running Windows CE 7.0 with 512 MB SDRAM and 256 MB Flash
- Embedded Win-GRAF SoftLogic (IEC 61131-3) with hard real-time capability
- 10.4" TFT LCD, 800 x 600 resolution, 5-wire resistive touch panel with rubber keypad
- Three slots for high profile I-8K or I-87K I/O modules
- Modbus RTU/TCP master and slave, Modbus ASCII master, OPC UA server and DCON protocol
- IP65 / NEMA 4 front panel with panel-mount installation
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Ei ole enam saadaval
Toote teave "VP-4238-CE7 10.4" Win-GRAF ViewPAC, Cortex-A8 WinCE 7.0 with 3 I/O Slots"
The VP-4238-CE7 CR combines an IEC 61131-3 soft PLC, an HMI and a Windows CE 7.0 runtime in one panel-mounted unit. Its 1 GHz Cortex-A8 processor and 10.4-inch TFT LCD with rubber keypad let an engineer run control logic and operator screens on the same device, without a separate PC or panel terminal.

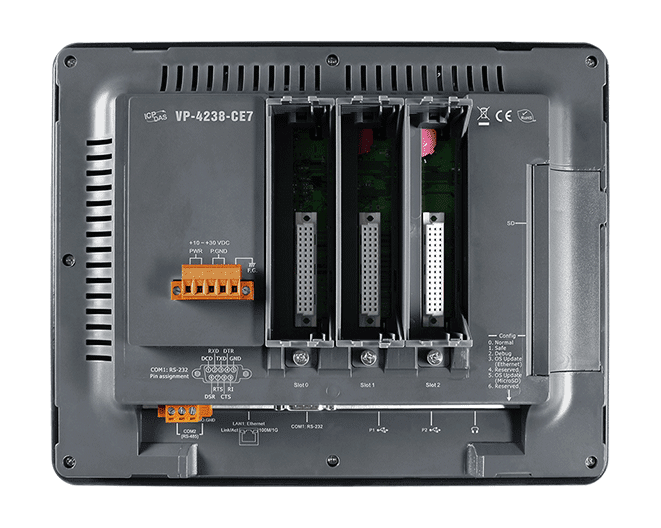

Three slots accept high profile I-8K parallel or I-87K serial I/O modules, so the controller can be sized to the application. Communication is covered by Ethernet, RS-232, RS-485 and two USB 2.0 ports, with Modbus RTU/TCP, Modbus ASCII, OPC UA and DCON support. Win-GRAF applications and the included eLogger HMI editor can be combined with Visual Studio 2008 (VB .NET, C#) for custom HMI and data management work.
- Embedded Win-GRAF SoftLogic with eLogger HMI and Visual Studio 2008 SDK options
- IP65 / NEMA 4 front panel for panel mounting
- +10 ~ 30 VDC input with redundant power inputs
This ordering code is listed as RoHS compliant. Operating range is -20 ~ +70°C with a 10 ~ 90% RH non-condensing humidity rating.
Applications
- Panel-mounted operator terminals combining HMI screens with control logic
- Machine and process control where IEC 61131-3 logic and touch operation are needed in one unit
- Data logging and file access on a Windows CE platform
| Product type: | Win-GRAF ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB 2.0 |
| Protocol: | Modbus RTU/TCP, OPC UA |
| Ports: | 5 |
| Isolation: | RS-485 2500 VDC |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel |
| Housing: | Plastic |
Specifications
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocol • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Function | • eLogger HMI • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB SDRAM, 256 MB Flash |
| Storage | A SD/microSD adapter and 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | LCD |
| Size | 10.4" (4:3) |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Contrast Ratio | 500:1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 3 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Audio | |
| Jack | Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 0.45 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 293 x 229 x 129 (W x L x H) |
| Panel Cut-out (mm) | 276 x 214, ±1 (W x H) |
| Installation | Panel mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 3.6 Kg |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
