UA-5231M IIoT Communication Server with OPC UA, MQTT and SNMP
IIoT communication server with a metal DIN-rail case and one 10/100/1000 Base-TX Ethernet port, bridging Modbus, EtherNet/IP and MQTT I/O data to OPC UA, MQTT and SNMP.
- Gateway from Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP sources to OPC UA, MQTT and SNMP, enabled simultaneously
- Data logger writing I/O data to remote MS SQL, MySQL or MariaDB databases and to local MicroSD CSV files
- Offline data recovery mechanism for the remote database
- Built-in MQTT broker with WebSocket support
- Security features including HTTPS, OpenVPN client, SNMP v3, communication encryption and dynamic blocklist/whitelist
- Cloud connectivity to Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, with IFTTT notifications
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Ei ole enam saadaval
Toote teave "UA-5231M IIoT Communication Server with OPC UA, MQTT and SNMP"
UA-5231M CR is an IIoT communication server that links IT and OT systems. It polls remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT or EtherNet/IP and republishes that data as OPC UA, MQTT and SNMP at the same time, so one unit can serve MES, ERP, SCADA and cloud systems together.
The data logger writes I/O data to a remote MS SQL, MySQL or MariaDB database and to CSV files on a microSD card, building a local historical record. An offline data recovery mechanism protects the remote database connection, which supports one database connection with up to 1000 tags. Cloud connectivity covers Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, while IFTTT can trigger app notifications when an event occurs.
Security options include HTTPS, an OpenVPN client, SNMP v3, communication encryption and dynamic blocklist and whitelist filtering. The metal case mounts on DIN-rail and is rated for -25 ~ +75°C operation. An optional XV-board can add I/O or RS-485 ports, on Rev.B units only.
Applications
- Connecting remote I/O and controllers to MES, ERP and SCADA systems
- Uploading I/O data to cloud IIoT platforms
- Historical data logging to remote databases and local files
- Event-triggered notifications via IFTTT
| Product type: | IIoT communication server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB |
| Protocol: | EtherNet/IP, Modbus TCP, MQTT, OPC UA, SNMP |
| Ports: | 1 x Ethernet, 2 x RS-485, 2 x RS-232 |
| Isolation: | 2500 VDC (RS-485) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifications
| Data Logger | |
|---|---|
| Local Data Logger | Record I/O data, and save to the local MicroSD card in CSV format. |
| Remote Database | Record I/O data, and send to the remote database of MS SQL, MySQL and MariaDB. Support keeping 1 database connection, with a max. 1000 Tags. |
| Software | |
| OS | Linux Kernel 3.2.14 |
| Protocol | · OPC UA Server · MQTT Broker/Client · Modbus TCP Master · Modbus RTU/ASCII Master · EtherNet/IP Scanner · SNMP Agent · OpenVPN Client |
| Function | · PID Function · Internal Module |
| IoT Service Integration | · Microsoft Azure · Amazon Web Services · IBM Cloud · ThingSpeak · IFTTT |
| Main Unit | |
| CPU | ARM CPU, 1.0 GHz |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 8 GB eMMC microSD socket with one 32 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Display | |
| Signal | VGA (Analog RGB), reserved |
| LED Indicators | |
| Status | 1 x PWR/RUN 2 x User Defined LEDs |
| I/O Expansion | |
| I/O Type | 1 Expansion Port. Support 1 optional XV-board to expand I/O or RS-485 ports(For Rev.B version only) (*1) |
| HMI | |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (console) 1 x RS-232 2 x RS-485 (2500VDC Isolated) |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | 7N1, 7E1, 7O1, 7N2, 7E2, 7O2, 8N1, 8E1, 8O1, 8N2, 8E2, 8O2 (Among which, Modbus RTU is available in: 8N1, 8E1, 8O1, 8N2) |
| USB | |
| Connector | 1 x 2.0 host |
| Power | |
| Input Range | +12 ~ +48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
Downloads
Logi sisse
Sarnased tooted
The UA-5231M-4GE CR is an IIoT communication server for linking field devices with IT systems. It reads data from remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII and EtherNet/IP, then makes that data available simultaneously over OPC UA, MQTT and SNMP. The 4G LTE (FDD) link allows it to reach cloud services and remote sites where a wired network is not available.For data logging, the unit can write I/O values to a remote MS SQL, MySQL or MariaDB database, supporting one database connection with up to 1000 tags, while also saving records to a local microSD card in CSV format. An offline data recovery mechanism is included for the remote database. Security features include HTTPS, an OpenVPN client, SNMP v3, communication encryption, and a dynamic blocklist and whitelist.Cloud connectivity covers Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, while IFTTT logic can trigger app notifications. A PID function is available for local control logic. The metal case is designed for DIN-rail mounting and is rated for an operating temperature of -25 ~ +75°C. This variant is intended for Asia only, except China.ApplicationsConnecting remote I/O modules and controllers to MES, ERP and SCADA systemsUploading I/O data to Microsoft Azure, Amazon Web Services, IBM Cloud or ThingSpeakLogging I/O data to remote SQL databases with local backup on microSDTriggering mobile app notifications from machine events via IFTTT
IIoT Communication Server with 1 Ethernet Port (Plastic Case).

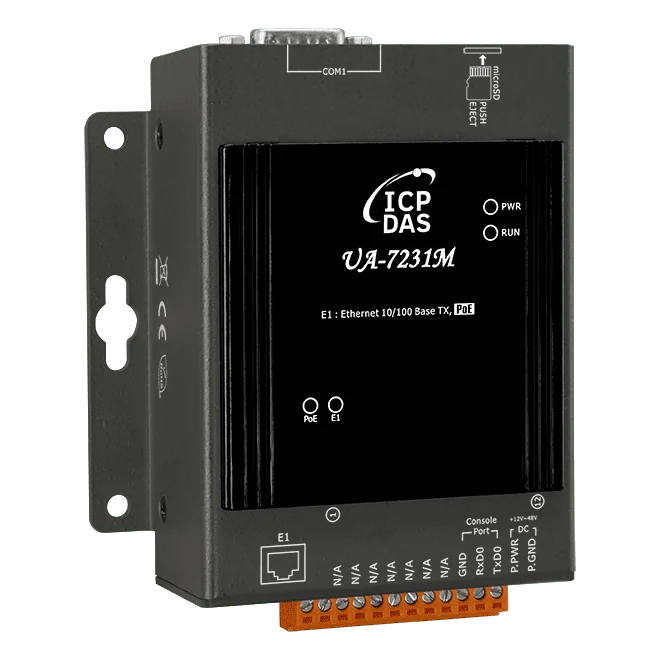

The UA-7231M CR is an IIoT communication server that links field devices to IT systems. It polls remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP, then republishes that data through OPC UA, MQTT and SNMP, which can run at the same time. This makes it a practical bridge between shop-floor equipment and MES, ERP or SCADA platforms.Data logging is built in. I/O values can be written to a remote MS SQL, MySQL or MariaDB database, or saved as CSV files on a microSD card. If the remote database becomes unavailable, the offline recovery mechanism helps keep the record intact. Cloud connectivity covers Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, and IFTTT can trigger app notifications from events.The unit is powered from +12 ~ +48 VDC or via PoE (IEEE 802.3af, Class 1) and mounts on a DIN rail in a metal case. The CR ordering code is the RoHS-listed version of the UA-7231M.ApplicationsConnecting shop-floor I/O and controllers to MES, ERP and SCADA systemsIndustrial IoT data collection and cloud reportingHistorical data logging to remote databases or local microSD storageEvent-driven alerts through IFTTT mobile app notifications
