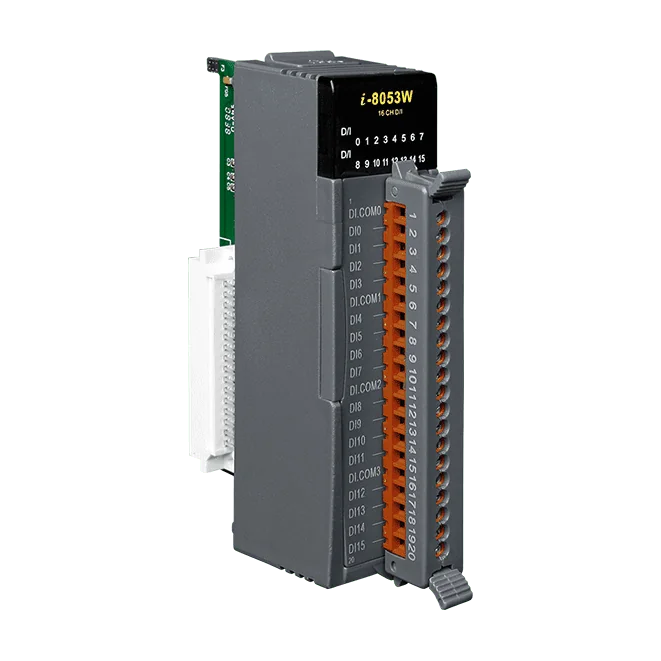

I-8053W-G 16-Channel Isolated Digital Input Module, Wet Contact 10~30 VDC
16-channel isolated digital input module for wet contact signals at 10~30 VDC, with sink/source input type, 16 status LEDs and 3750 VDC intra-module isolation for industrial I/O.
- 16 isolated digital input channels for wet contact signals at +10 ~ +30 VDC
- Supports both sink and source type digital inputs
- Dry contact operation with an effective distance of up to 500 metres
- 3750 VDC intra-module isolation for improved noise immunity
- ±4 kV ESD protection on each terminal
- 16 I/O LED indicators plus a power and communication LED
102,00 € per piece
| 1-9 pcs | 102,00 € | |
|---|---|---|
| 10-30 pcs | 99,00 € | −3 % |
| 31+ pcs | 97,00 € | −5 % |
Toote teave "I-8053W-G 16-Channel Isolated Digital Input Module, Wet Contact 10~30 VDC"
I-8053W-G is a 16-channel digital input module from the I-8K/I-87K High Profile series, intended for engineers who need to read a bank of switch or sensor signals with galvanic separation. It accepts wet contact signals in the +10 ~ +30 VDC range and can also be used with dry contacts, which extends its reach to field wiring up to 500 metres in length.
Each channel is isolated from the logic side and the module offers 3750 VDC intra-module isolation, together with ±4 kV ESD protection on each terminal. A status LED is provided for power and communication, and one LED per input channel shows the state of each input, which simplifies commissioning and fault finding on the bench or in the cabinet.
- Typical use in building, factory and machine automation, remote maintenance and diagnosis, and test equipment.
Applications
- Building automation
- Factory automation
- Machine automation
- Remote maintenance
- Remote diagnosis
- Testing equipment
| Product type: | Digital input module |
|---|---|
| Digital inputs: | 16 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input | |
| Channels | 16 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ +30 VDC |
| OFF Voltage Level | +4 VDC Max. |
| Input Impedance | 3 kΩ, 0.5W |
| Power | |
| Consumption | 0.4 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95 % RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
