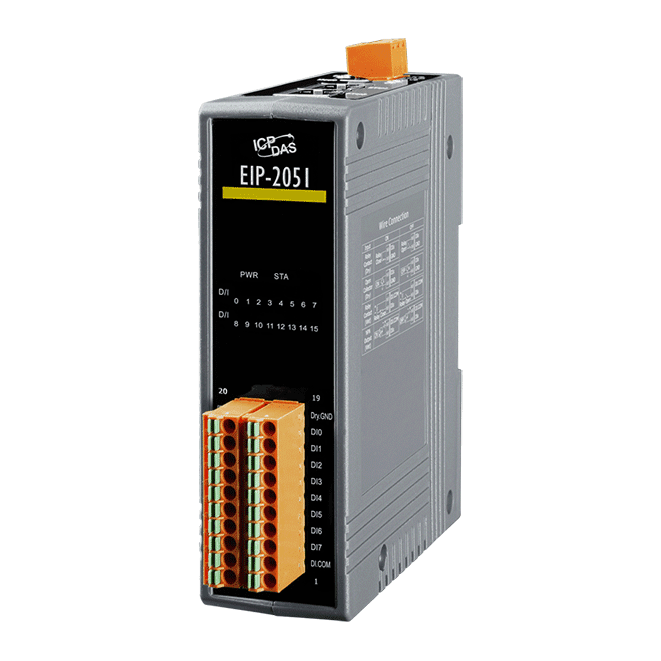

EIP-2051 EtherNet/IP Remote I/O Module, 16-ch Isolated Digital Input
EtherNet/IP adapter module with 16 isolated digital inputs, counter support and dual RJ-45 ports for daisy chain Ethernet connection.
- EtherNet/IP adapter with 16 digital input/counter channels
- Wet and dry contact inputs with sink/source operation, ON level +5 VDC to +50 VDC
- 32-bit counters (max. 4294967295) and 3 kHz counting frequency

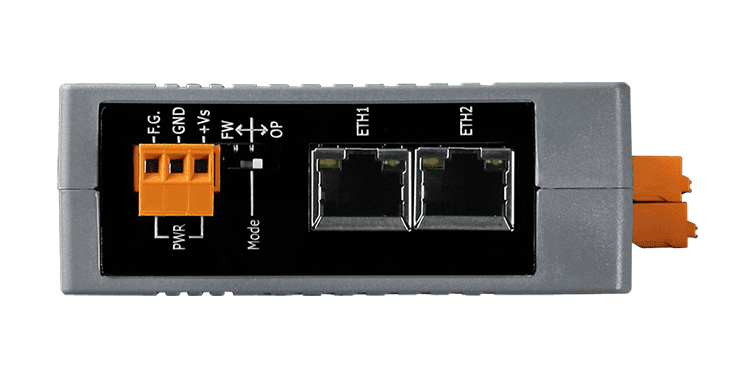

- Two 10/100 Base-TX RJ-45 ports with auto MDI/MDIX and daisy chain support

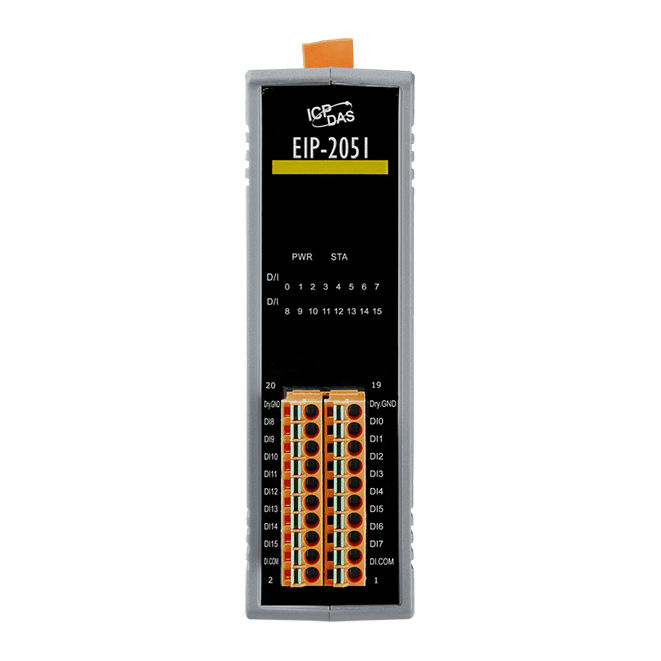

- Input and connection status indicated by LEDs
- Isolated input design with +70 VDC overvoltage protection
182,00 € per piece
| 1–9 pcs | 182,00 € | |
|---|---|---|
| 10–30 pcs | 177,00 € | −3 % |
| 31+ pcs | 173,00 € | −5 % |
Toote teave "EIP-2051 EtherNet/IP Remote I/O Module, 16-ch Isolated Digital Input"
EIP-2051 is an EtherNet/IP remote I/O module that brings 16 digital input and counter channels onto an Ethernet network. It works as an EtherNet/IP adapter, so it can be placed on the factory floor and tied into the wider network without a separate fieldbus gateway.
The inputs accept wet or dry contacts with sink/source operation, and the 32-bit counters run at up to 3 kHz. Input status and connection status are shown by LEDs, which simplifies commissioning and fault finding. Two auto-negotiating 10/100 Base-TX RJ-45 ports support daisy chain wiring, while star, line and ring topologies are also supported.
Engineers choosing this module for building, factory or machine automation, or for remote diagnosis and maintenance, will benefit from its isolated input design, removable terminal block and firmware updates over Ethernet.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis
- Testing Equipment
| Product type: | Remote I/O module |
|---|---|
| Interface: | Ethernet |
| Protocol: | EtherNet/IP |
| Digital inputs: | 16 |
| Ports: | 2 |
| Isolation: | Isolated |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| Digital Input/Counter | |
|---|---|
| Channels | 16 |
| Type | Wet Contact/Dry Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +5 VDC ~ +50 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 32-bit (4294967295) |
| Frequency | 3 kHz |
| Input Impedance | 7.5 kΩ |
| Overvoltage Protection | +70 VDC |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection. |
| Protocol | Ethernet/IP (Adapter) |
| Power | |
| Consumption | Non-RevB: 1.6W ; RevB: 2.9W Max |
| Mechanical | |
| Dimensions (mm) | 110 x 90 x 33 (H x W x D) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25℃ ~ +75℃ |
| Storage Temperature | -30℃ ~ +80℃ |
Specifications as published by the manufacturer. Subject to change.
