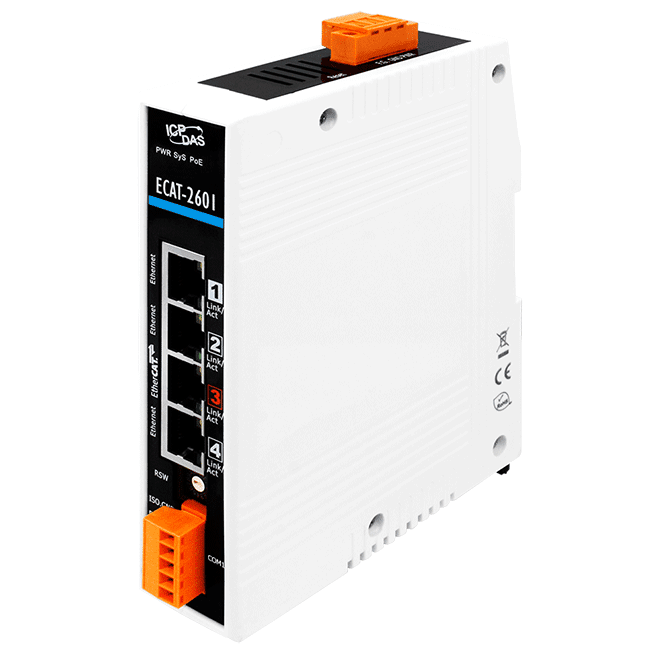

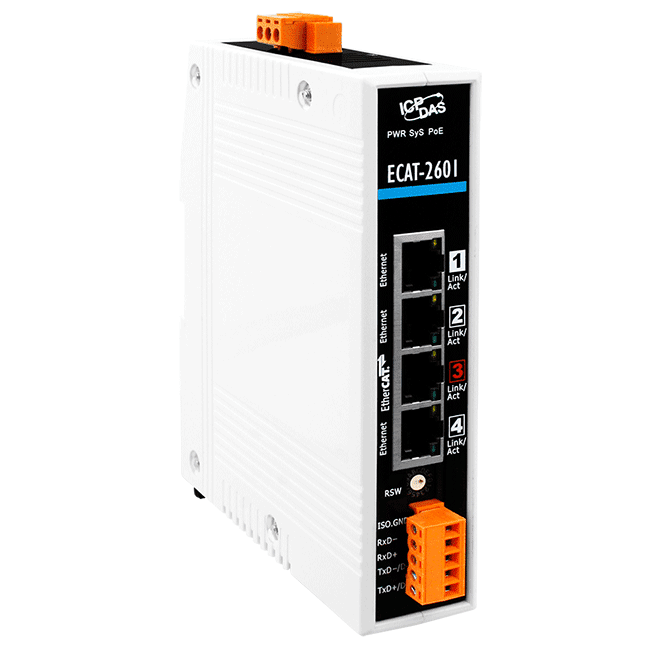

ECAT-2601 EtherCAT MainDevice Gateway for Modbus and OPC UA
Protocol converter gateway linking EtherCAT with Modbus and OPC UA networks. Built-in EtherCAT MainDevice with a data exchange buffer, DIN-rail mounted, for integrators and OEMs.
- Built-in EtherCAT MainDevice that connects to SubDevice PDO without requiring an ESI file
- Supports third-party EtherCAT SubDevices, Free Run mode and a minimum cycle time of 125us
- Modbus Server support over Modbus TCP, Modbus TCP/TLS and Modbus UDP, plus Modbus RTU (Slave) on the 422/485 port
- Integrated OPC UA Server that standard clients can connect to directly
- Automatically connects to EtherCAT SubDevices within 10 seconds after power-on
- User-defined SDO startup entries and distributed clocks
869,00 € per piece
| 1–9 pcs | 869,00 € | |
|---|---|---|
| 10–30 pcs | 843,00 € | −3 % |
| 31+ pcs | 826,00 € | −5 % |
Toote teave "ECAT-2601 EtherCAT MainDevice Gateway for Modbus and OPC UA"
The ECAT-2601 CR is a gateway that connects an EtherCAT network with Modbus and OPC UA systems. Its built-in EtherCAT MainDevice drives EtherCAT SubDevices directly, and a shared data exchange buffer makes their I/O data available to Modbus masters over Modbus TCP and Modbus RTU (slave).
Engineers will value that it connects to SubDevice PDO without requiring an ESI file and supports third-party EtherCAT SubDevices. Free Run mode is supported, the minimum cycle time is 125us, and it reconnects to SubDevices within 10 seconds after power-on. User-defined SDO startup entries can be set, and configuration is handled through the built-in web interface over HTTP/HTTPS.
An OPC UA Server in the firmware lets standard OPC UA clients connect without custom development, covering machine-to-machine communication as well as links to SCADA systems and cloud platforms. The ordering code ECAT-2601 CR denotes the RoHS-compliant version, and the unit mounts on DIN-rail.
Applications
- Machine-to-machine data exchange between EtherCAT and Modbus systems
- Vertical integration of EtherCAT machines with SCADA systems
- Connecting EtherCAT machines to cloud platforms via OPC UA
- Integrating third-party EtherCAT SubDevices into Modbus or OPC UA networks
| Product type: | Gateway |
|---|---|
| Interface: | EtherCAT, Ethernet, RS-422/485 |
| Protocol: | EtherCAT, Modbus RTU, Modbus TCP, OPC UA |
| PoE: | IEEE 802.3af, Class 2 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifications

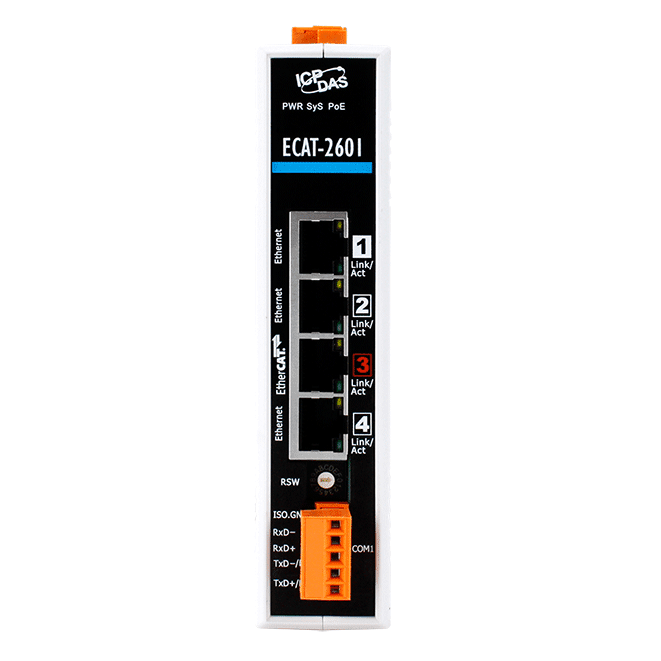

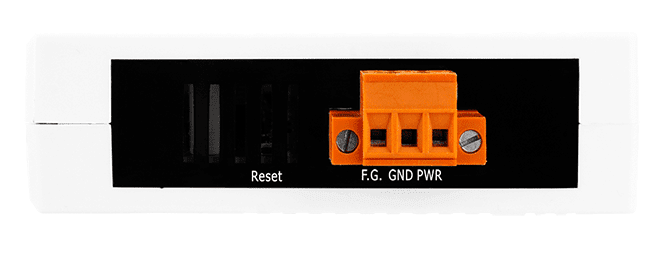

| Software | |
|---|---|
| Function | • Web Interface for Configuration |
| Ethernet | |
| Ports | RJ-45 x 3 2 x Distance between Stations: Max. 100 m (100BASE-TX) 1 x PoE (IEEE 802.3af, Class 2) |
| Protocol | Modbus TCP, Modbus TCP/TLS, Modbus UDP, OPC UA, SNTP, HTTP/HTTPS, IPv4, IPv6 |
| COM Ports | |
| Ports | 1 x 422/485 |
| Protocol | Modbus RTU (Slave) |
| EtherCAT | |
| Ports | RJ-45 x 1 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Cycle Time | 0.125 ~ 32ms |
| Distributed Clocks | Yes |
| Power | |
| Consumption | 0.22 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 2 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 119 x 31 x 157 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
