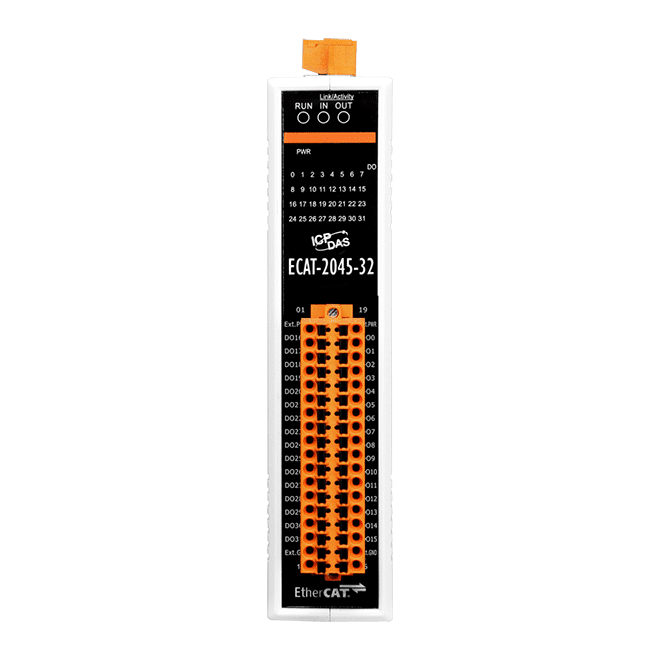

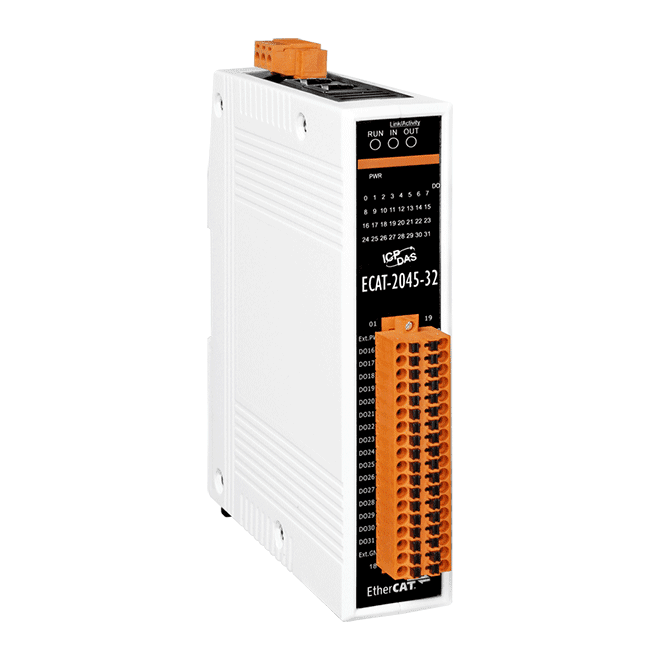

ECAT-2045-32 EtherCAT I/O Module, 32-ch Isolated Digital Output (Sink, NPN)
EtherCAT SubDevice module with 32 isolated sink-type (NPN) digital outputs, 500 mA per channel, daisy-chain wiring and two RJ-45 ports for DIN-rail installation.
- 32 isolated digital outputs, open-collector sink (NPN), 500 mA per channel
- Load voltage +3.5 VDC ~ +50 VDC with 3750 Vrms isolation
- Two RJ-45 EtherCAT ports supporting daisy-chain connection
- Up to 100 m between stations (100BASE-TX) with shielded CAT5 or better cable
- 1 ms cycle time with distributed clocks
- ESD protection of ±4 kV contact for each channel
222,00 € per piece
| 1–9 pcs | 222,00 € | |
|---|---|---|
| 10–30 pcs | 215,00 € | −3 % |
| 31+ pcs | 210,00 € | −5 % |
Toote teave "ECAT-2045-32 EtherCAT I/O Module, 32-ch Isolated Digital Output (Sink, NPN)"
The ECAT-2045-32 is an EtherCAT SubDevice that adds 32 isolated digital outputs to an EtherCAT network. Each channel is an open-collector sink (NPN) output rated at 500 mA, switching loads from +3.5 VDC to +50 VDC, with 3750 Vrms isolation between the field side and the bus.
Two RJ-45 ports allow the module to be daisy-chained, so cabling can follow star, line or ring layouts with fewer switches and less infrastructure. Stations can be spaced up to 100 m apart over 100BASE-TX, and distributed clocks are supported with a 1 ms cycle time.
- Status of each output is visible on the LED indicators as well as in the process data.
- Verified with the EtherCAT conformance test tool, so it works with any compliant EtherCAT Main Device or configurator.
Applications
- Semiconductor tools
- Metal forming
- Packaging
- Injection moulding
- Assembly systems
- Printing machines
- Robotics
| Product type: | Digital output module |
|---|---|
| Interface: | EtherCAT |
| Protocol: | EtherCAT |
| Digital outputs: | 32 |
| Ports: | 2 x RJ-45 |
| Isolation: | 3750 Vrms |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifications
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: ±1 kV Class A; Power: ±1 kV Class A |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Channel |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Digital Output | |
| Channels | 32 |
| Type | Open Collector (Sink , NPN) |
| Load Voltage | +3.5 VDC ~ +50 VDC |
| Load Current | 500 mA/Channel |
| Isolation | 3750 Vrms |
| EtherCAT | |
| Ports | 2 x RJ-45 |
| Distance Between Stations | 100 m Max. (100Base-TX) |
| Data Transfer Medium | Ethernet/EtherCAT cable (Min. CAT5), shielded |
| Cycle Time | 1 ms |
| Distributed Clocks | Yes |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 4 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 126 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
