DN-09-2F Two Male DB9 to Screw Terminal Board, DIN-rail Mount

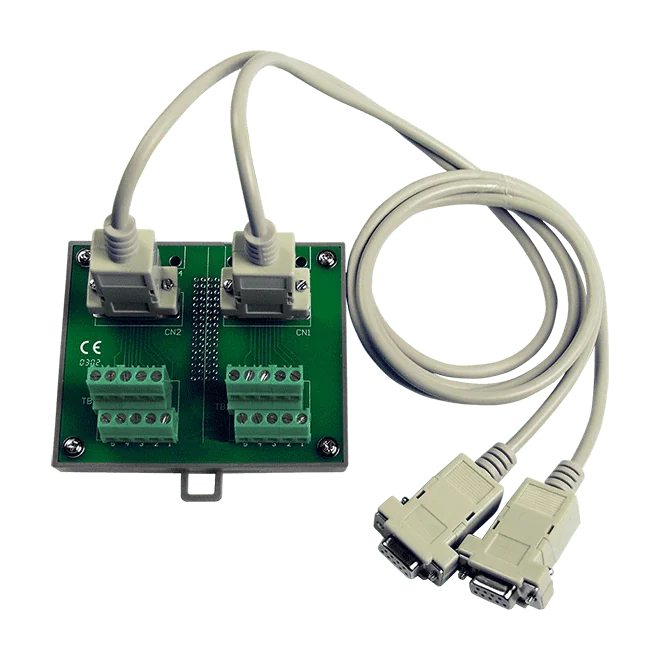

Breakout board with two male DB9 connectors feeding pin-to-pin screw terminals on a DIN rail. Supplied with two 1 m DB9 RS-232 cables (CA-0910F).
- Two 9-pin male D-sub connectors
- Pin-to-pin screw terminal connection for I/O
- 5.08 mm terminal pitch
- DIN-rail mounting, 103 mm x 86 mm
- Includes two CA-0910F 1 m DB9 RS-232 cables (Pin1-Pin9)
- Operating temperature 0 ~ 60°C
60,00 € per piece
| 1-9 pcs | 60,00 € | |
|---|---|---|
| 10-30 pcs | 57,00 € | −5 % |
| 31+ pcs | 54,00 € | −10 % |
Toote teave "DN-09-2F Two Male DB9 to Screw Terminal Board, DIN-rail Mount"
DN-09-2F CR is a DIN-rail breakout board that brings the signals of two male 9-pin D-sub connectors out to screw terminals, so field wiring can be connected without custom cabling. Each DB9 pin maps directly to its corresponding screw terminal.
The ordering code includes two CA-0910F cables, each a 1 m DB9 female to DB9 female cable wired for RS-232 (Pin1-Pin9), allowing the board to be connected straight to a compatible DB9 port. The board measures 103 mm x 86 mm and mounts on a DIN rail with a 5.08 mm terminal pitch.
Rated for an operating temperature of 0 ~ 60°C and a storage temperature of -20 ~ 70°C, at 5% ~ 90% RH non-condensing. Certified CE, UKCA, FCC, RoHS and WEEE.
Applications
- Breaking out D-sub I/O to screw terminals on a DIN rail
| Product type: | DAQ daughter board |
|---|---|
| Interface: | DB9 (D-sub) |
| Ports: | 2 |
| Operating temperature: | 0 ~ 60°C |
| Mounting: | DIN-rail |
Specifications
| Mechanical | |
|---|---|
| Dimensions (mm) | 103 mm x 86 mm |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
