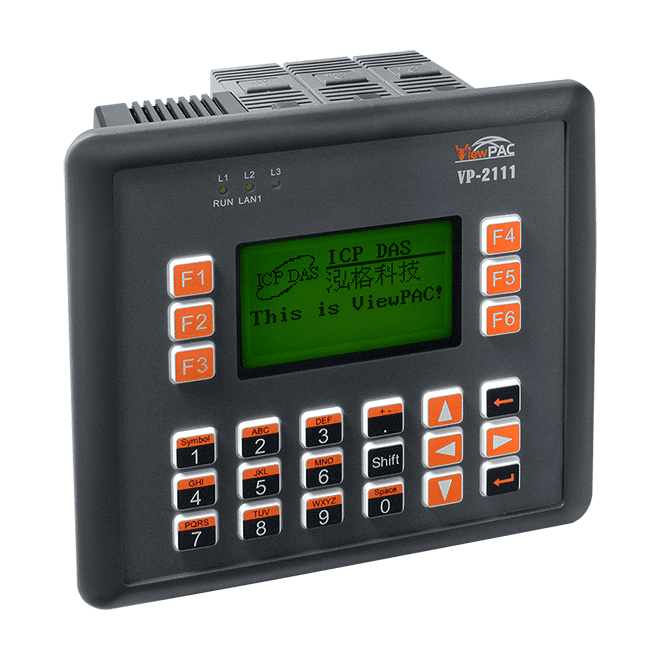

VP-2111-TC ViewPAC Panel PAC with MiniOS7 and 3 I/O Slots
A standard ViewPAC that combines a PAC, graphic LCD and 24-key rubber keypad in one IP65 front-panel unit, with three slots for I-8K and I-87K I/O modules.
- 80186 CPU at 80 MHz with MiniOS7 embedded operating system
- Three slots for high-profile I-8K and I-87K series I/O modules
- STN 128x64 dot-matrix LCD with English and Traditional Chinese fonts
- 24-key rubber keypad and buzzer
- One 10/100M Ethernet port plus RS-232, RS-485 and RS-232/RS-485 serial ports
- 64 MB NAND flash for data storage and 512 KB dual battery backup SRAM
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Již není k dispozici
Informace o výrobku "VP-2111-TC ViewPAC Panel PAC with MiniOS7 and 3 I/O Slots"
VP-2111-TC is a panel-mounted ViewPAC built around an 80186 CPU running at 80 MHz under the DOS-like MiniOS7 operating system. Engineers get local operator interaction and control logic in a single wall-mounted unit, rather than pairing a separate HMI with a PLC.

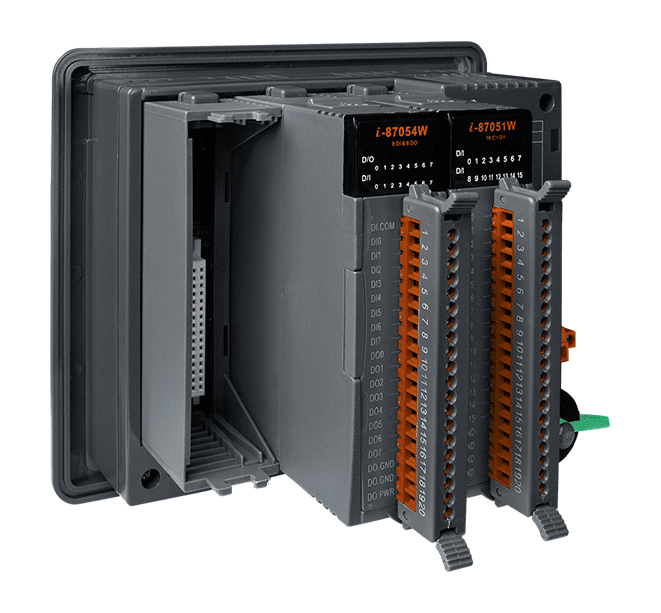

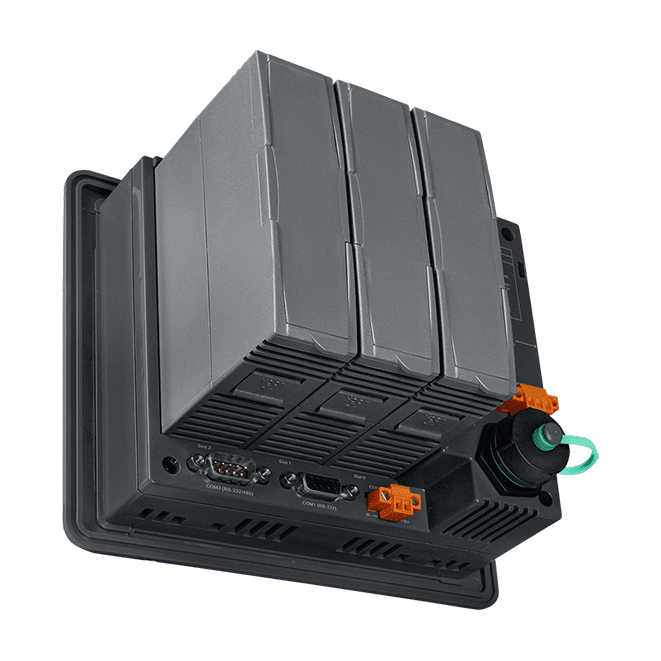

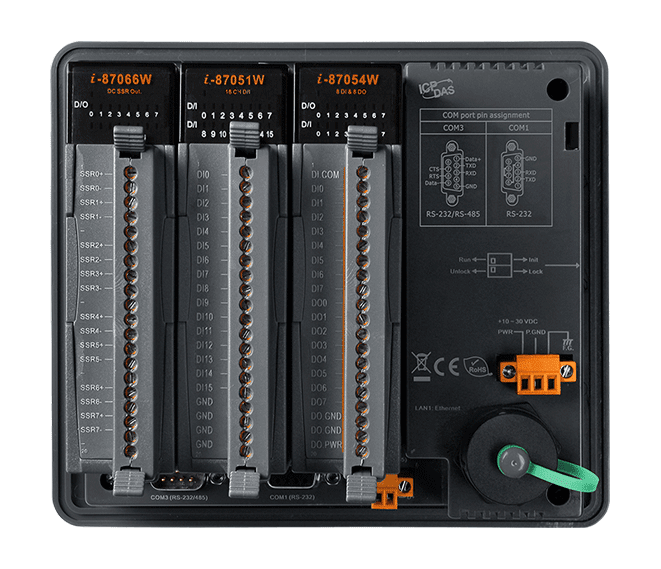

The unit has three slots for high-profile I-8K and I-87K series modules, covering digital, analogue, counter/frequency and motion control functions. Communication is provided by one 10/100M Ethernet port and three serial ports (RS-232, RS-485 and a switchable RS-232/RS-485), and programs can be loaded over RS-232 or Ethernet. Software is developed in C with a provided toolkit and Modbus library.

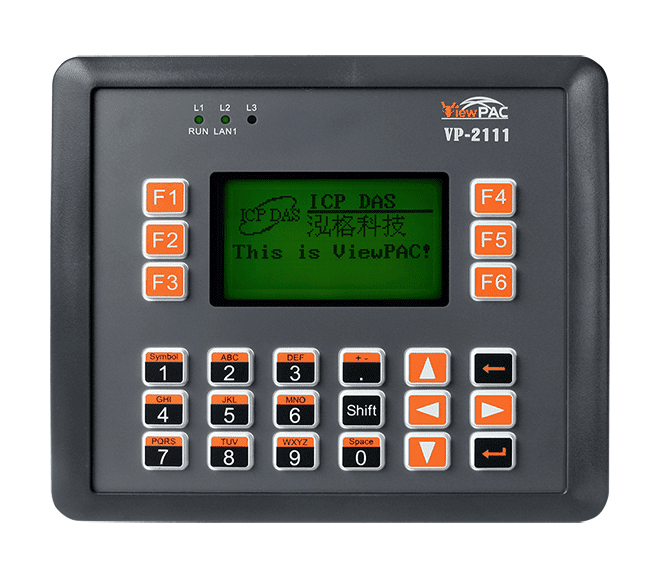

The -TC version ships with an STN LCD that supports both English and Traditional Chinese text. It is rated for an operating range of -15 ~ +55 °C and has an IP65 front panel.
- Suits cabinet-door and machine-side panels where display, keypad and control are needed together.
Applications
- Local operator panels combining HMI and control functions
- Machine-side and control-cabinet door panels with I/O expansion
| Product type: | Panel PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Ports: | 4 |
| Isolation: | RS-485 2500 VDC |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -15 ~ +55 °C |
| Mounting: | Wall |
| Housing: | IP65 front panel |
Specifications
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NAND Flash | 64 MB |
| NVRAM | 31 Bytes |
| SRAM | 768 KB SDRAM, 512 KB Dual battery backup SRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | STN, 128x64 Dot Matrix LCD |
| Text Font | English + Traditional Chinese |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 1 x Ethernet/3 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 3 |
| HMI | |
| Buzzer | Yes |
| Rubber Keypad | 24 |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 (2500 VDC Isolated), 1 x RS-232/RS-485 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Consumption | 6.0 W |
| Mechanical | |
| Dimensions (mm) | 182 x 158 x 125 (W x L x H) |
| Installation | Wall mounting |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 635 g |
| Environment | |
| Operating Temperature | -15 ~ +55 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 5 ~ 90 % RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
