PM-3112-240P-MTCP Single-Phase Power Meter, 2 Loops, Modbus TCP, 200 A CT

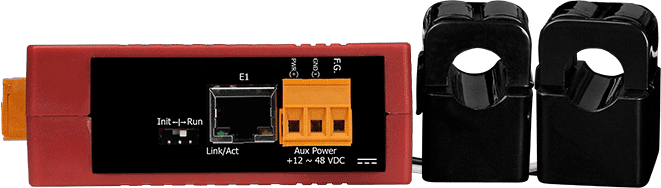

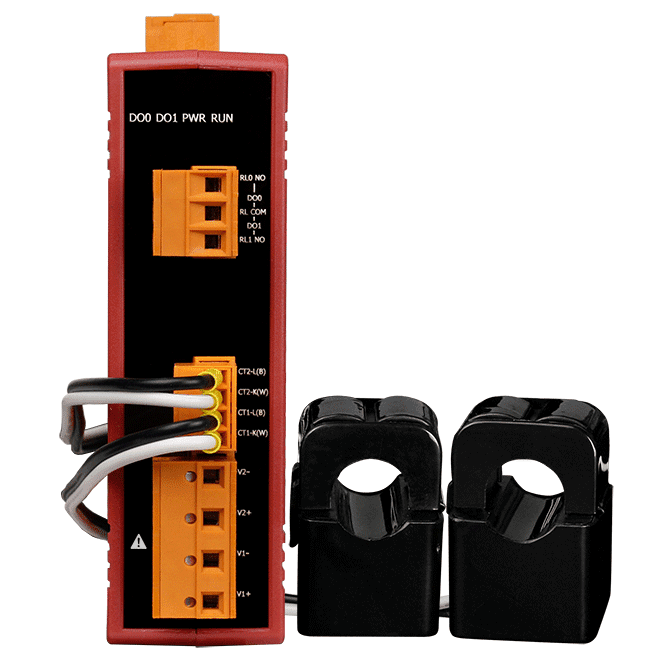

Modbus TCP single-phase power meter with two independent loops, true RMS measurement and two Form A power relay outputs, supplied with two 200 A clip-on CTs (24 mm, 4 m lead).
- True RMS measurement of voltage, current, active, reactive and apparent power, energy and power factor
- Single-phase two-loop energy analysis for 1P2W with independent reference voltages per loop
- Two clip-on 200 A CTs (24 mm inside diameter, 4 m lead) for quick installation without disconnecting conductors
- Current range 0.15 A to 200 A and voltage input 10 to 300 VAC
- Active power accuracy better than 0.5% at PF=1
- Two Form A power relay outputs rated 5 A at 250 VAC or 30 VDC for alarm messages
415,00 € per piece
| 1-9 pcs | 415,00 € | |
|---|---|---|
| 10-30 pcs | 395,00 € | −5 % |
| 31+ pcs | 374,00 € | −10 % |
Informace o výrobku "PM-3112-240P-MTCP Single-Phase Power Meter, 2 Loops, Modbus TCP, 200 A CT"
PM-3112-240P-MTCP CR is a compact single-phase energy meter for monitoring real-time electrical usage on two independent loops. It reports true RMS voltage and current, active, reactive and apparent power and energy, power factor and frequency, and makes these values available over Modbus TCP on a 10/100 Base-TX Ethernet port.
This variant is fitted with two 200 A clip-on current transformers with a 24 mm inside diameter and 4 m wire leads, covering a current range of 0.15 A to 200 A. The wide input voltage range of 10 to 300 VAC suits measurement on both low voltage primary and medium or high voltage secondary sides, and the -P suffix in the ordering code identifies the 4 m lead version.
Two power relay outputs (Form A, 5 A at 250 VAC or 30 VDC) can be used to drive sirens or lights for alarm signalling. The meter mounts on DIN-rail and is powered from +12 to 48 VDC.
Applications
- Generator monitoring
- Switchgear distribution systems
- Energy management
| Product type: | Power meter |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP |
| Relay outputs: | 2 |
| Ports: | 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifications
| AC Power Measurement | |
|---|---|
| Wiring | 1P2W-1CT |
| Loops | 1-phase: 2 |
| Input Voltage | 10 ~ 300 V |
| Input Current | PM-3112-100-MTCP: CTØ10 mm (0.05 A ~ 60 A) PM-3112-100P-MTCP: CTØ10 mm (0.05 A ~ 60 A) PM-3112-160-MTCP: CTØ16 mm (0.1 A ~ 100 A) PM-3112-160P-MTCP: CTØ16 mm (0.1 A ~ 100 A) PM-3112-240-MTCP: CTØ24 mm (0.15 A ~ 200 A) PM-3112-240P-MTCP: CTØ24 mm (0.15 A ~ 200 A) |
| Input Frequency | 50/60 Hz |
| W Accuracy | Better than 0.5% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate | 1 Second |
| Relay Output | |
| Channels | 2 |
| Type | Power Relay |
| Contact Rating | Form A: 5 A @ 250 VAC 5 A @ 30 VDC |
| Ethernet | |
| Ports | 1x RJ45, 10/100 Base-TX |
| Protocol | Modbus TCP |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 2W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 100 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
